MDU-SSDG ギア欠陥セット

7.4.3.- 設置および保守の慣行

革新的なシステム

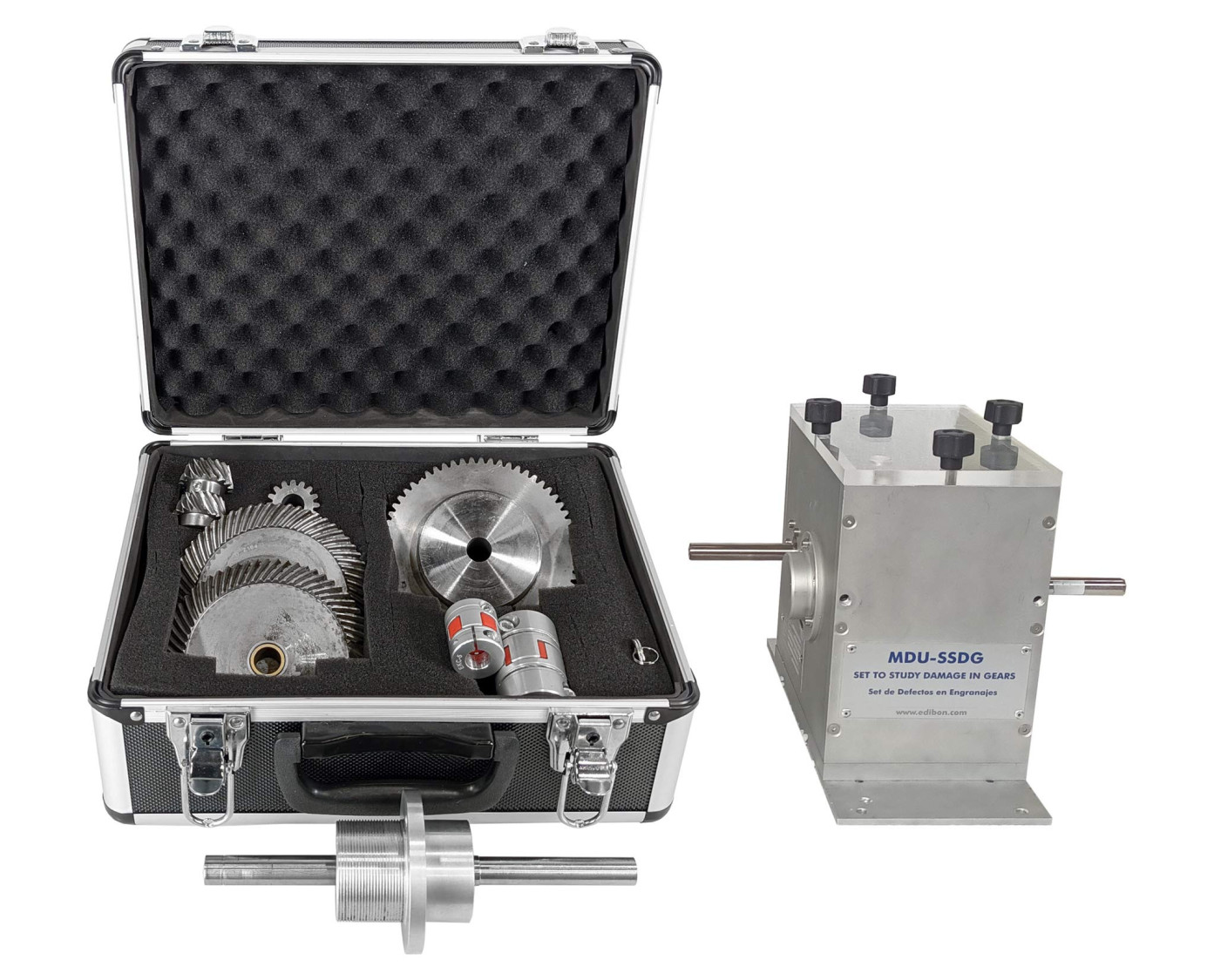

The Set to Study Damage in Gears, "MDU-SSDG", allows to study the vibrational behavior of gears with typical defects.

一般的な説明を表示

カタログ

コンテストの仕様

概要

The Set to Study Damage in Gears, "MDU-SSDG", allows to study the vibrational behavior of gears with typical defects.

For that purpose, gears with tooth defects and gears without defects are included, so a comparative study can be carried out. The gears included in the set are helical and straight-toothed gears. Due to the importance of lubrication in the vibrational signal of the unit, this may be lubricated with grease and gear oil.

The system allows to vary the gear distance and clearance between the teeth.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Testing for gear defects according to their vibration behavior (MDU-SSDG required).
Learning about the effect of the toothed gear, the lubrication used and the wheelbase and the backlash (MDU-SSDG required).
