MDU-SBD ベルトトランスミッションセット

7.4.3.- 設置および保守の慣行

革新的なシステム

The Set of Belt Drive, "MDU-SBD", allows to study the conditions that cause vibrations or slip in belts.

一般的な説明を表示

カタログ

コンテストの仕様

概要

The belt drives are noiseless drive devices, have a long life and require little maintenance provided that its design, assembly and adjustment are correct.

The Set of Belt Drive, "MDU-SBD", allows to study the conditions that cause vibrations or slip in belts.

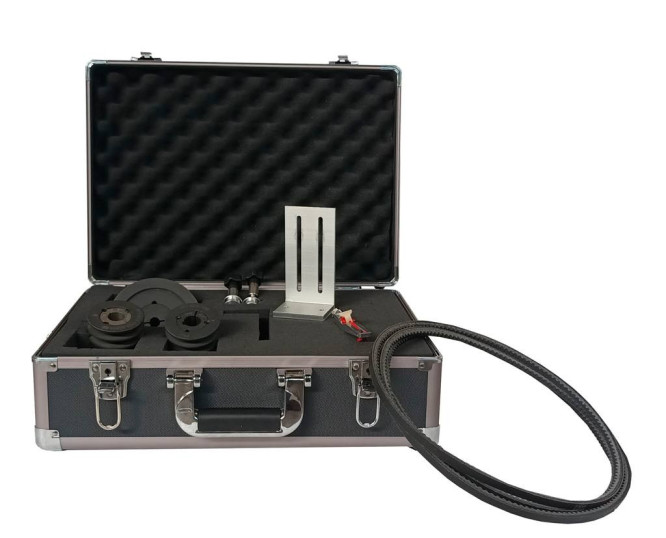

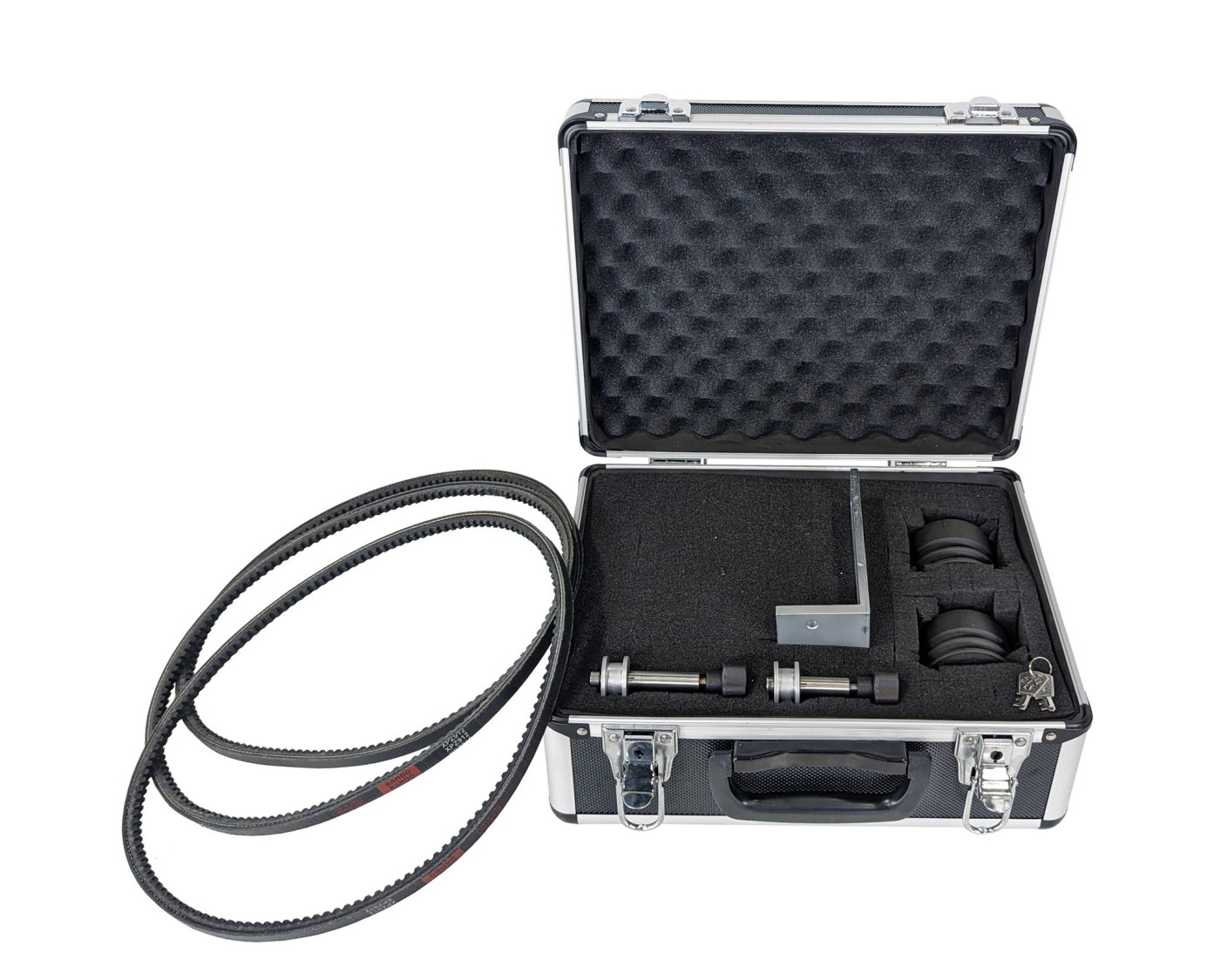

The set consists of three belts, three pulleys and a set of tensioning rollers and a belt pre-tension meter.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Understanding the importance of belt tension in vibrationbehavior.
Checking the effect of the eccentricity in pulleys and the speed in vibration behavior.
Comparison between defective and non-defective belts.
Understanding and interpreting the frequency spectra in order to differentiate between defective and non-defective belts.

必要なアイテム

補完的な機器
