RYC-CP モーター位置のPID制御・調整装置

2.4.1.- 計装と制御 6.1.1.1.- 理論的-実践的基礎 10.1.- 理論的-実践的基礎 14.2.2.- 計装と制御
POSITION CONTROL MODULE - RYC-CP

革新的なシステム

The PID Position Control and Regulation of a Motor Unit, "RYC-CP", designed by EDIBON, enables the practical study of automatic control systems through the regulation of the linear position of a moving cart driven by a DC motor.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
EMAK

Matlab用EDIBONキット

研究室

6TV
 職業教育メカトロニクス研究室
6HE
 高等教育メカトロニクス・自動化研究室
2TV
 技術教育・職業教育のための電子実験室
2HE
 高等教育電子工学研究室
11PTC
 石油研修センター研究室

関連ニュース

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
続きを読む
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
続きを読む
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
続きを読む
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
続きを読む

概要

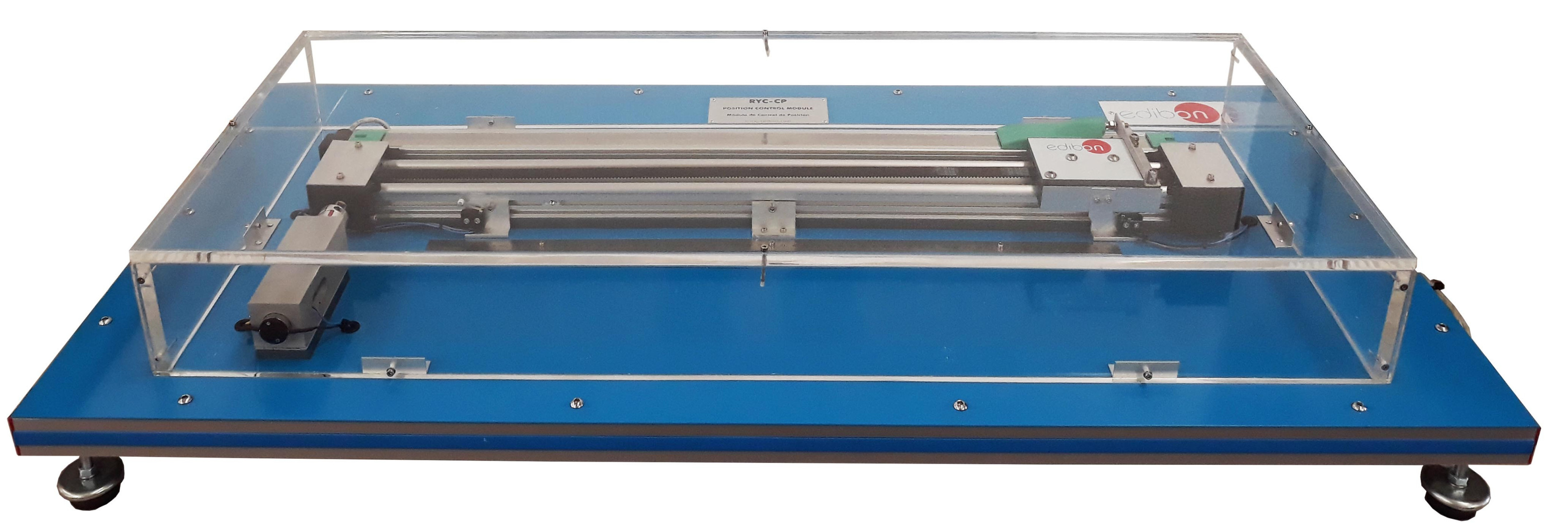

The PID Position Control and Regulation of a Motor Unit, "RYC-CP", designed by EDIBON, enables the practical study of automatic control systems through the regulation of the linear position of a moving cart driven by a DC motor.

This unit allows students and technicians to understand and apply PID control theory in a real-world environment. It consists of a base with sensors and ac­tuators, such as a DC motor, a potentiometer, and a moving cart, as well as an interface box that integrates the power supply, signal conditioning, and the necessary connections to the control system.

It is used in conjunction with the base unit "RYC" to control the position of the cart along a bar, simulating real-world linear positioning applications.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Characterization of a speed control system.
  2. PID control of the motor speed.
  3. Characterization of a position control system.
  4. PID control of the carriage position.

より実用的な練習をして、ユニットを完成させる

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  4. This unit can be used for doing applied research.
  5. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  6. Control of the RYC-CP unit process through the control interface box without the computer.
  7. Visualization of all the sensors values used in the RYC-CP unit process.
  8. Several other exercises can be done and designed by the user.
