AEL-CPSS-03S SCADAを備えた並列二発電機、二配電線路、負荷を備えた電力システム

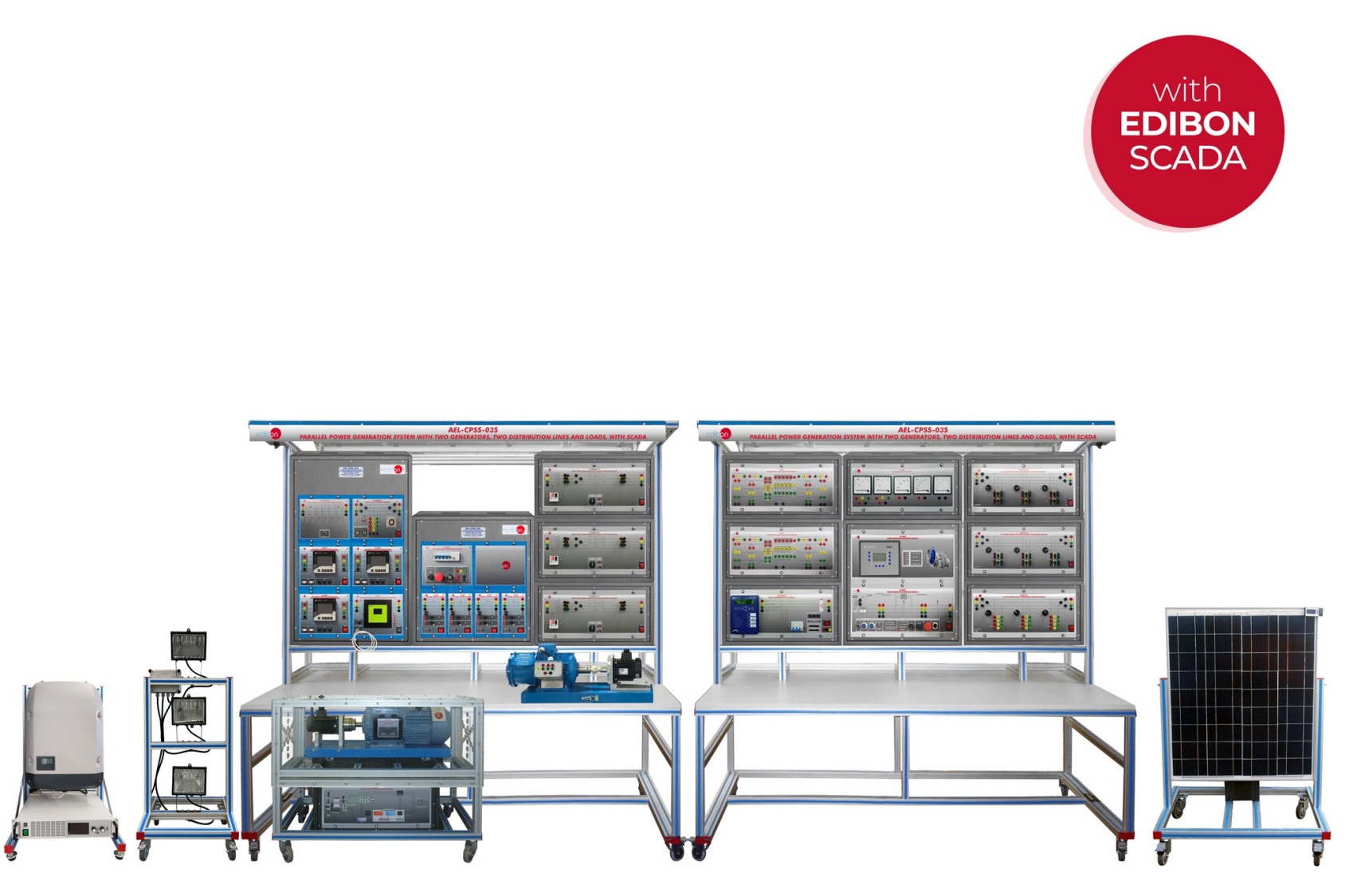

PARALLEL POWER GENERATION SYSTEM WITH TWO GENERATORS, TWO DISTRIBUTION LINES AND LOADS, WITH SCADA - AEL-CPSS-03S

革新的なシステム

The Parallel Power Generation System with two Generators, two Distribution Lines and Loads,"AEL-CPSS-03S", consists of a series of modules that will enable us to simulate the most important operations carried out in a power generation stations, power transmission, power distribution and load consumptions sytems.

一般的な説明を表示

関連ニュース

概要

A Smart Grid is an advanced electrical grid that uses analog information, digital information and communications technology to gather and act on information about the behavior of suppliers and consumers, in an automated way to improve the efficiency, reliability, economics, and sustain ability of the production and distribution of electricity.

The AEL-CPSS-03S is an application that reflects the most important operations carried out in the actual Smart Grids Power Systems.

  • Generation:

Parallel operations with different renewable energy sources.

Real time monitoring and control the demanded energy and the energy production.

Automatic control operations of synchronization.

Parallel operations of hydroelectric, wind turbine and conventional energy sources.

  • Transmission:

Transmission and distribution flow powers.

Energy losses.

Distribution transformer with voltage regulator.

Parallel distribution lines.

  • Consumption:

Active, capacitive and inductive loads.

Automatic power factor compensation.

Feeder protection relay.

This application shows different operations of an entire power system, from the energy is generated until it reaches the final consumer.

In the generation field, the students will learn how work different generation systems from three different sources: conventional energy source like carbon, fuel, gas, etc., hydroelectric source, wind source.

The AEL-CPSS-03S includes a SCADA Control System that will allows the users supervise, control and manage the generation, transmission and consumption electrical system:

  • Disconnector and circuit breakers control.
  • Data Acquisition of all electrical parameters of the system.
  • Manual and automatic control of the generators.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Study of Synchronous Machines.
  2. Study of Asynchronous Machines.
  3. Study of parallel operation with synchronous generator and the grid.
  4. Study of parallel operation with asynchronous machine and the grid.
  5. Study of parallel operation of synchronous generator and asynchronous machine.
  6. Study of micro-grids.
  7. Study of power factor compensation.
  8. Study of brushless motors.
  9. Study of transformers: step-up voltage transformer, step-down voltage transformer, energy losses, voltage regulation.
  10. Study of drop voltages in transmission lines according to the line lengths.
  11. Study of the main operations of the protection relay: phase instantaneous overcurrent element 50P, negative sequence overcurrent element 50Q, Time-overcurrent element 51P, overvoltage element 59P and many other parameters.
  12. Study of different short circuit tests: single pole, two pole, two pole to ground and three-phase short circuits.
  13. Wiring of photovoltaic system.
  14. Checking the photovoltaic system with feed to the power grid.
  15. Measurement of energy production by the photovoltaics panel.
  16. Finding the Maximum Power Point.
  17. Minimum power of the photovoltaic inverter.
  18. Losses of the power grid inverter.
  19. Visualizing the electrical parameters of the photovoltaic panel through SCADA Control System.
  20. System’s response in case of power outage on the grid.

より実用的な練習をして、ユニットを完成させる

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Visualization of all the sensors values used in the AEL-CPSS-03S unit process.
  8. Several other exercises can be done and designed by the user.
