QRSA 連続攪拌式反応器

REACTORS WITH STIRRER IN SERIES - QRSA

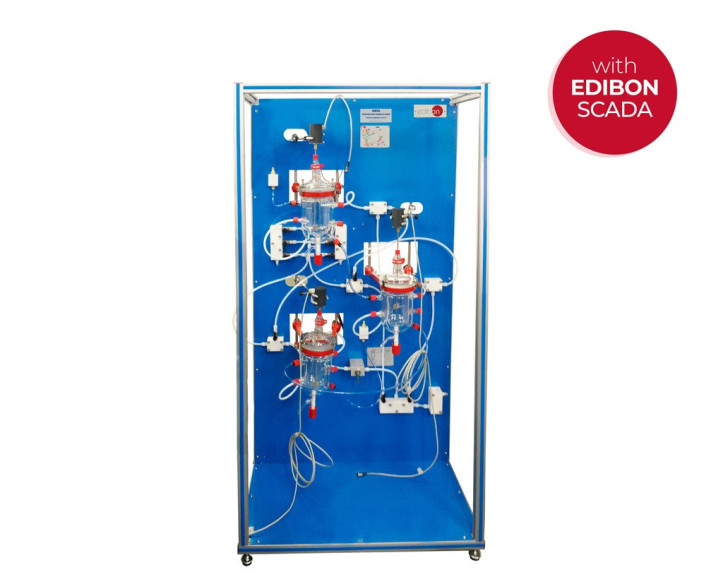

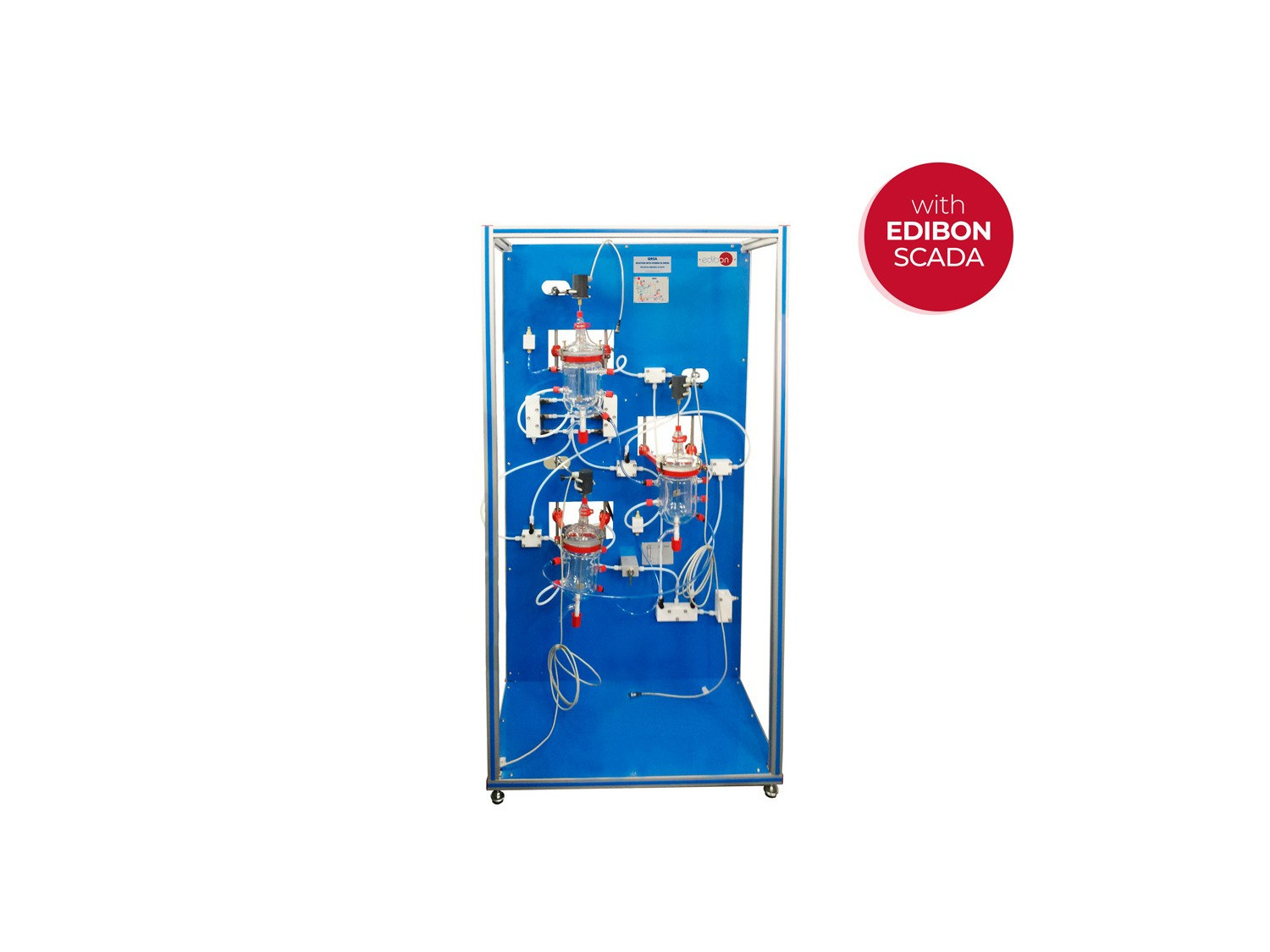

Unit: QRSA. Reactors with Stirrer in Series

REACTORS WITH STIRRER IN SERIES - QRSA

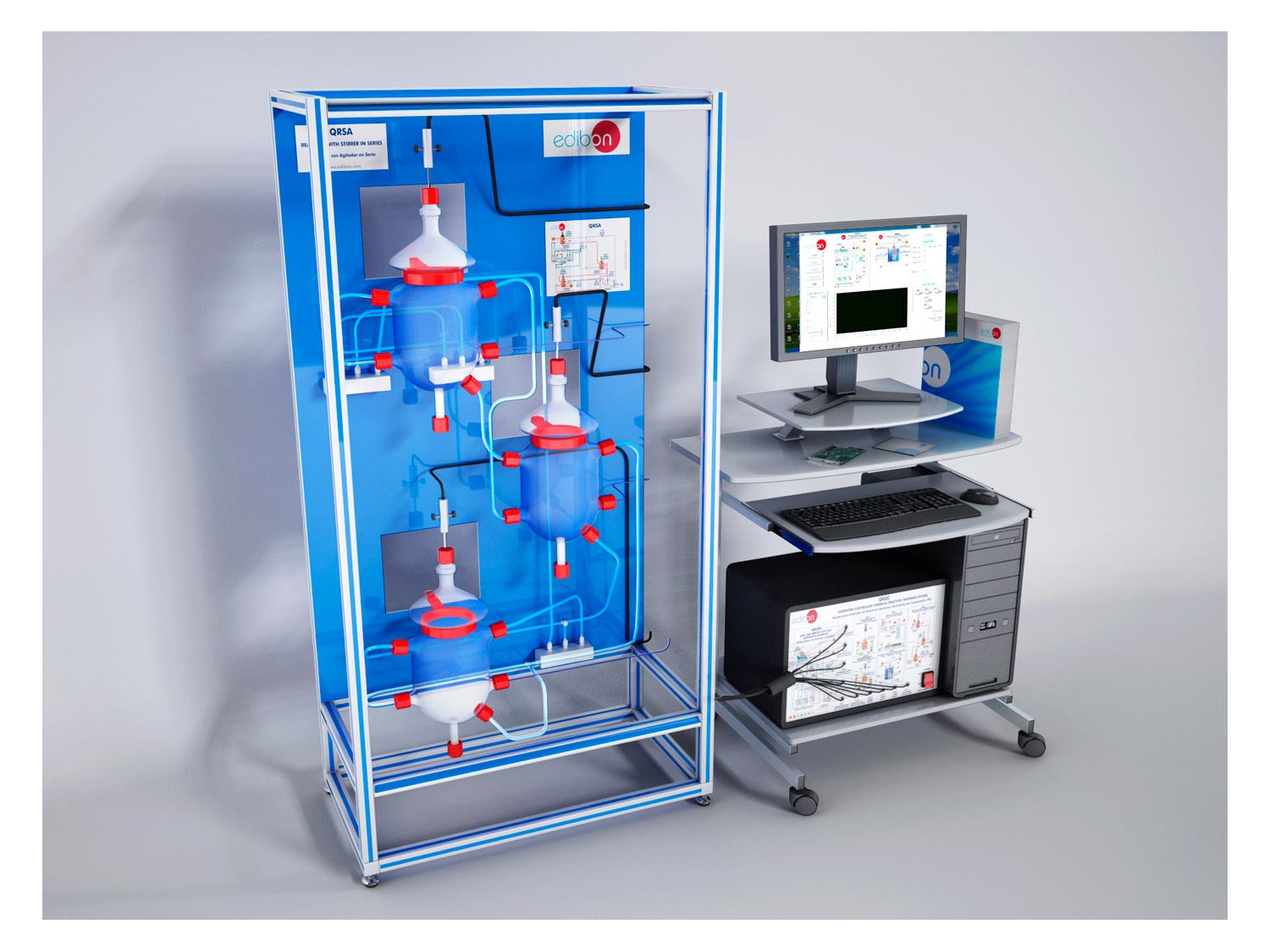

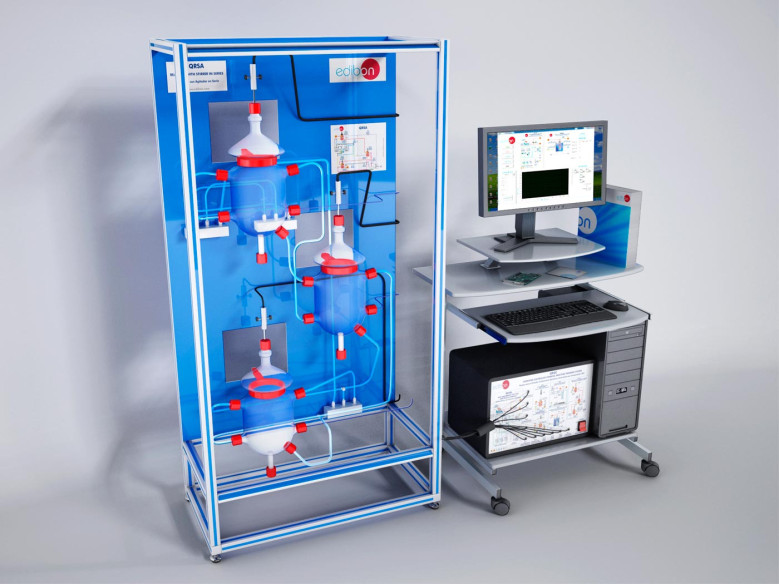

Complete QRSA Unit

REACTORS WITH STIRRER IN SERIES - QRSA
REACTORS WITH STIRRER IN SERIES - QRSA

革新的なシステム

The Series Stirred Reactors, "QRSA," designed by EDIBON, provide the ability to investigate the kinetics of liquid-liquid homogeneous reactions and conduct experiments with multiple reactors in series. This configuration allows the outlet flow of one reactor to become the inlet flow of another, optimizing processes and enabling flexible experimentation with one, two, or three reactors, facilitating a comprehensive understanding of the process.

一般的な説明を表示

概要

The Series Stirred Reactors, "QRSA," designed by EDIBON, provide the ability to investigate the kinetics of liquid-liquid homogeneous reactions and conduct experiments with multiple reactors in series. This configuration allows the outlet flow of one reactor to become the inlet flow of another, optimizing processes and enabling flexible experimentation with one, two, or three reactors, facilitating a comprehensive understanding of the process.

This unit is valuable for calculating kinetic constants, comparing theoretical and experimental conversion values, and analyzing mixing effects in chemical reactions. Additionally, it enables the calculation of the activation energy of the studied reactions, driving the advancement of knowledge in chemistry and process engineering. Furthermore, the data obtained using reactors in series can validate mathematical models, thereby improving accuracy in process engineering.

Its versatility and ability to perform various practices make it an invaluable resource in education, research, and industrial development.

To work with this reactor, the Base and Service Unit, "QRUBI," is required, which supplies the necessary reagents and thermostatic water for proper operation.

These Computer Controlled Units are supplied with EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Determination of the ionic conductivities.
  2. Continuous operation with only one reactor.
  3. Continuous operation with only one reactor with mixture effects.
  4. Continuous operation with the three reactors.
  5. Sensors calibration.

より実用的な練習をして、ユニットを完成させる

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
