FREE AND FORCED CONVECTION HEAT TRANSFER MODULE FOR TSTCC - TXC/FF

創新系統

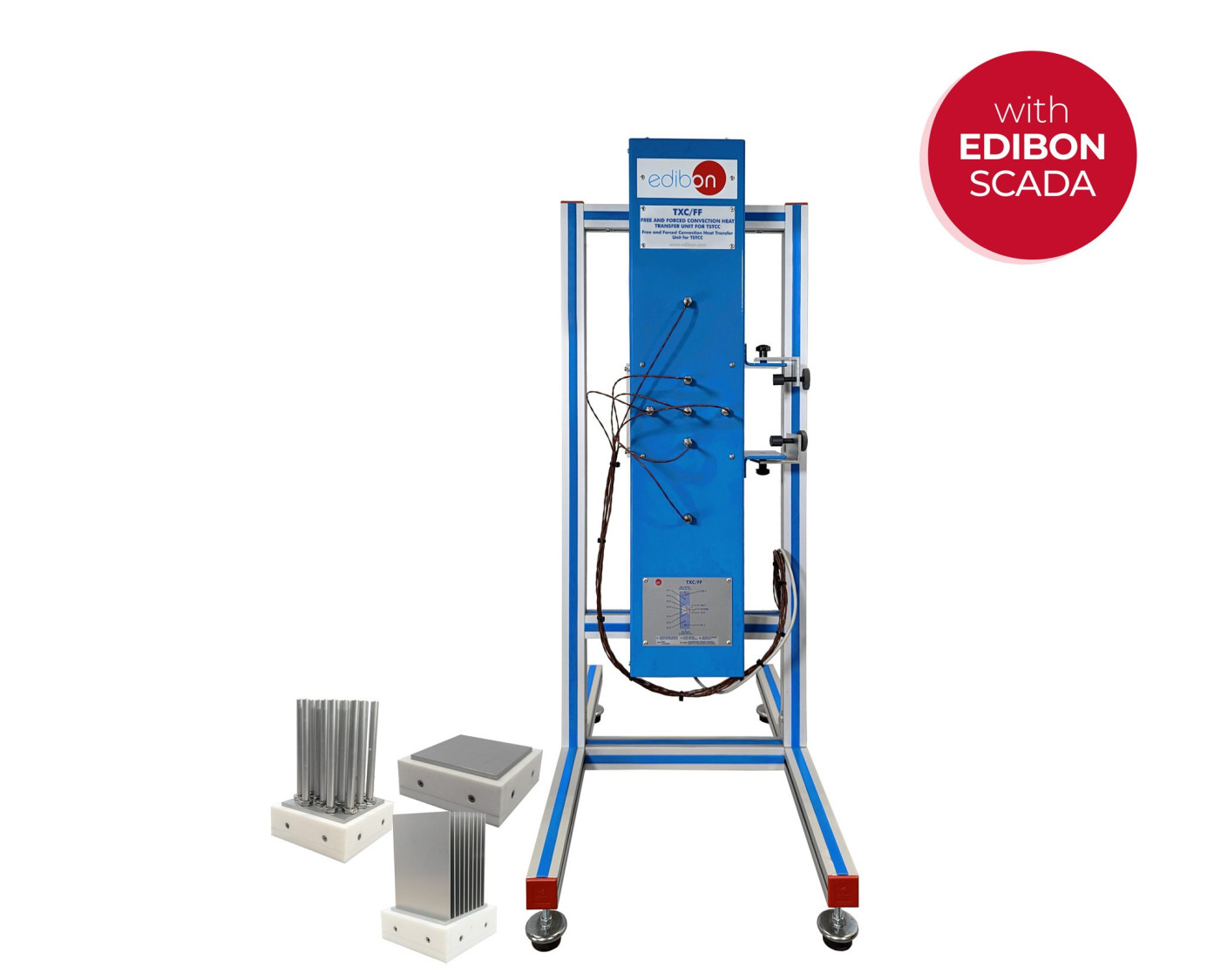

TXC/FF. This unit allows to study the efficiency of different exchangers, analyzing the heat transfer coefficients of each of the exchangers exposed to different airflows.

查看一般說明

比赛规格

扩展

交互式计算机辅助教学软件

故障模拟系统

PLC控制工业过程

带有HMI的本地/远程IIoT控制和监控

EDIBON软件开发工具包，由NI LabVIEW™提供支持

ECR

EDIBON的模块化工业系统与NI CompactRIO

ESN

EDIBON SCADA-Net

ECL

EDIBON 远程教育

化验室

11PTC

石油培训中心实验室

9TV

技术和职业教育的热力学和热力学实验室

9HE

高等教育热力学和热力学实验室

一般說明

TXC/FF. Free and Forced Convection Heat Transfer Unit for TSTCC: study of the performance of different exchangers, analysing the heat transmission coefficients of each of the exchangers exposed to different air flows.

This unit allows to study the efficiency of different exchangers, analyzing the heat transfer coefficients of each of the exchangers exposed to different airflows. A fan placed in the upper part of the tunnel allows controlling the airflow that goes through the tunnel.

練習和指導練習

手册中包含的指导实践练习

Free convection in flat surfaces.
Forced convection in flat surfaces.
Efficiency calculation of the forced convection process in flat plate.
Forced convection in a pinned exchanger: efficiency.
Forced convection in a finned exchanger: efficiency.
Temperature distribution in the additional surfaces.

与该单位进行更多实际操作

Demonstration of the basic principles of free and forced convection.
Comparison between free and forced convection.
Dependence of the heat transfer with the temperature.
Dependence of the heat transfer with the speed of the fluid.
Dependence of the heat transfer with the exchanger geometry (finned or pinned surface).
Study of the advantage of using pinned and finned surfaces in heat transfer in free convection.
Study of the advantage of using pinned and finned surfaces in heat transfer in forced convection.
Comparative study between the free convection of a horizontal surface and vertical surface.
Sensors calibration.

所需物品

TSTCC/CIB

可用的类似设备

COMBINED FREE AND FORCED CONVECTION AND RADIATION MODULE FOR TSTCC - TXC/CC

TXC/CC

Available
