AE-PLC-MACT 学習ステーション 空気圧操作とコンベアベルト

6.2.5.4.- ワークステーションアプリケーションを処理する部品
PNEUMATIC HANDLING AND CONVEYOR BELT - AE-PLC-MACT

革新的なシステム

The Pneumatic Handling and Conveyor Belt Workstation, "AE-PLC-MACT", has been designed by EDIBON to let students getting familiar with automatic systems with conveyor systems, including PLC, industrial sensors, and pneumatic actuators.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む

概要

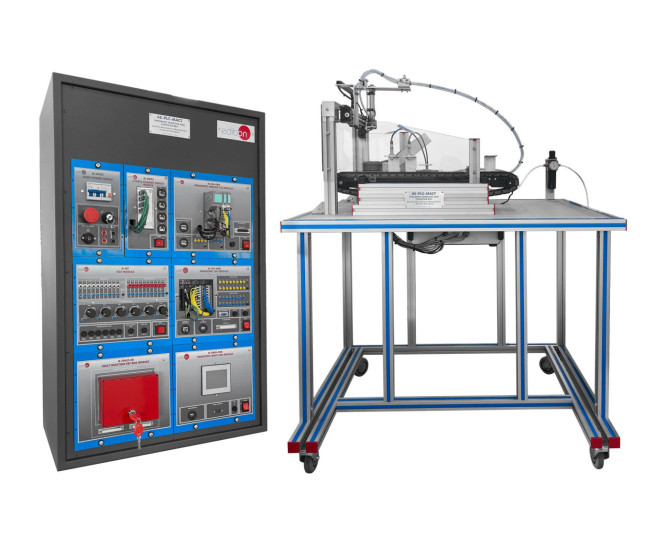

The Pneumatic Handling and Conveyor Belt, "AE-PLC-MACT", is an automatic handling station with a conveyor system commanded by a PLC. The "AE-PLC-MACT" is composed of a pneumatic handling system that uses vacuum technology to move pieces from the input area to the conveyor system or vice versa.

The "AE-PLC-MACT" pneumatic station consists of:

  • DC conveyor belt with servomotor, which allows to control the speed, position and direction of rotation.
  • Part sensors to detect the part and stop the belt to place another part.
  • Pneumatic system for moving parts using vacuum technology to pick them up.
  • PLC that automates the process.
  • Removable key switch to turn the equipment on or off.
  • Control panel with mushroom type stop switch, stop start buttons, manual and automatic mode, indicator lights.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Introduction to Flexible Manufacturing System (FMS).
  2. Introduction to pneumatics and electro-pneumatics.
  3. Configuration of a pneumatic application.
  4. Introduction to vacuum technology.
  5. Study of the sensor detection.
  6. Manual control of a handling system.
  7. Automatic control of a handling system.
  8. Modification of the parameters of the handling process.
  9. Study and analysis of the faults inserted in the process with the fault generation module.

より実用的な練習をして、ユニットを完成させる

  1. Optimization of process time.

必要なアイテム

推奨される追加アイテム

利用可能な類似の機器
