Today we would like to tell you about our latest installation in Indonesia. At Institut Teknologi Sepuluh Nopember we have installed the following equipment. Our engineers came to the centre to install the equipment and explain how it works to the people responsible for using it.
EDPAB 2重効果弁膜式蒸発装置
革新的なシステム
The "EDPAB" unit, designed by EDIBON, allows to observe and control a serial, parallel or double effect evaporation process.
関連ニュース
概要
The Double Effect Rising Film Evaporator, "EDPAB", designed by EDIBON, allows to observe and control a serial, parallel or double effect evaporation process.
The unit consists of two evaporators with a single glass tube, allowing the student to observe all the processes that take place in the unit.
The solution to be concentrated enters the evaporator and, as it flows along the tube, it is progressively evaporated since an annular flow or rising film flow is generated internally, keeping that film thanks to the friction induced by the vapour nucleus, which moves at high speed with regard to the liquid film. The supply enters the rising tube in liquid state for a short distance, receiving heat from the steam.
Steam introduced in the first evaporator can be introduced again in the second evaporator (serial operation mode) or either two different steam flows can be introduced (parallel operation mode).
The unit also allows the steam generated in the first evaporator to be introduced as heating medium in the second evaporator and the concentrated product obtained can be used as supply for the second column. Thus, one of the main premises of a double effect evaporator, which is the economy of the heat employed, can be evaluated.
演習と指導の慣行
マニュアルに含まれるガイド付き実習
- Heating efficiency calculation.
- Sugared solution concentration.
- Evaporation velocity determination.
- Study of the evaporation velocity in function of the working conditions.
- Study of the relation between condensed and evaporated product.
- Study of the mass balance of the solute.
- Study of the mass balance of the solvent.
- Energy balance of the evaporation unit.
- Energy balance of the tubular refrigerator.
- Heat transfer global coefficient determination.
- Heat transfer coefficient determination of a tubular refrigerator.
- Study of the mass balance of the solute in one column.
- Fruit juices and vegetable extracts concentration.
- Concentrated milk obtaining.
- Efficiency determination of the steam used in the process.
- Steam generator efficiency determination.
- Investigation of effect of varying process parameters such as:vacuum, flow rate, temperature, recycle rate.
利用可能な類似の機器
11.1.2.- 蒸発
EPAC
The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.The rising or falling film evaporators are very useful if high...
11.1.2.- 蒸発
EDPAC
コンピューター制御2重効果弁膜式蒸発装置
The Computer Controlled Double Effect Rising Film Evaporator, "EDPAC", designed by EDIBON, allows to observe and control a serial, parallel or double effect evaporation process.The unit consists of two evaporators with a single glass tube,...
11.1.2.- 蒸発
EPAB
弁膜式蒸発装置
The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.Basically, the unit consists of the following circuits:The feed...
11.1.2.- 蒸発
EPDC/C
コンピューター制御下膜式蒸発装置
The objective of the evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations. The rising or falling film evaporators are very useful...
補完的な機器
11.1.2.- 蒸発
CGE/0.4/CTS
Computer Controlled and Touch Screen 0.4 l/h Carver-Greenfield Evaporator
The Computer Controlled and Touch Screen 0.4 l/h Carver-Greenfield Evaporator, "CGE/0.4/CTS", is able to show, for further investigation and study, the removal of dissolved solids from a liquid stream composed of Gamma-Valerolactone (GVL) and...
11.1.2.- 蒸発
EPAC
コンピューター制御弁膜式蒸発装置
The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.The rising or falling film evaporators are very useful if high...
11.1.2.- 蒸発
EPAB
弁膜式蒸発装置
The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.Basically, the unit consists of the following circuits:The feed...
11.1.2.- 蒸発
EPDC/C
コンピューター制御下膜式蒸発装置
The objective of the evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations. The rising or falling film evaporators are very useful...
11.1.2.- 蒸発
EDPAC
コンピューター制御2重効果弁膜式蒸発装置
The Computer Controlled Double Effect Rising Film Evaporator, "EDPAC", designed by EDIBON, allows to observe and control a serial, parallel or double effect evaporation process.The unit consists of two evaporators with a single glass tube,...
11.1.2.- 蒸発
EPFC

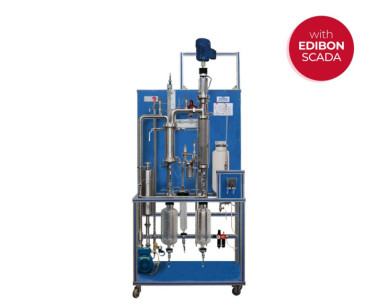

Computer Controlled Thin Film Evaporator
