FME22 ベンチュリ、ベルヌーイ・キャビテーション実験装置

8.1.4.- 静水圧
VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

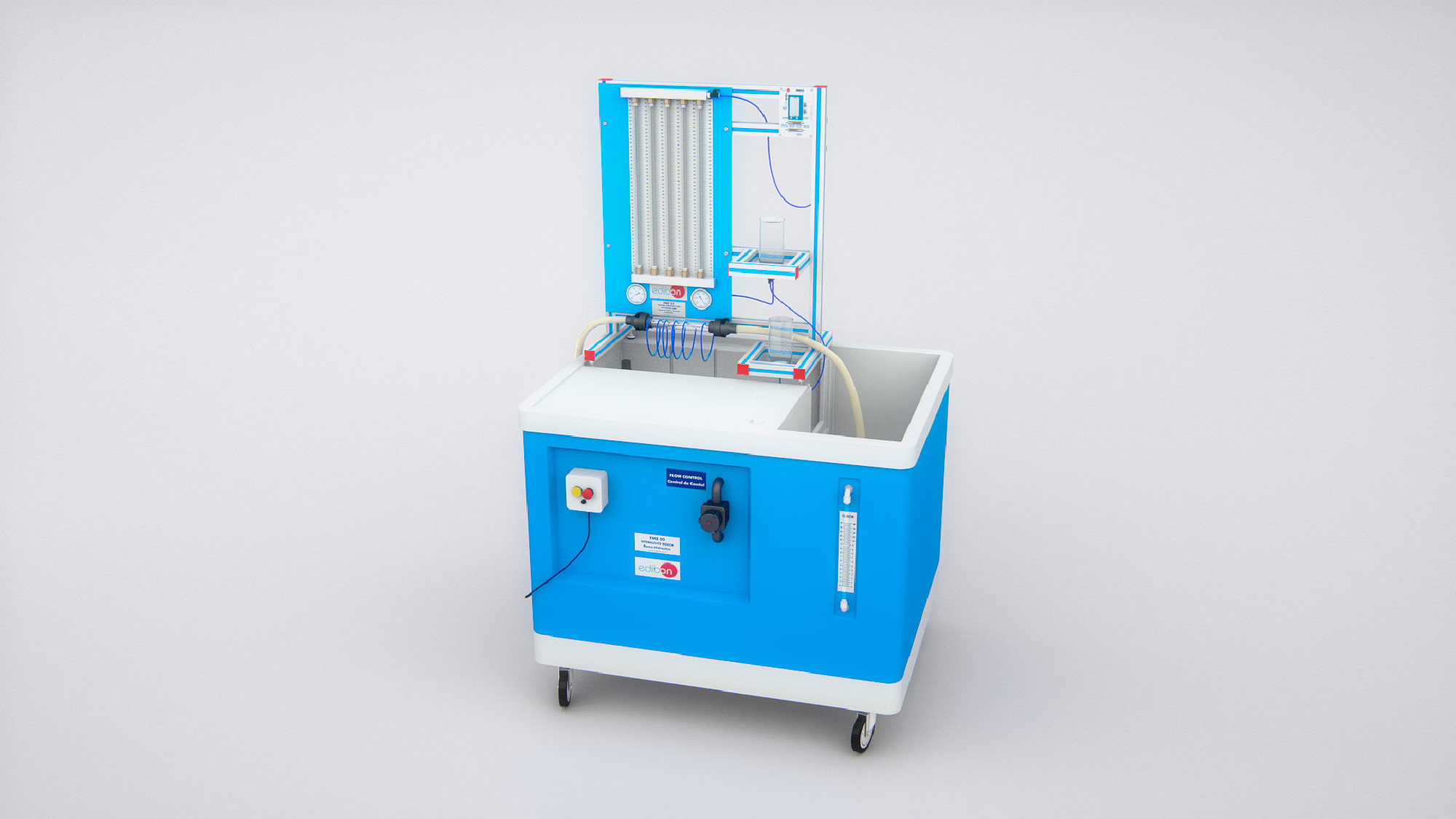

Complete FME22 Unit

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

FME22 Unit with service unit FME00

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22
VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

革新的なシステム

The Venturi, Bernoulli and Cavitation Unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.
