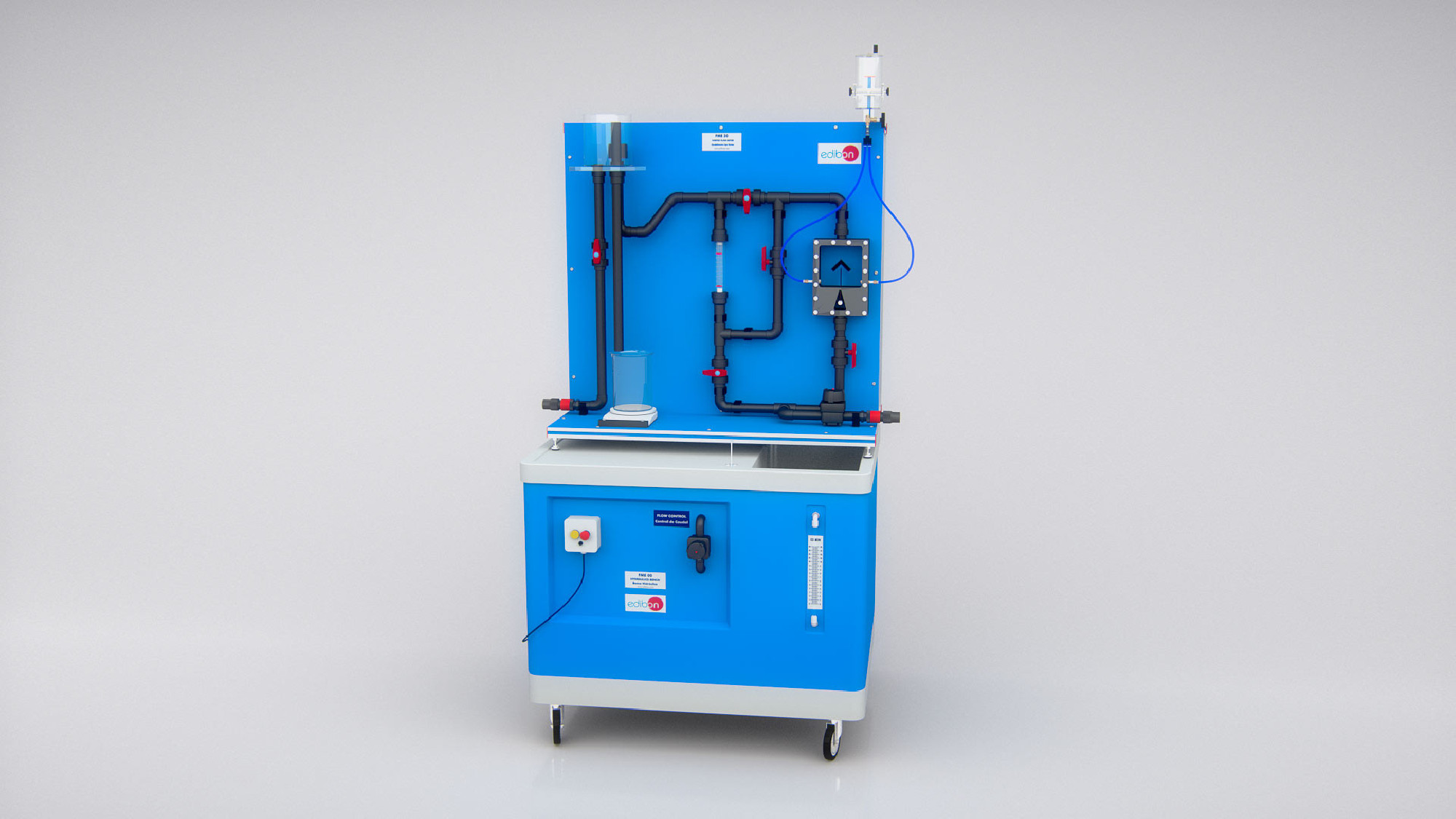

Complete FME30 Unit

TRANSPARENT VORTEX FLOW METER - FME30

FME30 Unit with service unit FME00

TRANSPARENT VORTEX FLOW METER - FME30
TRANSPARENT VORTEX FLOW METER - FME30

革新的なシステム

The Transparent Vortex Flow Meter, "FME30", designed by EDIBON allows to perform studies and experiments of different volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.

一般的な説明を表示

関連ニュース

概要

The Transparent Vortex Flow Meter, "FME30", designed by EDIBON allows to perform studies and experiments of different volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.

This unit includes two continuous and two intermittent methods to carry out the experiments.

The continuous methods include a vortex flowmeter and a variable-area flowmeter (or rotameter). A series of oscillating vortices, where the oscillating frequency is proportional to the flow velocity, are generated in the vortex flowmeter.

The vortex flow meter included is transparent so that the measuring principle can be observed inside. The voltage proportional to the number of vortices generated is measured through an electric console.

Intermittent methods include the measurement of volumetric and mass flows. A precision scale is used to measure the mass flow and compare the measurements.

The water supply may be provided either from the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Study and experiments with a transparent vortex flow meter.
  2. Study and experiments with a variable area flow meter.
  3. Measurement of volumetric volume flow rate.
  4. Measurement of gravimetric volume flow rate.
  5. Comparison of methods on several volumetric and mass flow measurements.
  6. Flow meters calibration.
  7. Comparison among different flowmeters.
