M1/KIT 直流回路キット（DC）

2.2.- 回路アセンブリ用キット
DIRECT CURRENT (DC) CIRCUITS KIT - M1/KIT

革新的なシステム

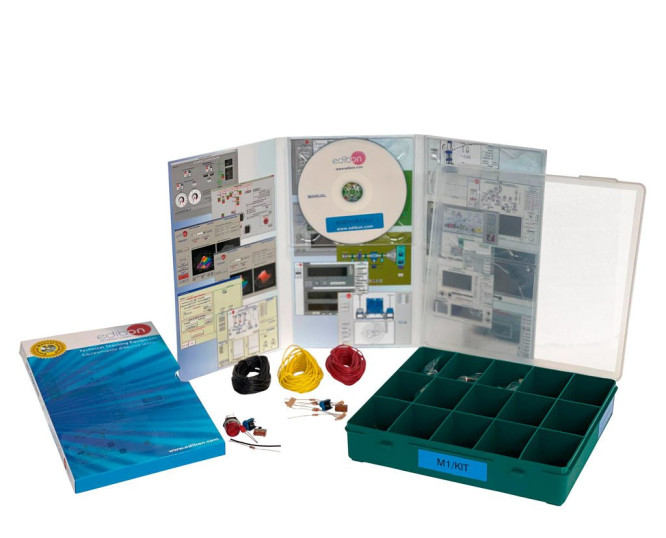

With the Direct Current (DC) Circuits Kit, "M1/KIT", designed by EDIBON, you can begin to study the basic principles of direct current.

一般的な説明を表示

拡張

ICAI

対話型コンピューター支援命令ソフトウェア

研究室

2TV
 技術教育・職業教育のための電子実験室

関連ニュース

Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
続きを読む

概要

With the Direct Current (DC) Circuits Kit, "M1/KIT", designed by EDIBON, you can begin to study the basic principles of direct current.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Measurement managing and checking instruments:

  1. Electronic instrumentation operation. Use of multimeter.
  2. Faults study of F1 in Resistance circuit.
  3. Faults study of F2 in Resistance circuit.
  4. Theoretical/practical exercises.

Ohm’s Law:

  1. Ohm’s Law verification.
  2. Power calculation.
  3. Theoretical/practical exercises.

Resistors: characteristics and types:

  1. Resistor measurements.
  2. Faults study of F1 in Resistors circuit.
  3. Faults study of F2 in Resistors circuit.
  4. Theoretical/practical exercises.

Resistors association and the Wheatstone Bridge:

  1. Voltage and current measurement in a circuit with resistors connected in series.
  2. Parallel configuration study.
  3. The Wheatsto ne Bridge.
  4. Faults study of F1 in Series Resistors circuit.
  5. Faults study of F2 in Parallel Resistors circuit.
  6. Faults study of F1 in Wheatstone Bridge circuit.
  7. Faults study of F2 in Wheatstone Bridge circuit.
  8. Theoretical/practical exercises.

Kirchoff’s laws:

  1. Kirchoff’s first law.
  2. Kirchoff’s second law.
  3. Fault study using Kirchoff’s law.
  4. Theoretical/practical exercises.
もっと見る

より実用的な練習をして、ユニットを完成させる

  1. Voltage/Current dividers.
  2. Batteries and Switches.
  3. Power source in series and parallel.
  4. Several other exercises can be done and designed by the user.

必要なアイテム

利用可能な類似の機器

DIRECT CURRENT (DC) CIRCUITS MODULE - N-M1
  • N-M1
Available
14.2.1.1.- 基本的な電気法の概念
N-M1
Direct Current (DC) Circuits Module
For the correct understanding of electronics it is necessary to know some fundamental laws and theorems such as Ohm’s Law, Kirchhoff’s Laws and other simple theorems of initiation to D.C. circuits.With Direct Current (D.C.) Circuits Module,...
