FME27 軸流タービン

8.1.7.- 油圧機械: タービン
AXIAL FLOW TURBINE - FME27

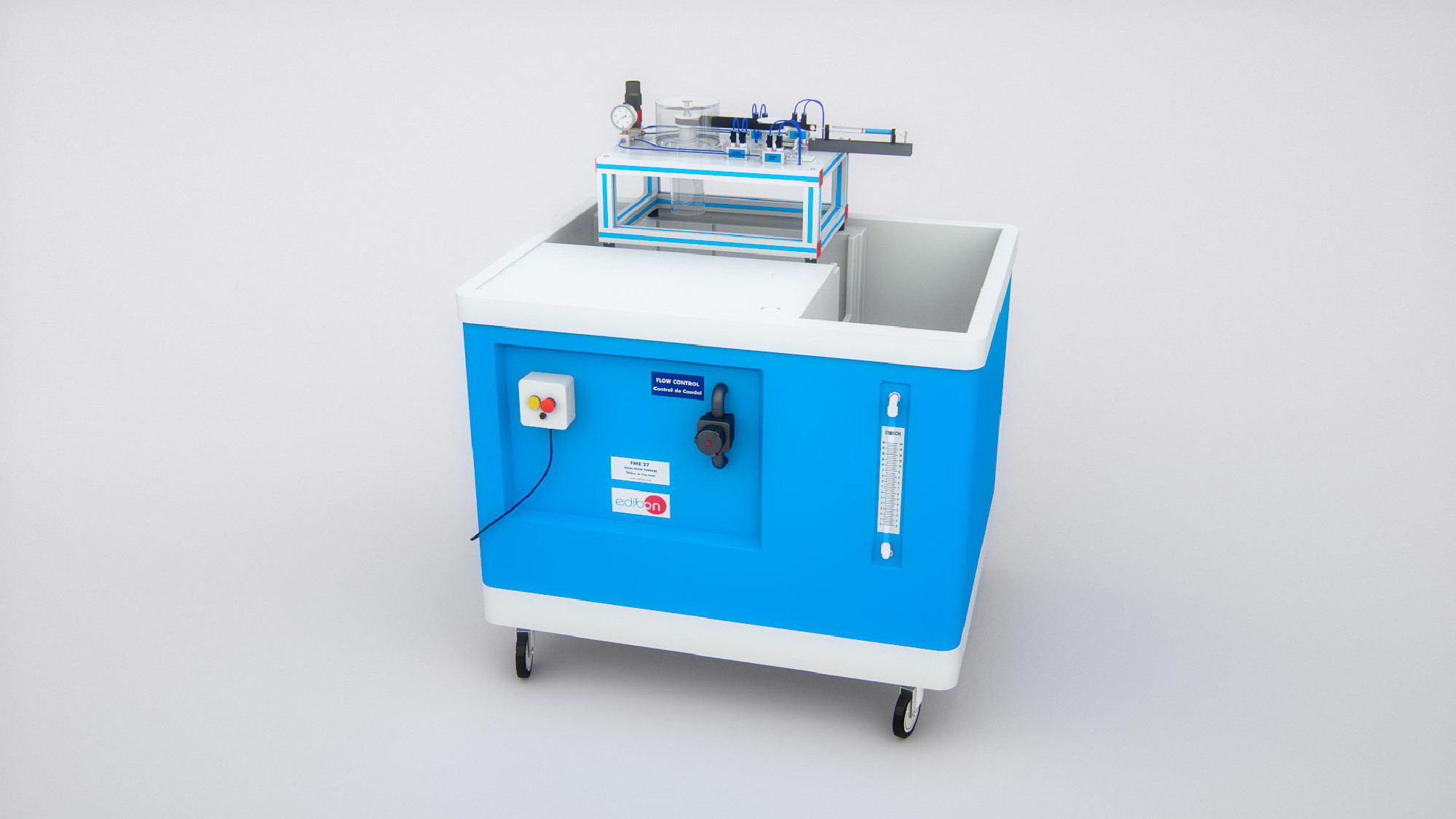

Complete FME27 Unit

AXIAL FLOW TURBINE - FME27

FME27 Unit with service unit FME00

AXIAL FLOW TURBINE - FME27
AXIAL FLOW TURBINE - FME27

革新的なシステム

With the Axial Turbine, "FME27", designed by EDIBON, it is possible to study and to understand the axial flow turbines which, unlike the radial flow turbines, the working fluid is parallel to the axis of rotation.

一般的な説明を表示
カタログ カタログ
コンテストの仕様
リクエスト情報

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
MSAC

モジュラーな取得および制御システム

研究室

8TV
 技術教育・職業教育のための流体力学研究室
8HE
 高等教育用流体力学研究室
11PTC
 石油研修センター研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
続きを読む

概要

With the Axial Turbine, "FME27", designed by EDIBON, it is possible to study and to understand the axial flow turbines which, unlike the radial flow turbines, the working fluid is parallel to the axis of rotation.

This unit consists of an axial turbine in miniature with eight inclined nozzles at 20° and 30° degrees with respect to the perpendicular direction at the rotating axis.

The pallets of the turbine runner are clearly visible through the transparent tank.

A band brake connected to one load cell varying the load given to the turbine by means of a connection device.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Flow calculation.
  2. Determination of the discharge coefficient of the nozzle.
  3. Determination of the curve N (Q,n), Pm (Q, n) and h (Q, n), (20° nozzle).
  4. Determination of the curve N (Q,n), Pm (Q, n) and h (Q, n), (30° nozzle).
  5. Adimensional analysis.
