QRCC 用于蔗糖水解的固定床催化反应器，计算机控制（PC）

11.2.- 化学反应器
COMPUTER CONTROLLED CATALYTIC REACTORS - QRCC

Unit: QRCC. Computer Controlled Catalytic Reactors

COMPUTER CONTROLLED CATALYTIC REACTORS - QRCC

Complete QRCC Unit

COMPUTER CONTROLLED CATALYTIC REACTORS - QRCC
COMPUTER CONTROLLED CATALYTIC REACTORS - QRCC

創新系統

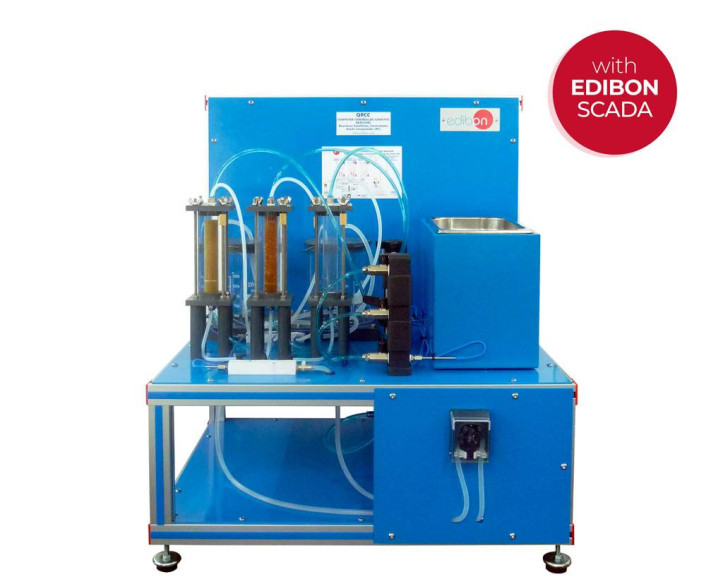

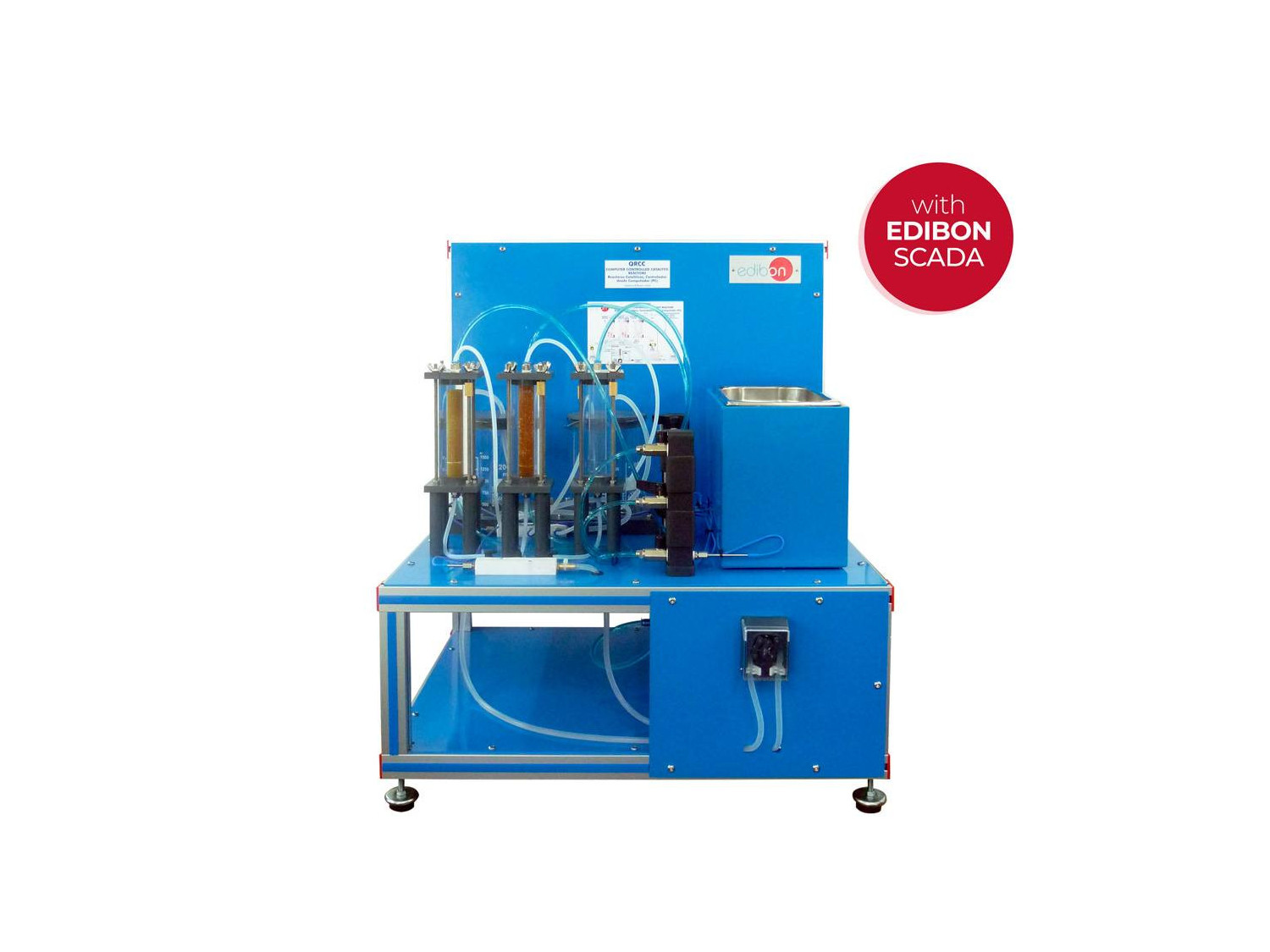

The Computer Controlled Fixed-Bed Catalytic Reactors for Sucrose Hydrolysis, "QRCC", designed by EDIBON, enables in-depth study of catalytic processes in the liquid phase through a fixed-bed reactor system, where the continuous hydrolysis of sucrose is performed using a solid catalyst immobilized inside the reactor.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
FSS

故障模拟系统
PLC

PLC控制工业过程
PLCHMI

带有HMI的本地/远程IIoT控制和监控
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
ECR

EDIBON的模块化工业系统与NI CompactRIO
ESN

EDIBON SCADA-Net
ECL

EDIBON 远程教育

化验室

11TV
 技术和职业教育化学工程实验室
11HE
 高等教育化学工程实验室
11PTC
 石油培训中心实验室

相關新聞

Setting up at Higher Colleges of Technology on the Baniyas Campus
Setting up at Higher Colleges of Technology on the Baniyas Campus
Today, we want to share the installation we have completed at the Higher Colleges of Technology on the Baniyas Campus. We have equipped the campus with several of our cutting-edge chemical engineering equipment, including our Computer Controlled Bench Top Cooling Tower (TTEC), Computer Controlled...
阅读更多
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
阅读更多
Set up at Universidad de Huelva (Spain)
Set up at Universidad de Huelva (Spain)
Glad to announce one of our latest set-ups at Universidad de Huelva, with a complete installation for the Agroforestry Science department's students and researchers, including AFTC, QRCC, TFRC or MCEN, among others. We are proud to contribute in the technical preparation of future agroforestry...
阅读更多

一般說明

Sucrose hydrolysis is a reversible reaction widely used at the industrial level to produce glucose and fructose. This process benefits greatly from catalysis, both chemical and enzymatic, and is a representative example of using fixed-bed reactors in continuous processes.

The Computer Controlled Fixed-Bed Catalytic Reactors for Sucrose Hydrolysis, "QRCC", designed by EDIBON, enable practical, controlled study of the hydrolysis reaction under industrial-like conditions. The design of the Computer Controlled Fixed-Bed Catalytic Reactors for Sucrose Hydrolysis, "QRCC", facilitates the analysis of different types of catalysis (chemical and enzymatic) and the impact of operational variables such as temperature, flow rate, and catalyst particle size.

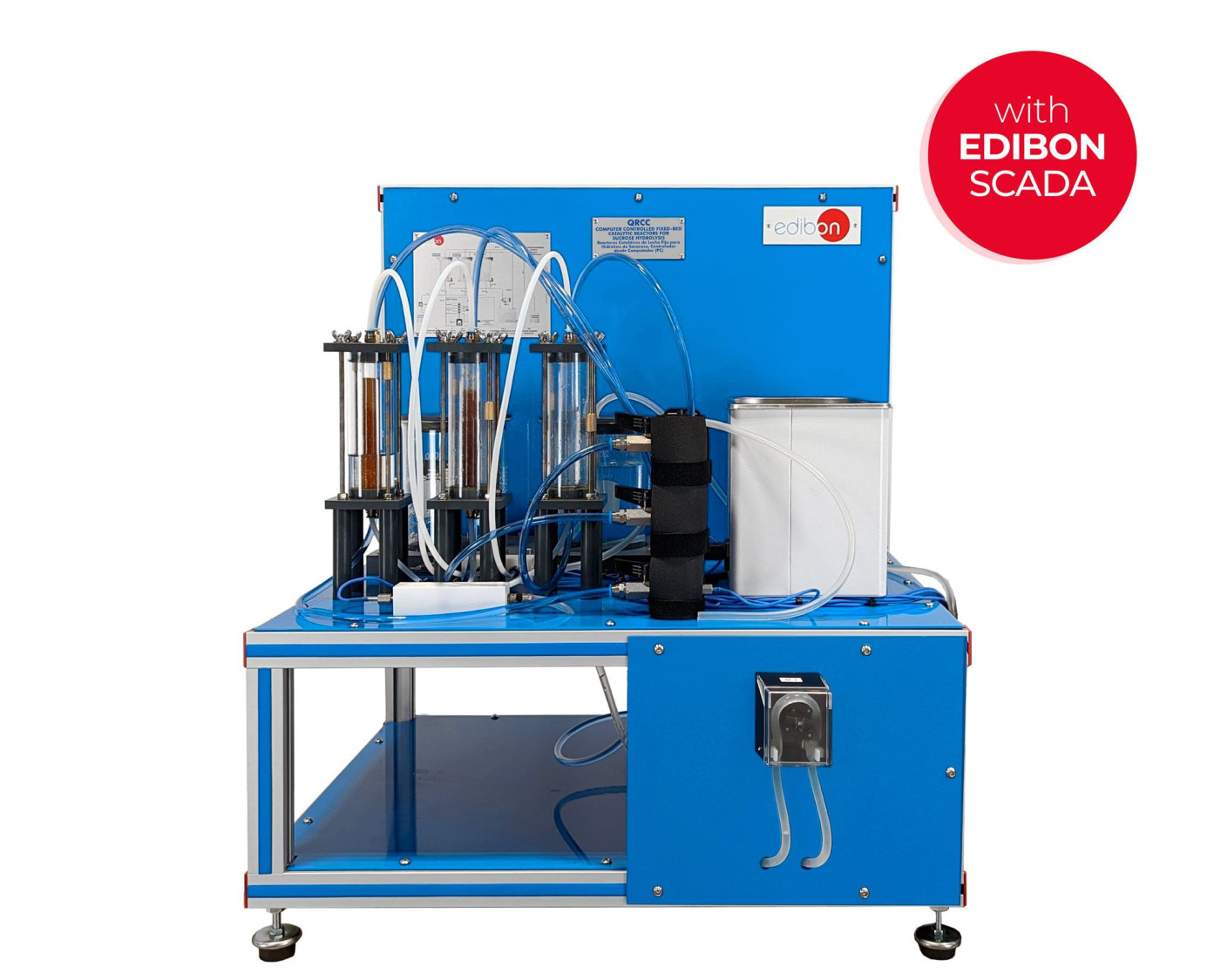

The unit includes three fixed-bed reactors: two dedicated to chemical catalysis, using the same catalyst (ion-exchange resins) with different particle sizes, and a third reactor for enzymatic catalysis, utilizing an immobilized enzyme to carry out sucrose hydrolysis.

The reaction occurs at controlled temperatures between 50 °C and 60 °C, maintained by a hot-water recirculation system through jacketed reactors. Temperature is precisely regulated via PID control managed through the unit software.

Sucrose solution feeding is performed with a variable-speed peristaltic pump, also software-controlled. The resulting solution is collected in a final-product flask and can be analyzed with a spectrophotometer integrated into the system and connected to the unit’s interface.

Optionally, the Computer Controlled Flow Injection Analysis (FIA) Unit, "QRCC-IF" can be included, allowing continuous measurement of the reaction conversion degree.

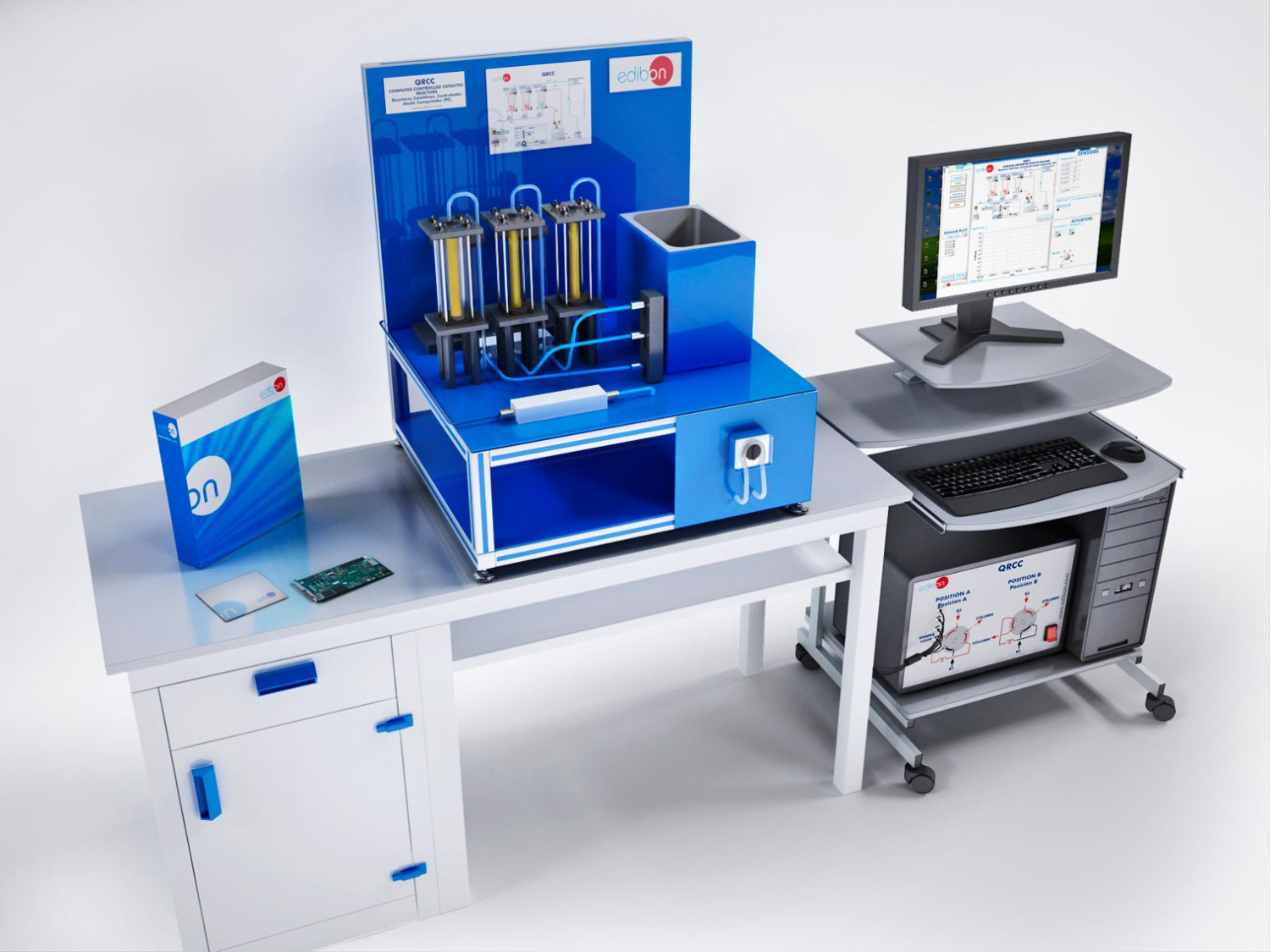

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
