UNSTEADY STATE HEAT TRANSFER MODULE FOR TSTCC - TXC/EI

INNOVATIVE SYSTEME

The Transient Heat Transfer Unit for TSTCC, "TXC/EI," allows the study of heat transfer under unsteady-state conditions. It investigates transient conduction with convection.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

FSS

Fehlersimulationssystem

PLC

SPS Industrielle Prozesssteuerung

PLCHMI

Lokale/Remote IIoT-Steuerung und -Überwachung mit HMI

ELK

EDIBON Softwareentwicklungskit, Powered by NI LabVIEW™

ECR

Modulares Industriesystem von EDIBON mit NI CompactRIO

ESN

EDIBON SCADA-Net

ECL

EDIBON Cloud Lernen

Laboratorien

11PTC

Labor für Petroleum Training Center

9TV

Labor für Thermodynamik und Thermotechnik für die technische und berufliche Bildung

9HE

Thermodynamik- und Wärmetechniklabor für die Hochschulausbildung

ALLGEMEINE BESCHREIBUNG

The Transient Heat Transfer Unit for TSTCC, "TXC/EI," allows the study of heat transfer under unsteady-state conditions. It investigates transient conduction with convection.

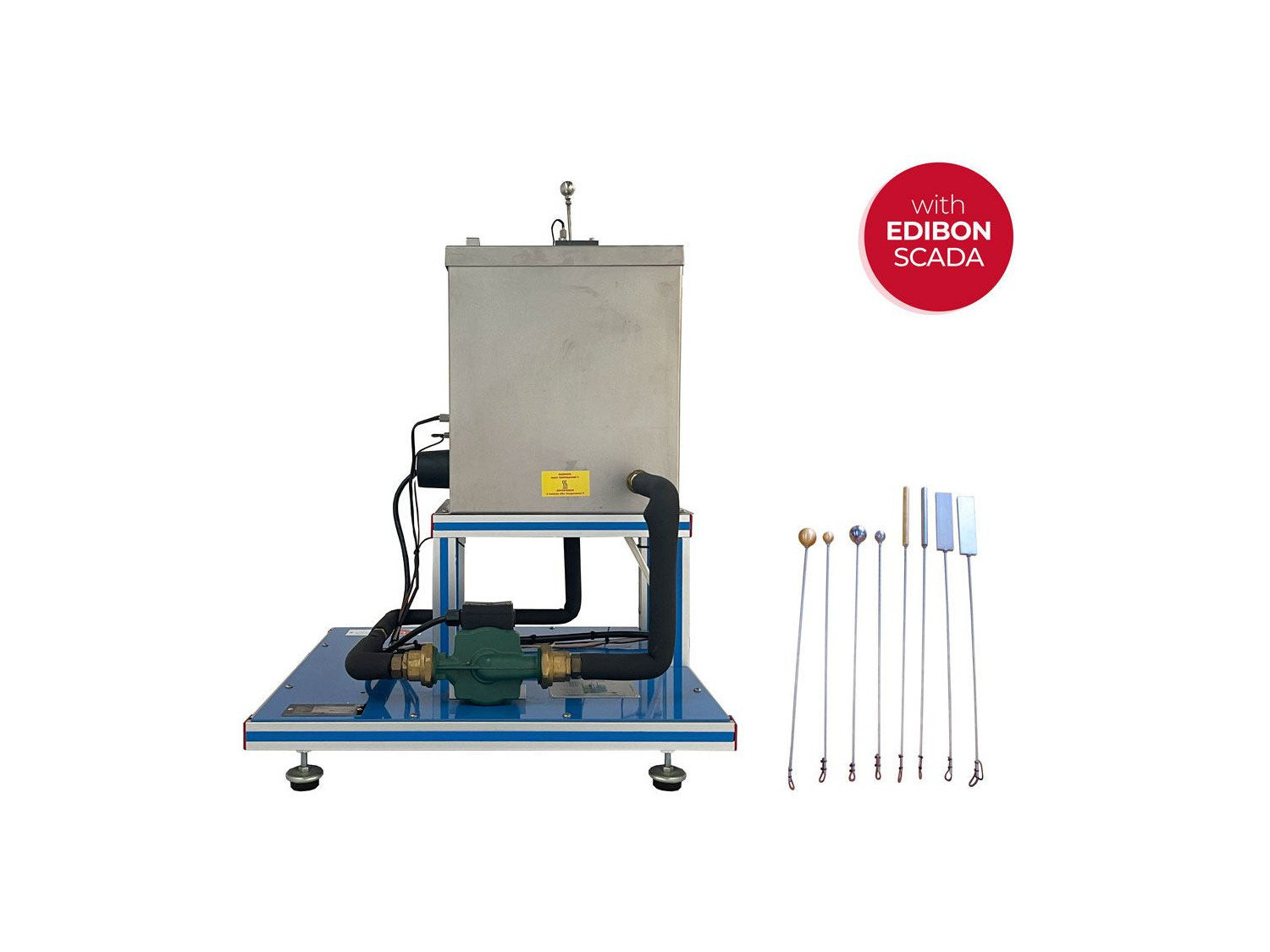

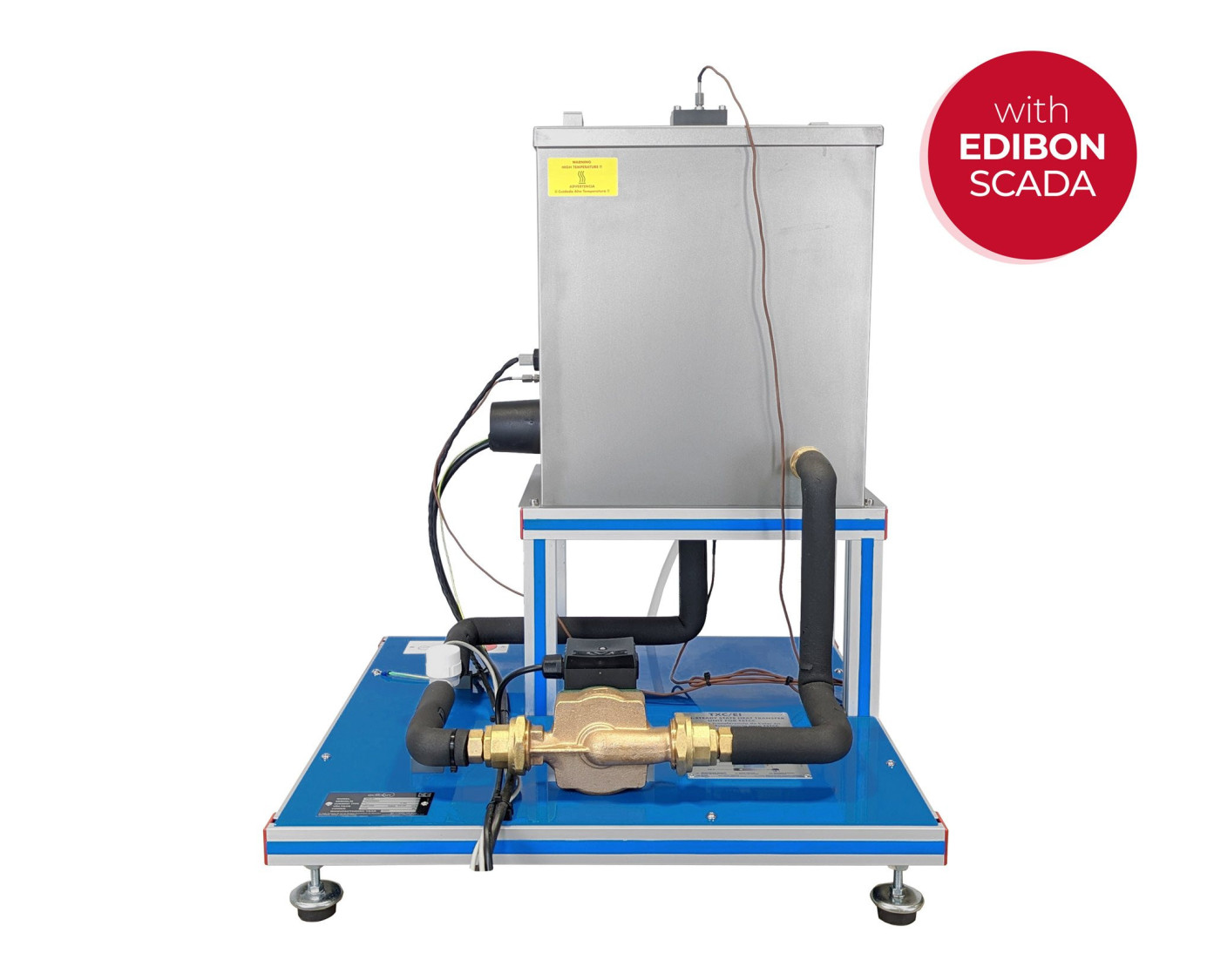

Bench-top unit designed to allow practices and exercises to be performed in unsteady state heat transfer.

It studies the transient conduction with convection. Using different shapes (rectangular slabs, spheres and cylinders) of different materials, the temperature of other shapes and materials can be predicted.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Predicting temperature at the center of a cylinder using transient conduction with convection.
Predicting the conductivity of a similar shape constructed from a different material.
Conductivity and temperature dependence on volume.
Conductivity and temperature dependence on surrounding temperature T∞.
Sensors calibration.

ERFORDERLICHE ELEMENTE

TSTCC/CIB
