ALLGEMEINE BESCHREIBUNG

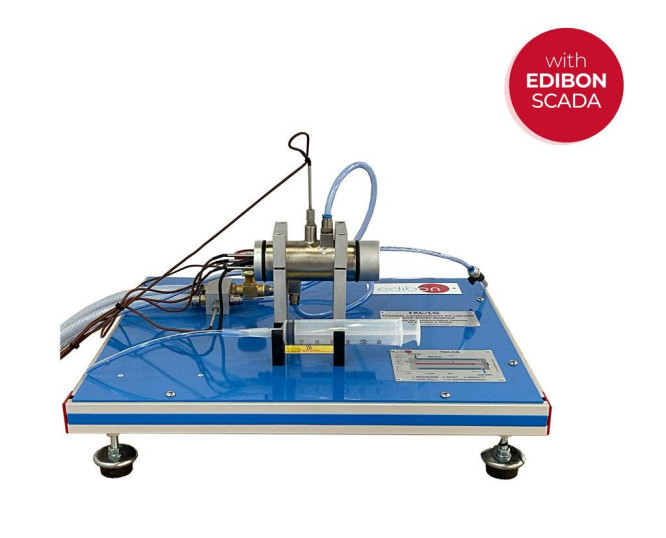

TXC/LG. Thermal Conductivity of Liquids and Gases Unit for TSTCC: study of the thermal conductivity of any gas or liquid compatible with building materials.

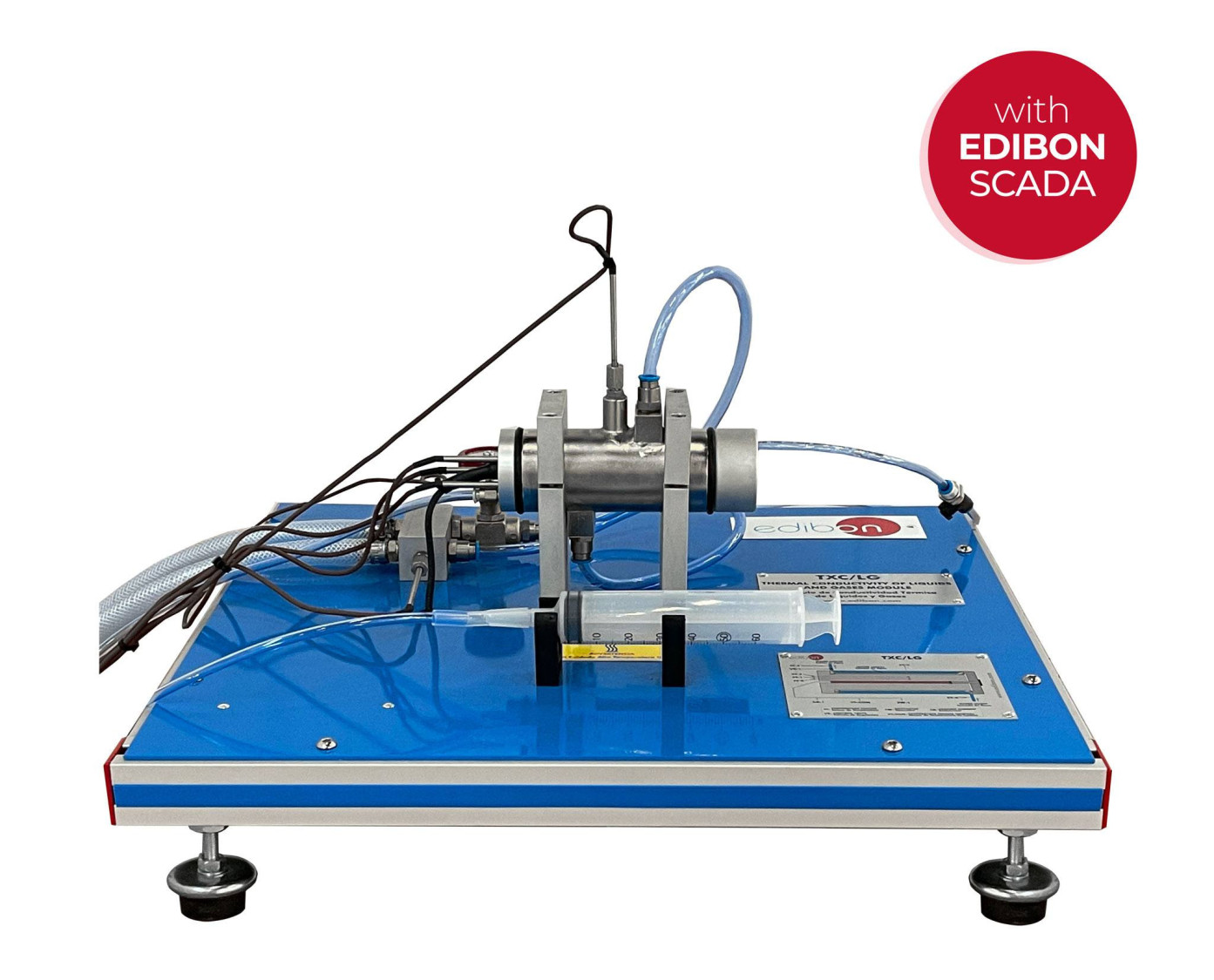

This unit has been designed to enable students to easily determine the thermal conductivity of liquids and gases.

By the realization of the practices the student can determine the thermal conductivity of any suitable gas or compatible liquid with materials on construction.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Determining the heat losses of the system.
Obtaining the thermal conductivity of gases and liquids.
Thermal conductivity under vacuum conditions.
Determining the temperature distribution in cylindrical bodies.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

Obtaining of the curve of thermal conductivity of the air.
Water thermal conductivity determination.
Thermal conductivity determination of a mineral oil.
Calibration of the unit.
Sensors calibration.
Dry air thermal conductivity under atmospheric pressure.

ERFORDERLICHE ELEMENTE

TSTCC/CIB
