8.6.- AERODYNAMIK

Aerodynamik ist der Teil der Strömungsmechanik, der die Gase in Bewegung und die Kräfte oder Reaktionen untersucht, denen die mit diesen Gasen wechselwirkenden Körper ausgesetzt sind. Abgesehen von der Bedeutung der Aerodynamik an sich, muss der Wert ihres Beitrags zur Flugzeugtechnik hinzugefügt werden. Entsprechend der Mach Zahl oder der relativen Geschwindigkeit eines sich in Bewegung befindlichen Körpers in Bezug auf die Luft wird die Aerodynamik in Unterschall und Überschall unterteilt, je nachdem, ob diese Zahl kleiner oder grösser als 1 ist.

Mehr sehen

In der Strömungsmechanik, innerhalb der Untersuchung von Gasen, wird normalerweise Luft verwendet, wobei die Hauptvariablen, die normalerweise quantifiziert werden, die Geschwindigkeit, der Druck, WiderstandKraft oder Auftrieb Kraft, usw. Sind. Windkanäle sind Vorrichtungen, die bei strömungsmechanischen Tests weit verbreitet sind, um die Windwirkung auf verschiedene Arten von Körpern zu bestimmen. Das zu untersuchende Modell bleibt in Ruhe, während das Strömung in Bewegung gesetzt wird. Die Hauptbestandteile eines aerodynamischen Tunnels sind: der Ventilator, der Diffusor, die Kammer, ein Kontraktionsabschnitt und ein Testabschnitt.

Jedes Mal, wenn wir einen Gegenstand bewegen oder werfen, wirken eine Reihe von physikalischen Prinzipien, die wir normalerweise nicht bemerken. Die Kenntnis der Prinzipien der Aerodynamik ist für eine lange Liste von Aktivitäten nützlich, vom Start und Pilotieren eines Flugzeugs bis zum Führen eines Fahrzeugs oder Werfen eines Balls.

Siehe Produkte
AERODYNAMIK UNITS
1 - 13 von 13 Artikel(n)
COMPUTER CONTROLLED SUPERSONIC WIND TUNNEL - TAS25/100C
  • TAS25/100C
Available
8.6.- AERODYNAMIK
TAS25/100C
Computer Controlled Supersonic Wind Tunnel
The Computer Controlled Supersonic Wind Tunnel, "TAS25/100C", is an open wind tunnel for the study of the aerodynamic properties of different drag bodies subject to subsonic and supersonic flows. Air flows through a vacuum pump or blower...
COMPUTER CONTROLLED AERODYNAMIC TUNNEL, 50 X 250 MM - TA50/250C
  • TA50/250C
Available
8.6.- AERODYNAMIK
TA50/250C
Windkanal, 50 x 250 mm, computergesteuert.
The Computer Controlled Aerodynamic Tunnel, 50 x 250 mm, "TA50/250C", is a wind tunnel designed to study subsonic aerodynamics in a tunnel in open circuit and with incompressible subsonic flow. Air is drawn by a variable speed fan, computer...
AERODYNAMIC TUNNEL, 50 X 250 MM - TA50/250
  • TA50/250
Available
8.6.- AERODYNAMIK
TA50/250
Windkanal, 50 x 250 mm
The Aerodynamic Tunnel, 50 x 250 mm, "TA50/250", is a wind tunnel designed to study subsonic aerodynamics in a tunnel in open circuit and with incompressible subsonic flow. Air is drawn by a variable speed fan located at the discharge end of the...

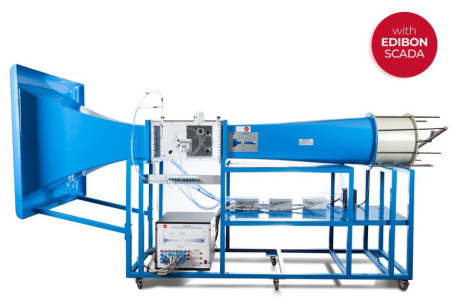

COMPUTER CONTROLLED AERODYNAMIC TUNNEL, 300 X 300 MM - TA300/300C
  • TA300/300C
Available
8.6.- AERODYNAMIK
TA300/300C
Computer Controlled Aerodynamic Tunnel, 300X300 mm
The Computer Controlled Aerodynamic Tunnel, 300 x 300 mm, "TA300/300C", is a wind tunnel designed to study subsonic aerodynamics in a tunnel in open circuit and with incompressible subsonic flow. Air is drawn by a variable speed fan, computer...
AERODYNAMIC TUNNEL, 300 X 300 MM - TA300/300
  • TA300/300
Available
8.6.- AERODYNAMIK
TA300/300
Aerodynamic Tunnel, 300X300 mm
The Aerodynamic Tunnel, 300 x 300 mm, "TA300/300", is a wind tunnel designed to study subsonic aerodynamics in a tunnel in open circuit and with incompressible subsonic flow. Air is drawn by a variable speed fan located at the discharge end of the...
COMPUTER CONTROLLED AERODYNAMIC TUNNEL, 610 X 915 MM - TA610/915C
  • TA610/915C
Available
8.6.- AERODYNAMIK
TA610/915C
Computer Controlled Aerodynamic Tunnel, 610X915 mm
Aerodynamics is the part of fluid mechanics that studies the motion of gases and the forces or reactions to which the bodies they interact with are subjected. Aerodynamics is not only important by itself but also as a complement to aeronautics....
COMPUTER CONTROLLED AERODYNAMIC TUNNEL, 1000 X 1000 MM - TA1000/1000C
  • TA1000/1000C
Available
8.6.- AERODYNAMIK
TA1000/1000C
Computer Controlled Aerodynamic Tunnel, 1000X1000 mm
Aerodynamics is the part of fluid mechanics that studies the motion of gases and the forces or reactions to which the bodies they interact with are subjected. Aerodynamics is not only important by itself but also as a complement to aeronautics....
COMPUTER CONTROLLED AERODYNAMIC TUNNEL, 1200X1200 MM - TA1200/1200C
  • TA1200/1200C
Available
8.6.- AERODYNAMIK
TA1200/1200C
Aerodynamische Tunnel, computergesteuert, 1200x1200 mm.
Aerodynamics is the part of fluid mechanics that studies the motion of gases and the forces or reactions to which the bodies they interact with are subjected. Aerodynamics is not only important by itself but also as a complement to aeronautics....
FLOW VISUALIZATION AERODYNAMIC TUNNEL - TAVF180/100
  • TAVF180/100
Available
8.4.- FLUSSVISUALISIERUNG
TAVF180/100
Flow Visualization Aerodynamic Tunnel
The Flow Visualization Aerodynamic Tunnel, "TAVF180/100", consists of a vertical conduction in which an upward flow of air and smoke is induced, which passes through different models allowing to study the behavior of the flow around it. Thus it is...

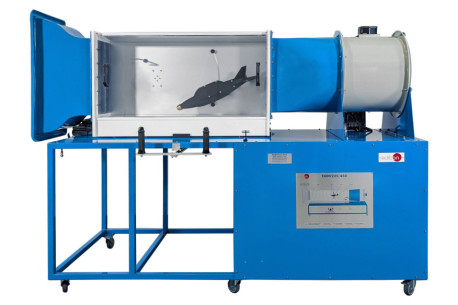

WIND TUNNEL FLIGHT DEMONSTRATION UNIT - TADV225/450
  • TADV225/450
Available
8.6.- AERODYNAMIK
TADV225/450
Wind Tunnel Flight Demonstration Unit
The Aerodynamic Tunnel for Flight Demonstration, "TADV225/450", consists of an open wind tunnel in whose working section the model of an aircraft with fixed wings is located. The aircraft is piloted by the user using controls similar to those of a...
AERODYNAMIC TESTING BENCH - ATBB
  • ATBB
Available
8.6.- AERODYNAMIK
ATBB
Aerodynamic Testing Bench
The Aerodynamic Testing Bench, "ATBB", has two main components: a radial fan with speed control and a working section where the different accessories for the tests are fixed. The radial blower impels the air through an air intake pipe to a...
