9.8.- THERMISCHE MASCHINEN

A thermische Maschine ist ein Satz mechanischer Elemente, der eine Arbeit durch einen zyklischen Prozess ausführt, bei dem Energie durch ein kompressibles Fluid von einem heißen Fokus zu einem kalten Fokus wechselt.

Mehr sehen

In thermischen Maschinen treten signifikante Dichteänderungen im Arbeitsfluid auf, wenn es die Maschine durchläuft. Im Gegensatz dazu ist diese Änderung bei hydraulischen Maschinen vernachlässigbar.

Es gibt mehrere Kriterien für die Klassifizierung von thermischen Maschinen:

  • Abhängig von der Richtung der Energieübertragung: Motor oder erzeugend Maschinen.
  • Abhängig von seiner Entstehung: rotierend oder alternativ.
  • Abhängig von der Flusskontinuität: volumetrisch oder kontinuierlicher Fluss.
  • Abhängig vom Ort der Verbrennung: externe Verbrennung oder interne Verbrennung.

Die wichtigsten Wärme erzeugenden Maschinen sind:

  • Turbine: Es handelt sich um eine rotierende Maschine, durch die ein Fluid kontinuierlich strömt und seine Energie durch eine Welle überträgt. Der Druck des Fluids nimmt ab, wenn es durch die Schaufeln der Maschine strömt, wodurch diese in Rotation versetzt werden.
  • Interner Verbrennungsmotor: Wie der Name schon sagt, handelt es sich um einen Maschinentyp, der mechanische Energie direkt aus der Verbrennung eines Kraftstoffs in einer Kammer gewinnt. Die gebräuchlichsten sind der Hubkolbenmotor (Otto Zyklus), der Dieselmotor (Dieselmotor Zyklus) und der Stirlingmotor Motor.
  • Dampfmaschine: Es handelt sich um eine externe Verbrennung Maschine, die Wärmeenergie in mechanische Energie umwandelt. Es ist die Maschine, die in Kraftwerken eingesetzt wird.

Thermomaschinen werden für Leistungszyklen eingesetzt. Sie können für Zyklen in Kraftwerken eingesetzt werden, wie z.B. den Rankine Zyklus für Dampf, oder für den Antrieb mit dem Brayton Zyklus bei der Arbeit mit Gas.

Siehe Produkte
THERMISCHE MASCHINEN UNITS
1 - 9 von 9 Artikel(n)

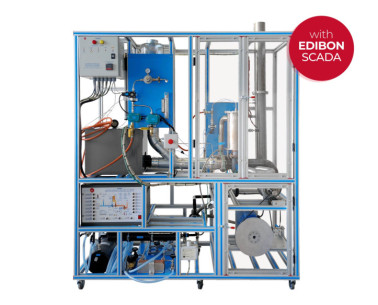

COMPUTER CONTROLLED TWO -SHAFT GAS TURBINE - TGDEC
  • TGDEC
Available
5.4.- KONVENTIONELLE ENERGIEN
TGDEC
Zweiwellige Gasturbine, computergesteuert.
The main element of the Computer Controlled Two-Shaft Gas Turbine "TGDEC" is the High Pressure Turbine, which is also called Gas Generative Turbine. It consists of:Radial compressor, which is feeded by atmospheric air to compress it.Tubular...

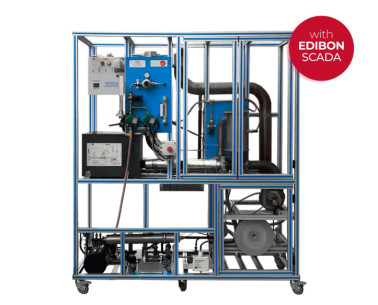

COMPUTER CONTROLLED TWO-SHAFT GAS TURBINE/ JET ENGINE - TGDEPC
  • TGDEPC
Available
5.4.- KONVENTIONELLE ENERGIEN
TGDEPC
Zweiwellige Gas- /Triebwerksturbine, computergesteuert.
The main element of the Computer Controlled Two-Shaft Gas Turbine/ Jet Engine, "TGDEPC", is the High Pressure Turbine, which is also called Gas Generative Turbine. It consists of:Radial compressor, which is feeded by atmospheric air to compress...
COMPUTER CONTROLLED AXIAL FLOW GAS TURBINE/ JET ENGINE - TGFAC
  • TGFAC
Available
9.9.- VERBRENNUNGSMOTOREN
TGFAC
Computer Controlled Axial Flow Gas Turbine/ Jet Engine
The main element of the "TGFAC" unit is the gas turbine, which consists of:Axial compressor, supplied by atmospheric air that will be compressed afterwards.Annular combustion chamber, where fuel is added to the compressed air and that mixture is...
COMPUTER CONTROLLED SOLAR/HEAT SOURCE VAPOUR TURBINE - HTVC
  • HTVC
Available
5.3.10.- DAMPFTURBINEN UND ORGANIC RANKINE CYCLES
HTVC
Solar/Wärmequelle Dampfturbine, computergesteuert.
The Computer Controlled Solar/Heat Source Vapour Turbine, "HTVC", has been designed to provide an easily understood vapour power plant and to demonstrate, on a lab scale, the ability to produce shaft power from Solar Radiation.It is a bench-top...
COMPUTER CONTROLLED STIRLING MOTOR - TMSC
  • TMSC
Available
5.3.11.- ANDERE NICHTKONVENTIONELLE SYSTEME
TMSC
Computergesteuerter Stirling Motor.
The Computer Controlled Stirling Motor, "TMSC", is used to demonstrate the operation of a thermodynamic machine for the conversion of energy. It converts thermal energy into mechanical energy and operates as a motor (heat engine). Additionally it...
STIRLING MOTOR - TMSB
  • TMSB
Available
9.8.- THERMISCHE MASCHINEN
TMSB
Stirling Motor.
The Stirling Motor, "TMSB", is used to demonstrate the operation of a thermodynamic machine for the conversion of energy. It converts thermal energy into mechanical energy and operates as a motor (heat engine). Additionally it can operate an...
COMPUTER CONTROLLED AND TOUCH SCREEN 1.5 KW STEAM POWER PLANT - TPTV/1.5kW/CTS
  • TPTV/1.5kW/CTS
Available
5.3.10.- DAMPFTURBINEN UND ORGANIC RANKINE CYCLES
TPTV/1.5kW/CTS
Computer Controlled and Touch Screen 1.5 kW Steam Power Plant
The Computer Controlled and Touch Screen 1.5 kW Steam Power Plant,"TPTV/1.5kW/CTS", allows the detailed study of the power generation cycle using steam as process fluid.In addition to the main TPTV unit, the unit has three required units, Water...
COMPUTER CONTROLLED AND TOUCH SCREEN 20 KW STEAM POWER PLANT - TPTV/20kW/CTS
  • TPTV/20kW/CTS
Available
5.3.10.- DAMPFTURBINEN UND ORGANIC RANKINE CYCLES
TPTV/20kW/CTS
Computer Controlled and Touch Screen 20 kW Steam Power Plant
The Computer Controlled and Touch Screen 20 kW Steam Power Plant,"TPTV/20kW/CTS", allows the detailed study of the power generation cycle using steam as process fluid.In addition to the main TPTV unit, the unit has three required units, Water...
