SUSPENSION BRIDGE UNIT - MVS
  • MVS
Available
7.1.6.- STRUKTURMECHANIK
MVS
Gerät für Hängebrücken.
The Suspension Bridge Unit, "MVS", consists of a deck and two parallel main cables that simulate a suspension bridge and allow the study of stress in the main cables. The deck of the bridge is simulated by a light alloy beam that is held by both...
PARABOLIC ARCH UNIT - MARP
  • MARP
Available
7.1.6.- STRUKTURMECHANIK
MARP
Parabolischer- Bogen- Einheit
The Parabolic Arch Unit "MARP" contains a pre-shaped articulated arch, which can be subjected to point or evenly distributed loads by means of seven uniformly distributed cables (cords) with hangers.One support of the arch is fixed whereas the...
THREE-HINGED ARCH UNIT - MART
  • MART
Available
7.1.6.- STRUKTURMECHANIK
MART
Dreigelenkbogeneinheit
The Three-Hinged Arch Unit "MART" allows the student to become familiar with three-hinged arches, to calculate the bearing forces (for point load, for uniformly distributed load and for moving load), to investigate the influence of the load on the...
THICK WALLED CYLINDER UNIT - MCPG
  • MCPG
Available
7.1.6.- STRUKTURMECHANIK
MCPG
Thick Walled Cylinder Unit
In the Thick-Walled Cylinder Unit, "MCPG", the stresses are determined through the measurement of the strains produced on the surface. These strains are measured by strain gauges.The thick-walled vessel consists of an aluminum cylinder of length...
TWO HINGED ARCH UNIT - MFL
  • MFL
Available
7.1.6.- STRUKTURMECHANIK
MFL
Biegegerät (zweiseitig befestigter Bogen).
The Two Hinged Arch Unit, "MFL", designed by EDIBON allows to study the response of an arched beam when an external load is applied on it.The arch is supported on two supports, a fixed one and a movable one. The displacement and horizontal...
PORTAL FRAME UNIT - MPO
  • MPO
Available
7.1.6.- STRUKTURMECHANIK
MPO
Portalrahmen.
The Portal Frame Unit, "MPO", allows to perform vertical deflection and horizontal deflection measurements in a fixed rectangular portal frames.To carry out the deflection tests, a series of loads with different weight must be applied to the...
STRESS HYPOTHESES UNIT - STH
  • STH
Available
7.1.6.- STRUKTURMECHANIK
STH
Stress Hypotheses Unit
The Stress Hypotheses Unit, "STH", allows the study and testing of stress hypotheses by applying loads in different directions on a test specimen point and measuring the deformations produced.Normal and shear stresses are applied, avoiding...
THIN CYLINDER UNIT - MCD
  • MCD
Available
7.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG)
MCD

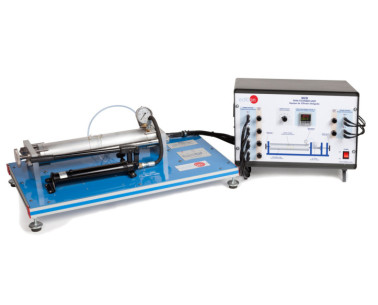

Gerät für dünne Zylinder.
The Thin Cylinder Unit, "MCD", has been developed to enable the student to verify various analytical formulae with actual measured results. Strain gauges mounted in various positions and orientations on the cylinder provide an opportunity for...
UNIT TO STUDY STRESS ON A MEMBRANE - SSM
  • SSM
Available
7.1.6.- STRUKTURMECHANIK
SSM

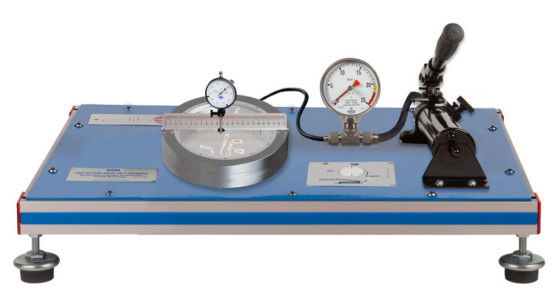

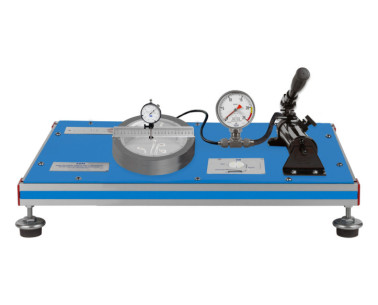

Unit to Study Stress on a Membrane
The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.The main element of the equipment is a thin disc or membrane...
UNSYMMETRICAL CANTILEVER UNIT - MVV
  • MVV
Available
7.1.6.- STRUKTURMECHANIK
MVV
Messgerät für Kragbalken.
The system consists of a vertical cantilever rigidly clamped at its lower end to the main column which is attached to a rigid structure. Beams of different sections may be used.A loading head, located at the upper end of the column, can rotate...
DEFLECTION OF CURVED BARS UNIT - MDB
  • MDB
Available
7.3.2.1.- MECHANISCHE TESTS
MDB
Gerät für die Durchbiegung bei gekrümmten Balken.
The Deflection of Curved Bars Unit "MDB" consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.The use of two dial gauges placed...
BEAM DEFLECTION UNIT - MFV
  • MFV
Available
7.3.2.1.- MECHANISCHE TESTS
MFV
Gerät zur Strahlenablenkung.
The Beam Deflection Unit, "MFV" has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams:Relation between the deflections and the applied loads.Effect of the length and...
STRUT BUCKLING UNIT - MFLT
  • MFLT
Available
7.3.2.1.- MECHANISCHE TESTS
MFLT
Maschine zur Untersuchung des Knickens von Stäben
The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm.,...
EULER BUCKLING MODES UNIT - MEBM
  • MEBM
Available
7.3.2.1.- MECHANISCHE TESTS
MEBM
Euler Buckling Modes Unit
With the Euler Buckling Modes Unit, "MEBM", the four Euler buckling cases are demonstrated, for which four elastic bars are fixed or supported in a frame and subjected to compression load with a system of weights.The elastic bars can be free or...
UNIVERSAL BUCKLING UNIT - MUP
  • MUP
Available
7.3.2.1.- MECHANISCHE TESTS
MUP
Gerät zur Belastung von Strebebalken.
The Universal Buckling Unit "MUP" is a bench-top unit whose frame is made of anodized aluminum profiles and plates and steel elements, on which a bubble level is installed to equilibrate the system.The unit has been designed to carry out tests...
SHEAR FORCE AND BENDING MOMENTUM UNIT - MMF
  • MMF
Available
7.3.2.1.- MECHANISCHE TESTS
MMF
Messgerät für die Querkraft und das Biegemoment.
The Shear Force and Bending Momentum Unit, "MMF", unit is formed by an aluminum and steel structure that allows us to perform a mechanical study of different structures.An articulated structure makes it possible to convert the application of one...
