8.7.3.- TURBINEN

TURBINEN UNITS
1 - 14 von 14 Artikel(n)
COMPUTER CONTROLLED PELTON TURBINE - TPC
  • TPC
Available
5.3.6.- HYDRAULISCHE ENERGIE
TPC
Pelton- Turbine, computergesteuert.
The Computer Controlled Pelton Turbine, "TPC", designed by EDIBON, consists of a small-scale Pelton turbine, with a valve that allows the flow to be regulated. The turbine includes a PELTON runner with 16 buckets, which can be clearly seen through...
COMPUTER CONTROLLED FRANCIS TURBINE - TFC
  • TFC
Available
5.3.6.- HYDRAULISCHE ENERGIE
TFC
Francis- Turbine, computergesteuert.
The Computer Controlled Francis Turbine, "TFC", consists of a small-scale Francis Turbine, with a valve that allows flow regulation and has a ring with adjustable guide vanes that allows control of the angle of incidence of the water in the...
COMPUTER CONTROLLED KAPLAN TURBINE - TKC
  • TKC
Available
5.3.6.- HYDRAULISCHE ENERGIE
TKC
Kaplan- Turbine, computergesteuert.
The Computer Controlled Kaplan Turbine, "TKC", consists of a small-scale Kaplan turbine that has a ring with adjustable guide vanes, which allow the control of water flow in the turbine.In order to raise the fluid, it has a computer controlled...
COMPUTER CONTROLLED RADIAL FLOW TURBINE - TFRC
  • TFRC
Available
5.3.6.- HYDRAULISCHE ENERGIE
TFRC
Radialturbine, computergesteuert.
The Computer Controlled Radial Flow Turbine, "TFRC", consists of a small-scale radial flow turbine with two nozzles at 90 degrees to the perpendicular direction of the axis of rotation.In order to raise the fluid, it has a computer controlled pump...
COMPUTER CONTROLLED AXIAL FLOW TURBINE - TFAC
  • TFAC
Available
5.3.6.- HYDRAULISCHE ENERGIE
TFAC
Axialturbine, computergesteuert.
The Computer Controlled Axial Flow Turbine, "TFAC", consists of a small-scale turbine with single-stage axial flow input. It has eight nozzles that act as water rings to the rotor, four of which have an incidence angle of 20º and the other four of...
COMPUTER CONTROLLED EXPERIMENTAL REACTION TURBINE - HTRC
  • HTRC
Available
5.3.6.- HYDRAULISCHE ENERGIE
HTRC
Experimentelle Überdruckturbine, computergesteuert.
The Experimental Reaction Turbine, Computer Controlled (PC), "HTRC", allows to study the characteristics of operation of a small scale reaction turbine.This unit includes suitable instrumentation to measure the main parameters:There is a pressure...
COMPUTER CONTROLLED EXPERIMENTAL IMPULSE TURBINE - HTIC
  • HTIC
Available
5.3.6.- HYDRAULISCHE ENERGIE
HTIC
Experimentelle Gleichdruckturbine, computergesteuert.
The Computer Controlled Experimental Impulse Turbine, "HTIC", allows to study the characteristics and the behavior of a small scale impulse turbine.This unit includes suitable instrumentation to measure the main parameters:There is a pressure...
COMPUTER CONTROLLED HYDRAULIC TURBINES MODULAR UNIT - HTMC
  • HTMC
Available
8.7.3.- TURBINEN
HTMC
Computer Controlled Hydraulic Turbines Modular Unit
Computer Controlled Modular Hydraulic Turbine Unit,"HTMC", has been designed by EDIBON for the study and comparison of different types of small scale hydraulic turbines, allowing the determine the operation characteristics of this type of turbine,...

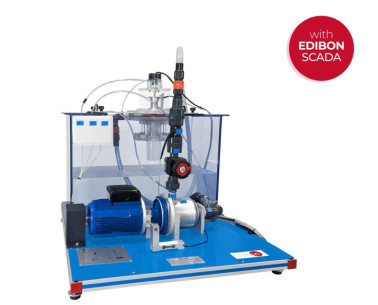

FRANCIS TURBINE MODEL - HT-F
Available
8.7.3.- TURBINEN
HT-F
Modell einer Francis-Turbine
Zubehör von HTMC
Computer Controlled Modular Hydraulic Turbine Unit,"HTMC", has been designed by EDIBON for the study and comparison of different types of small scale hydraulic turbines, allowing the determine the operation characteristics of this type of turbine,...

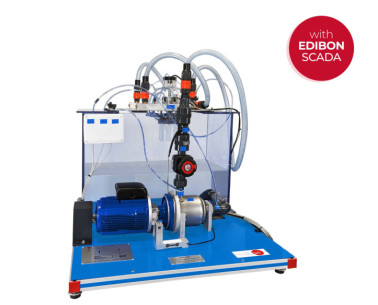

AXIAL FLOW TURBINE MODEL - HT-FA
Available
8.7.3.- TURBINEN
HT-FA
Modell einer Axialturbine
Zubehör von HTMC
Computer Controlled Modular Hydraulic Turbine Unit,"HTMC", has been designed by EDIBON for the study and comparison of different types of small scale hydraulic turbines, allowing the determine the operation characteristics of this type of turbine,...
RADIAL FLOW TURBINE MODEL - HT-FR
Available
8.7.3.- TURBINEN
HT-FR
Modell einer Radialturbine
Zubehör von HTMC
Computer Controlled Modular Hydraulic Turbine Unit,"HTMC", has been designed by EDIBON for the study and comparison of different types of small scale hydraulic turbines, allowing the determine the operation characteristics of this type of turbine,...

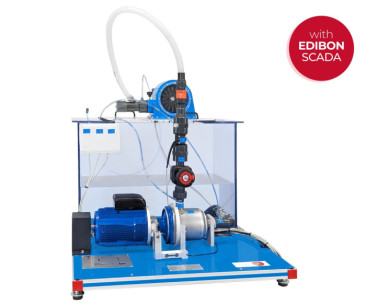

PELTON TURBINE MODEL - HT-P
Available
8.7.3.- TURBINEN
HT-P
Modell einer Pelton-Turbine
Zubehör von HTMC
Computer Controlled Modular Hydraulic Turbine Unit,"HTMC", has been designed by EDIBON for the study and comparison of different types of small scale hydraulic turbines, allowing the determine the operation characteristics of this type of turbine,...

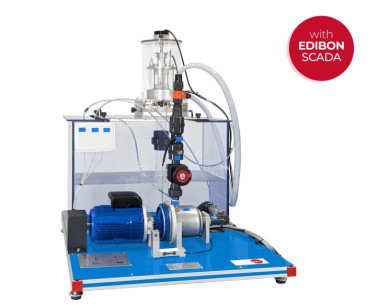

KAPLAN TURBINE MODEL - HT-K
Available
8.7.3.- TURBINEN
HT-K
Modell einer Kaplan-Turbine
Zubehör von HTMC
Computer Controlled Modular Hydraulic Turbine Unit,"HTMC", has been designed by EDIBON for the study and comparison of different types of small scale hydraulic turbines, allowing the determine the operation characteristics of this type of turbine,...
COMPUTER CONTROLLED AXIAL FLOW TURBOMACHINES UNIT - HMFAC
  • HMFAC
Available
8.7.3.- TURBINEN
HMFAC
Computer Controlled Axial Flow Turbomachines Unit
The Computer Controlled Axial Flow Turbomachines Unit, "HMFAC", allows the study of single-stage axial turbomachines, with interchangeable vanes for the study of both a pump and a turbine.The main part of the unit is the axial turbomachine...
Informationen anfordern
