8.1.4.- HYDRODYNAMIK

HYDRODYNAMIK UNITS
1 - 9 von 9 Artikel(n)
JET IMPACT ON SURFACES - FME01
Available
8.1.4.- HYDRODYNAMIK
FME01
Einfluss von Strahlen auf Oberflächen
Zubehör von LIFLUBA
The unit consists of a cylindrical tank with lateral transparent surfaces where a nozzle, connected to the Hydraulics Bench (FME00), is aligned with a device in which the problem surface is fitted. The vertical force made by the water against the...
BERNOULLI'S THEOREM DEMONSTRATION - FME03
Available
8.1.4.- HYDRODYNAMIK
FME03
Demonstration des Satzes von Bernoulli.
Zubehör von LIFLUBA
The Bernoulli's Theorem Demonstration unit, "FME03", designed by EDIBON is mainly composed of a circular section pipe with the shape of a truncated cone, transparent and with seven pressure taps that allows to measure, simultaneously, the static...
ORIFICE DISCHARGE - FME04
Available
8.1.4.- HYDRODYNAMIK
FME04
Düsenaustritt.
Zubehör von LIFLUBA
The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.The unit consists of a...
FREE AND FORCED VORTEX - FME14
Available
8.1.4.- HYDRODYNAMIK
FME14
Freie und erzwungene Wirbel.
Zubehör von LIFLUBA
The Forced and Free Vortex unit, "FME14", designed by EDIBON, allows the study of the fluid rotation in relation to an axis and the study of circular flow at changing velocities.The unit has a cylindrical and transparent deposit with two inlet...
ORIFICE AND FREE JET FLOW - FME17
Available
8.1.4.- HYDRODYNAMIK
FME17
Düsen und Strahl Durchfluss.
Zubehör von LIFLUBA
The Orifice and Free Jet Flow unit, "FME17", designed by EDIBON, allows the study of the different discharge and velocity coefficients in permanent or variable regime as well as the calculation of the discharge times.The unit consists of a...

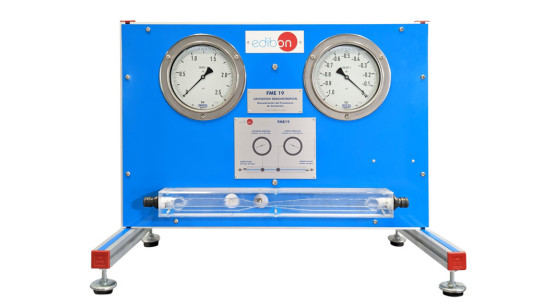

CAVITATION PHENOMENON DEMONSTRATION - FME19
Available
8.1.4.- HYDRODYNAMIK
FME19
Demonstration des Kavitationseffektes.
Zubehör von LIFLUBA
The Cavitation Phenomenon Demonstration unit, "FME19", designed by EDIBON is composed of a Venturi tube with a rectangular cross section, one of its sides being transparent, allowing a better visualization of the cavitation phenomenon.It includes...
VENTURI, BERNOULLI AND CAVITATION UNIT - FME22
Available
8.1.4.- HYDRODYNAMIK
FME22
Ventri-, Bernoulli- und Kavitationsgerät.
Zubehör von LIFLUBA
The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.This unit is designed for demonstrating some practical possibilities with...
DATA ACQUISITION SYSTEM AND SENSORS - BDAS
Available
8.1.7.- HYDRAULISCHE MASCHINEN: TURBINEN
BDAS
Data Acquisition System and Sensors
Zubehör von LIFLUBA
BDAS is designed to monitor the measurements of each unit type "FME" from a computer (PC).This system can monitor any unit, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...
