VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

Complete FME22 Unit

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

FME22 Unit with service unit FME00

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22
VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

創新系統

This module is designed for demonstrating some practical possibilities with the Venturi’s tube.

查看一般說明

扩展

ICAI

Interactive Computer Aided Instruction Software
MSAC

Modular System for Acquisition and Control

化验室

8TV
 技术和职业教育流体力学实验室。
8HE
 高等教育流体力学实验室

相關新聞

NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
阅读更多

一般說明

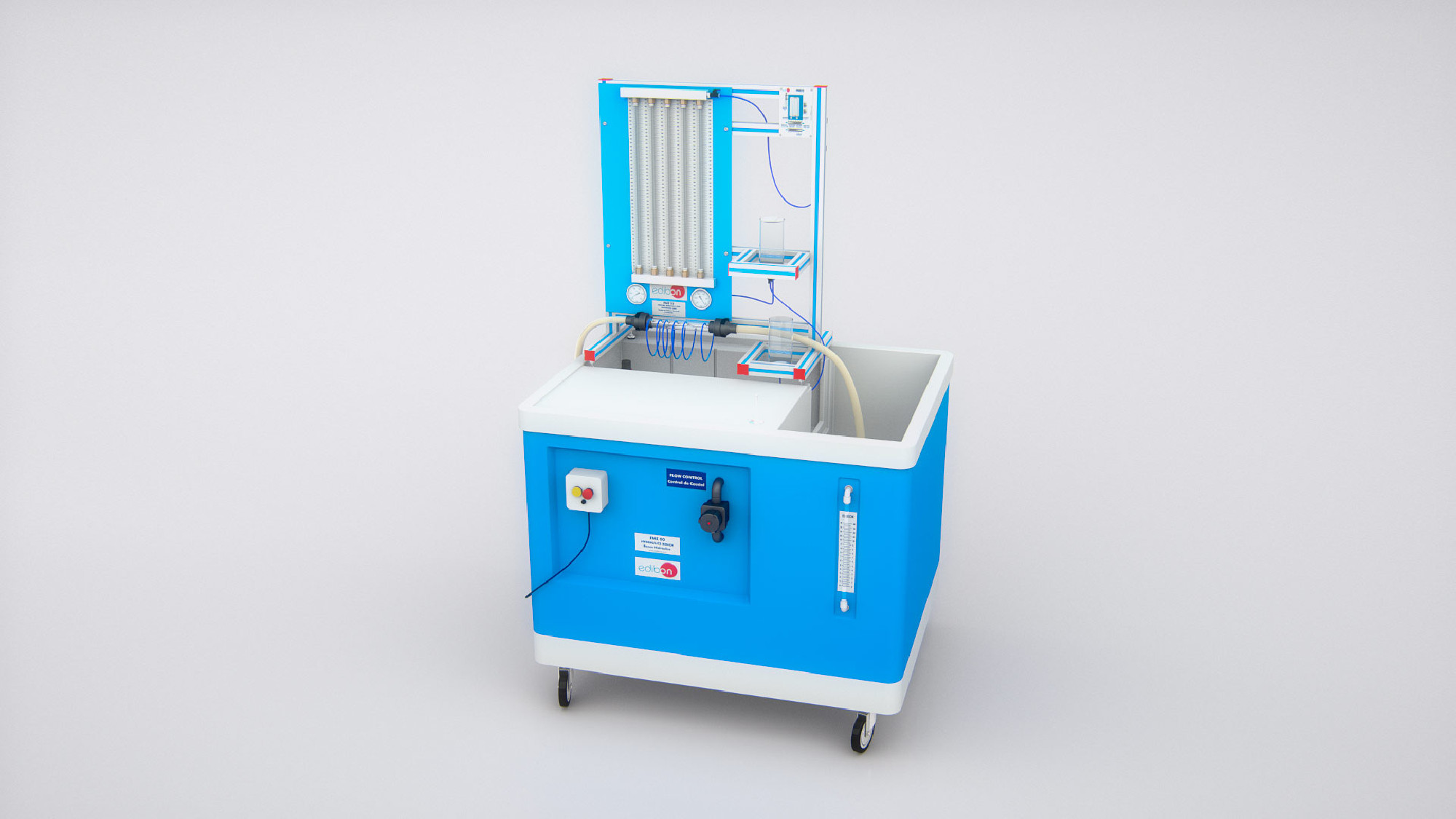

The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.
