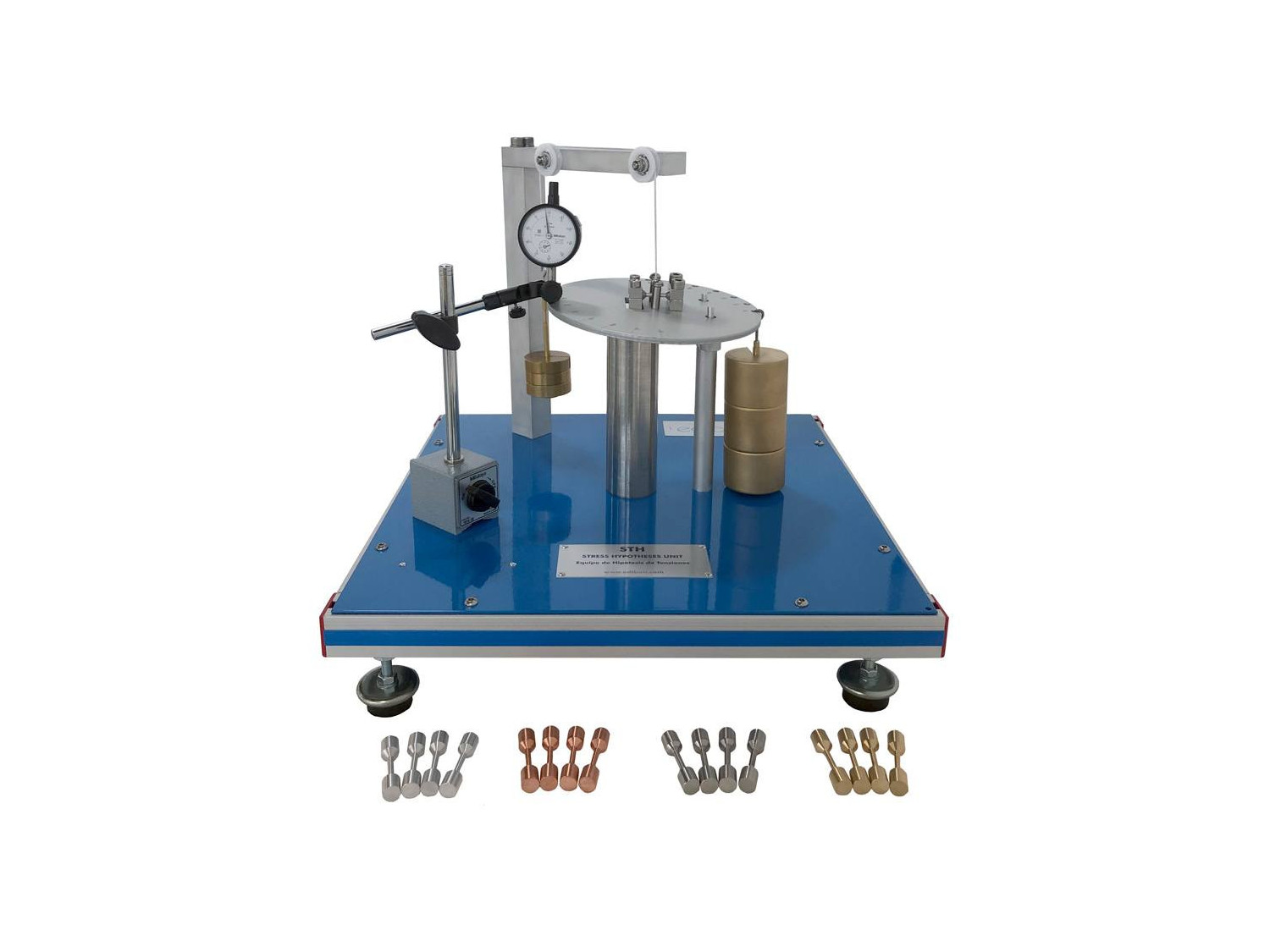

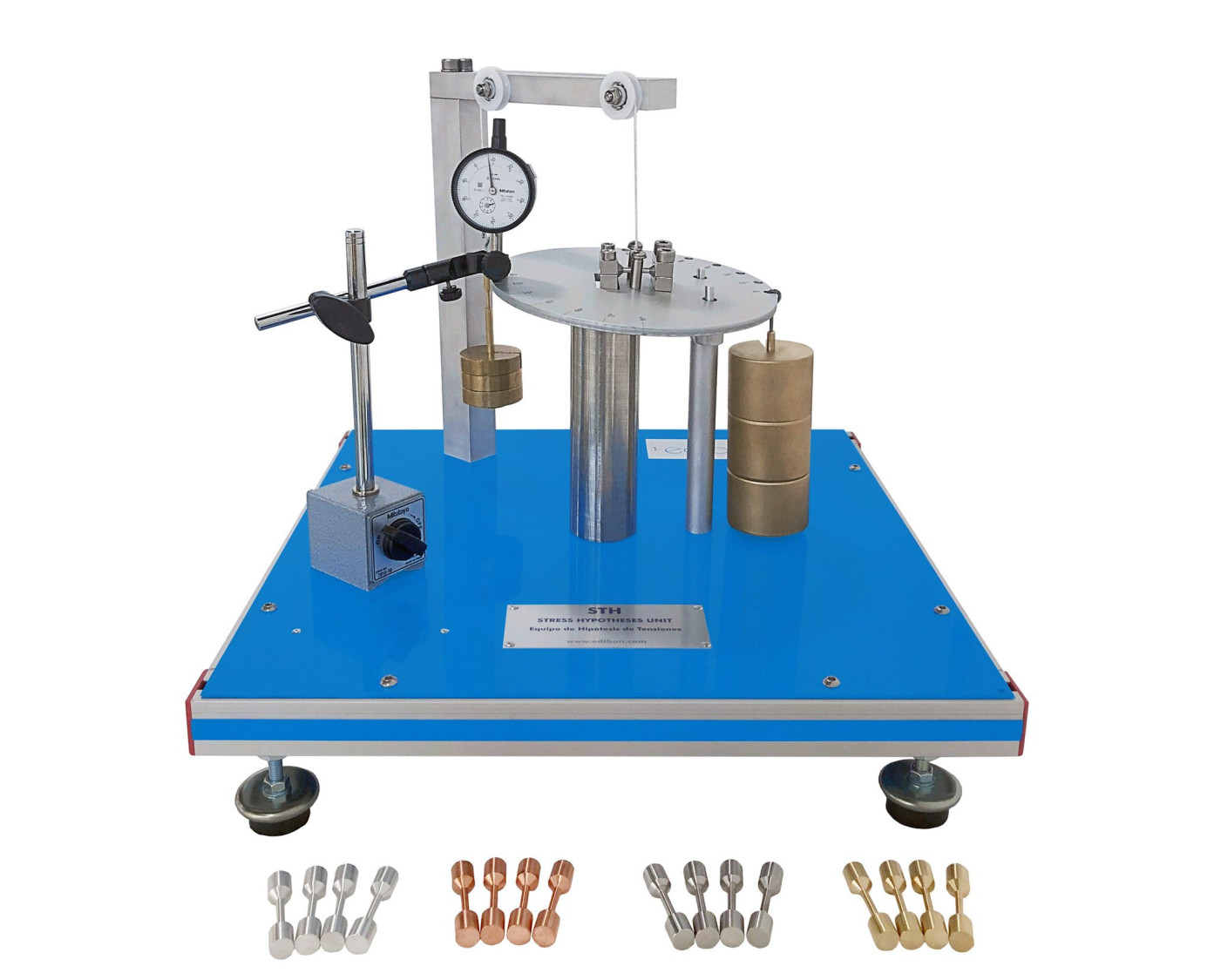

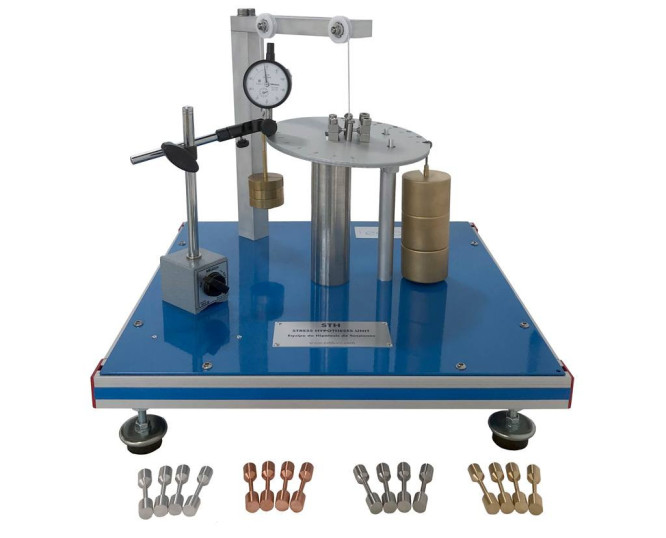

STH Stress Hypotheses Unit
創新系統
The Stress Hypothesis Testing Unit, "STH", designed by EDIBON, allows the verification of stress hypotheses in specimens of different materials.
相關新聞
一般說明
The Stress Hypotheses Unit, "STH", allows the study and testing of stress hypotheses by applying loads in different directions on a test specimen point and measuring the deformations produced.
Normal and shear stresses are applied, avoiding transverse stresses. The test specimen is fixed to the unit on one side and weights are placed on the other side to create the stresses. A counterweight is used to compensate these weights.
These stress-creating weights are supported on a graduated plate placed on the specimen, which allows the weights to be fixed at 15° differences, adding also bending and torsional moments.
The test specimens have an annular cross-section in their loaded zone and the ends are reinforced for support.
練習和指導練習
手册中包含的指导实践练习
- Study of the normal stresses hypothesis.
- Study of the shear stresses hypothesis.
- Study of the generation of different load moments: bending and torsion.
- Study of the yield stress.
- Representation of stresses in Mohr’s circle.
