QMS Solids Handling Study Unit

11.1.12.- 固体处理
SOLIDS HANDLING STUDY UNIT - QMS

Unit QMS. Solids Handling Study Unit

創新系統

The Solids Handling Study Unit "QMS" is designed to introduce the students in different aspect of solids behaviour, unit operations as size reduction, mixing, transport, discharge, weighing, etc.

查看一般說明

扩展

ICAI

Interactive Computer Aided Instruction Software

化验室

11TV
 技术和职业教育化学工程实验室
11HE
 高等教育化学工程实验室
11PTC
 石油培训中心实验室

一般說明

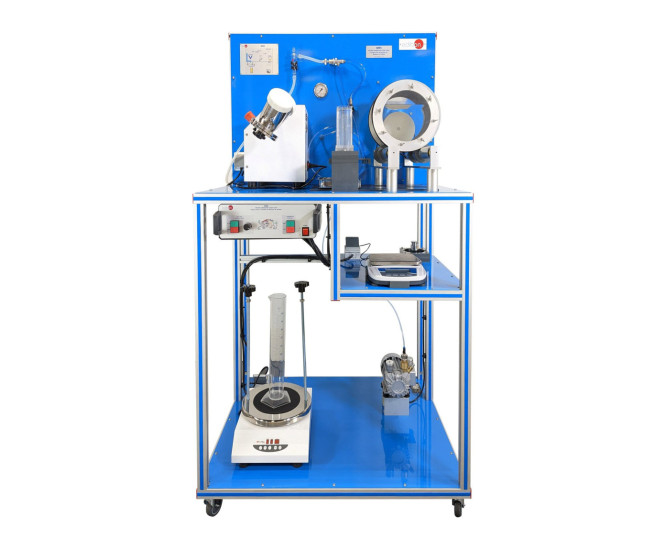

The Solids Handling Study Unit "QMS" is designed to introduce the students in different aspect of solids behaviour, unit operations as size reduction, mixing, transport, discharge, weighing, etc. The unit consists of a bench on which are mounted several elements: ball mill, shaker and sieves, V-blender, cyclone, rotary cylinder, balance, etc. Operations object of study and the elements used for it:

  • Size reduction: Ball mill with various sizes of balls.
  • Analysis of grain measure by sieve: vibratory sieve and other sieves.
  • Solids blending: V-Blender.
  • Solids conveyor: Pneumatic conveyor.
  • Solids separation: Cyclone.
  • Solids storage: Rotary cylinder.
  • Solids unloading: Hoppers and collecting tray.
  • Solids properties: Graduated test tube.
  • Solids weighing: Balance (scale).

練習和指導練習

手册中包含的指导实践练习

  1. Sieving techniques.
  2. Granulometric analysis by sieving.
  3. Study of size reduction.
  4. Classification study according to the size.
  5. Milling: Ball mill. Observation of the comminution of solids processed through a ball mil.
  6. Study of the angle of repose and demonstration of stratification.
  7. Study of the apparent density.
  8. Study of the effect of mixture content.
  9. Determination of bulk solids parameters of density.
  10. Solids unloading study in hoppers.
  11. Cyclone operation. Solids separation.
  12. Pneumatic conveying.
  13. Study of solids mixing.
  14. Solids weighing.

与该单位进行更多实际操作

  1. Mixer operation.
  2. Sieves operation.
