MAGNETIC FIELD STUDY SET - FCM

創新系統

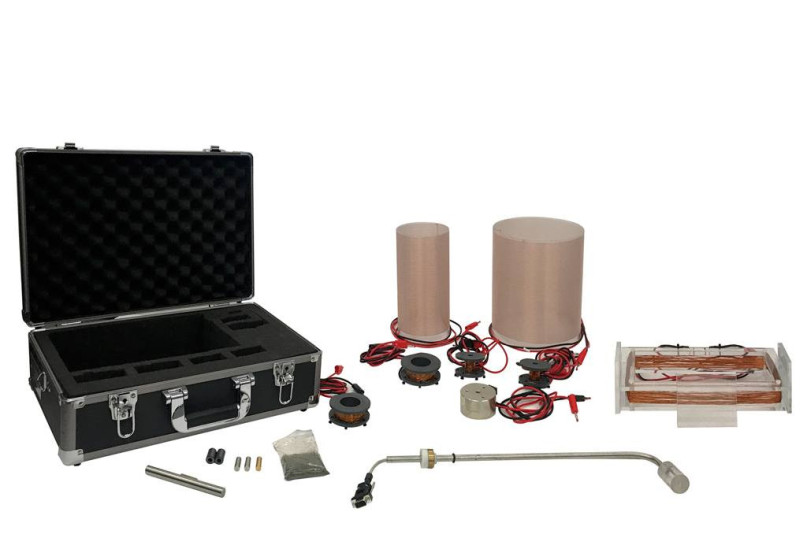

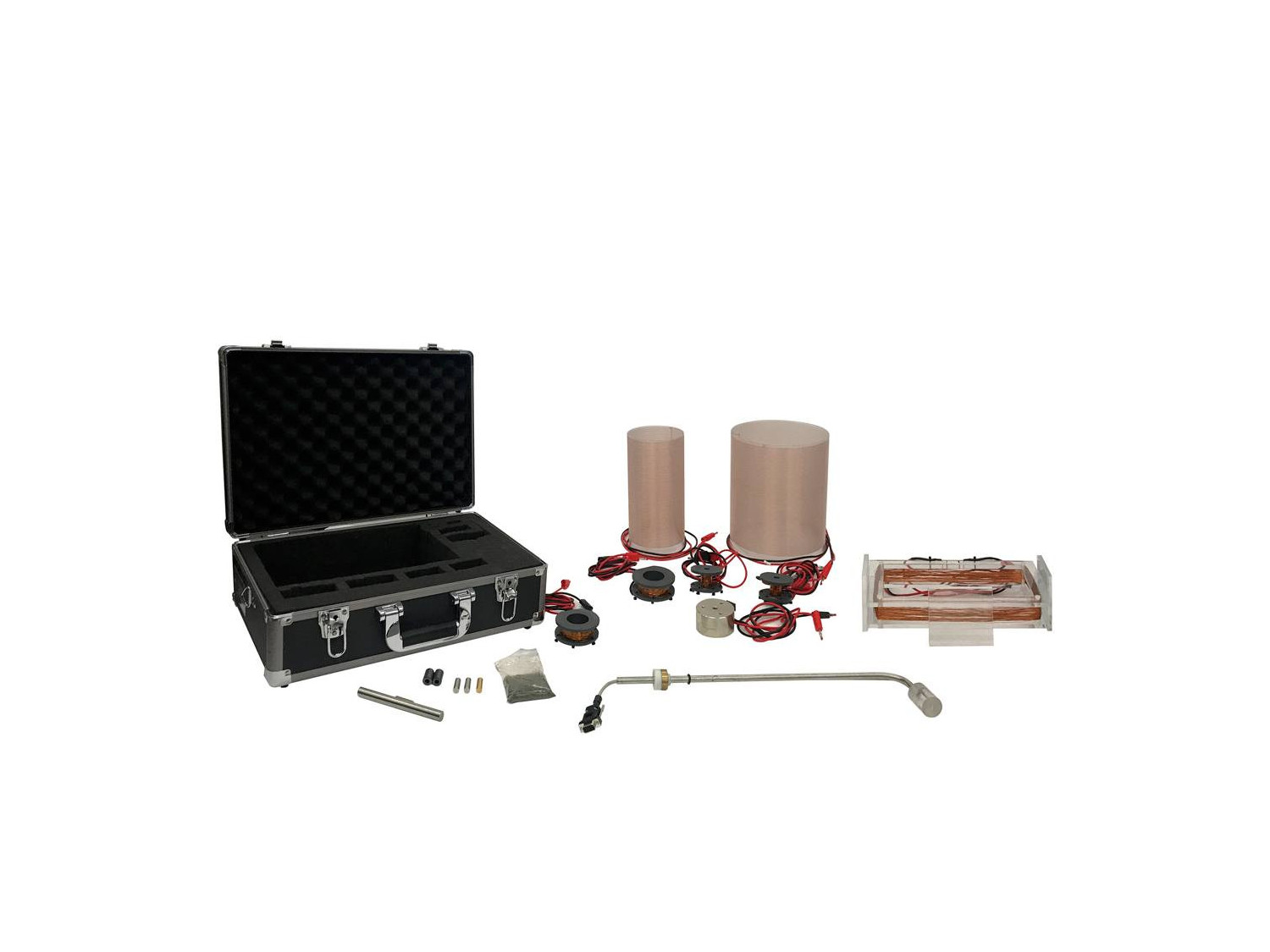

The Magnetic Field Study Set, "FCM", allows the spatial study of the magnetic field in all its dimensions: calculation of magnetic field strength, lines of force, vector potential and equipotential lines, both in static and dynamic fields.
