FME28 混流式水轮机

FRANCIS TURBINE - FME28

Complete FME28 Unit

FRANCIS TURBINE - FME28

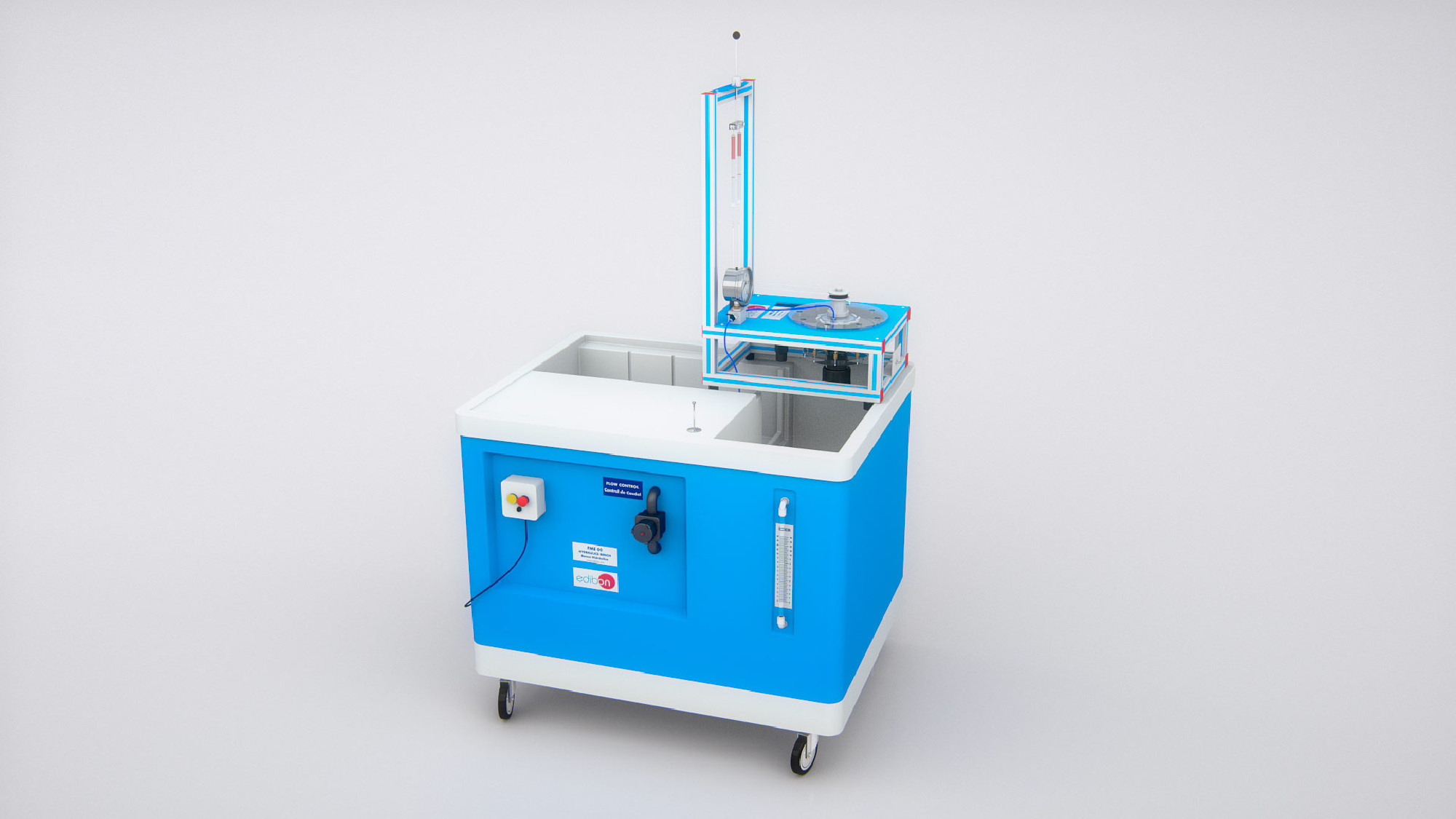

FME28 Unit with service unit FME00

FRANCIS TURBINE - FME28
FRANCIS TURBINE - FME28

創新系統

With the Francis Turbine unit, "FME28", designed by EDIBON, we study the Francis turbines commonly used when we have average flow rates and heights.

查看一般說明

相關新聞

一般說明

With the Francis Turbine unit, "FME28", designed by EDIBON, we study the Francis turbines commonly used when we have average flow rates and heights.

This unit consists on a miniature Francis turbine. The water inlet flow is controlled by a valve situated in the Hydraulics Bench (FME00) or Basic Hydraulic Feed System (FME00/B).

It includes a distributor with adjustable guide vanes that allow for control of the water angle of incidence in the turbine. To adjust the turbine distributor, the unit has a lever on the front of the same. It also has a braking system, connected to two dynamometers, that allows to vary the load supplied to the turbine.

The inlet pressure of the turbine is measured with a manometer situated at the turbine inlet. The feed or spiral chamber is provided with a damping cover and two tubes to avoid water overflow. Its name indicates that it is spiral-shaped and for this reason it is known as snail chamber. Thanks to its design, the water flows at a constant velocity without forming swirls. This way, there are no load losses. The turbine’s axis velocity is determined by a tachometer.

練習和指導練習

手册中包含的指导实践练习

  1. To determine the operating characteristics of a Francis turbine at different velocities.
  2. Determination of the typical turbine curves (operating mechanical curves and operating hydraulic curves).
  3. Turbine power output versus speed and flow rate at various heads.
  4. Effect of guide vane setting on turbine performance.
  5. Adimensionalization.
