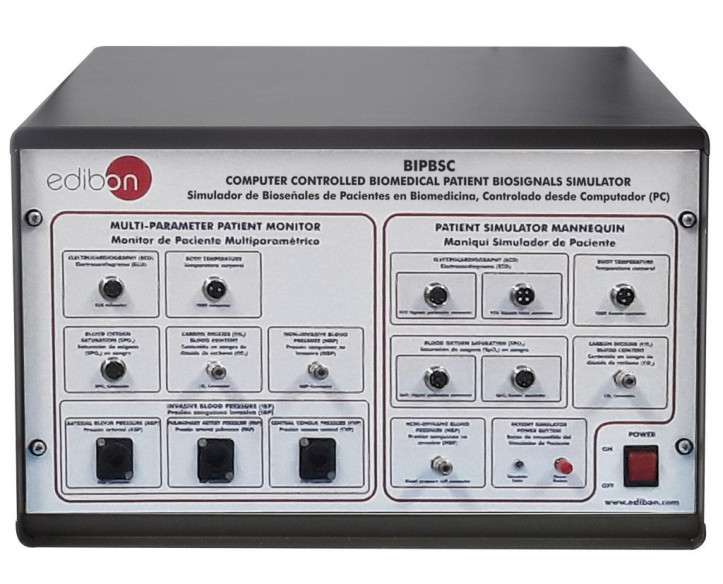

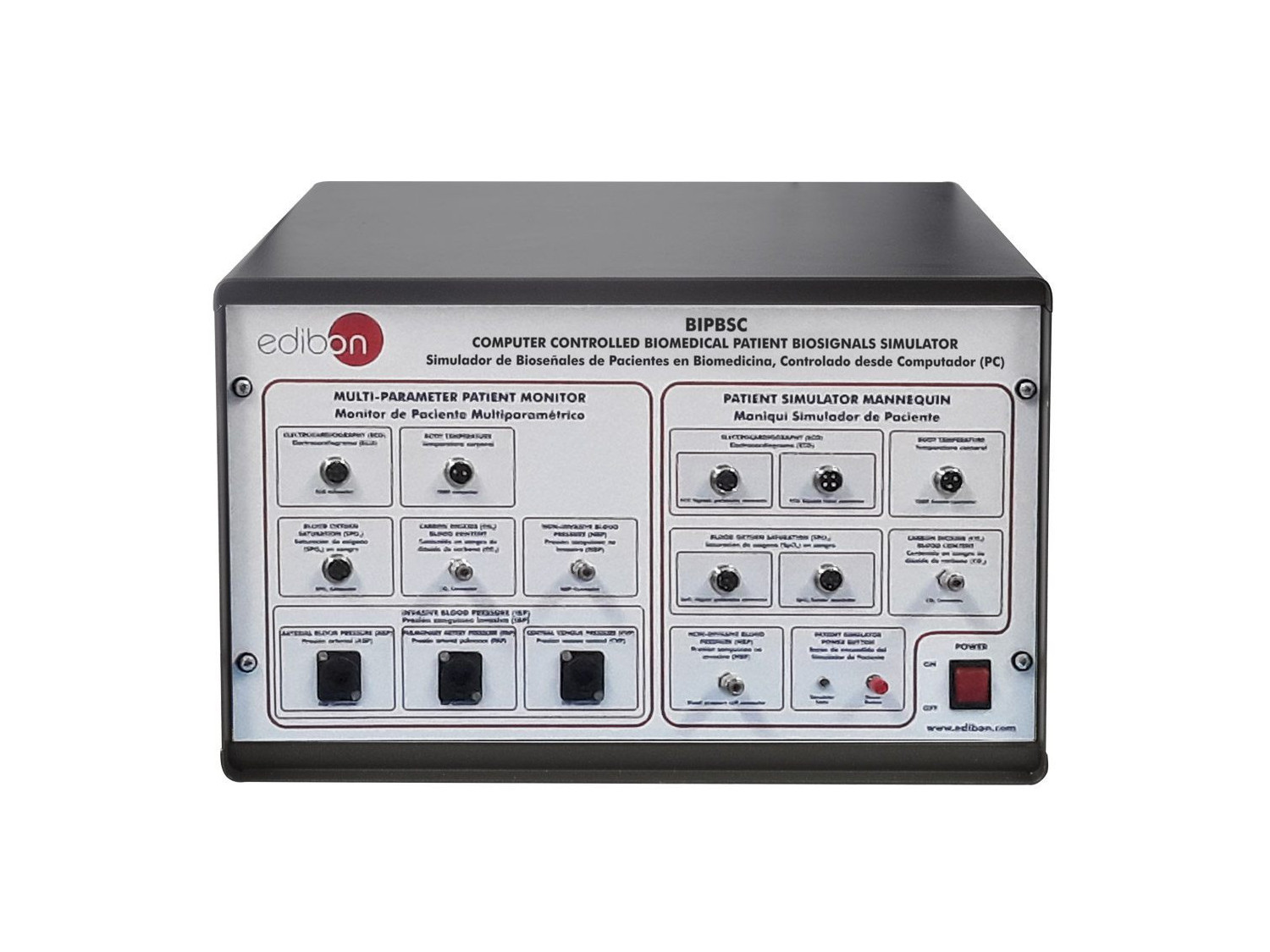

BIPBSC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

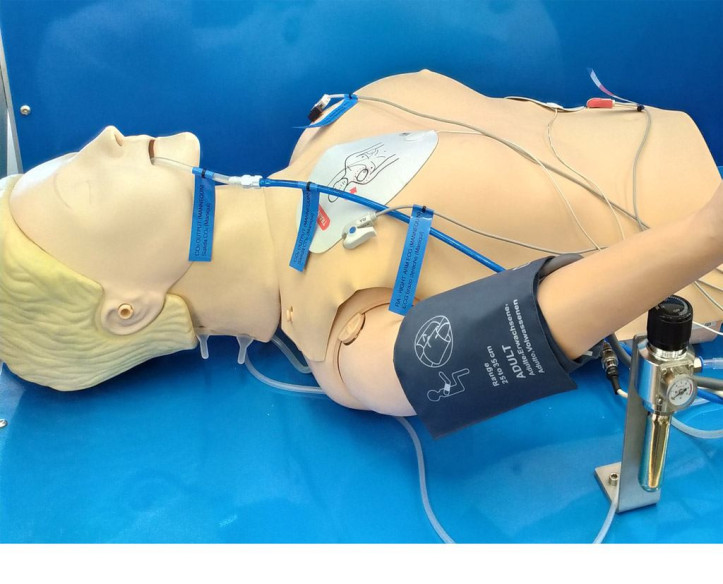

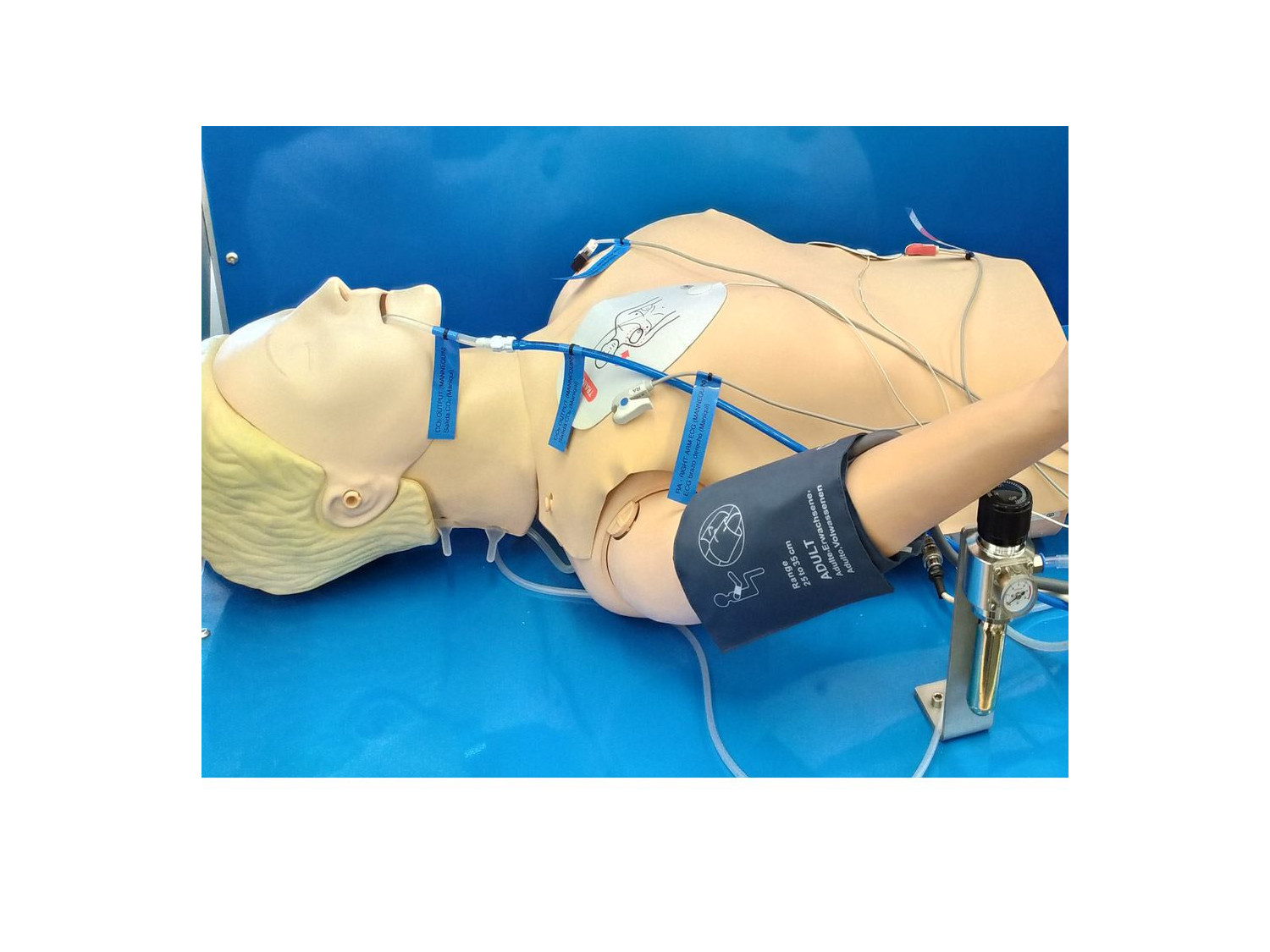

COMPUTER CONTROLLED BIOMEDICAL PATIENT BIOSIGNALS SIMULATION UNIT - BIPBSC

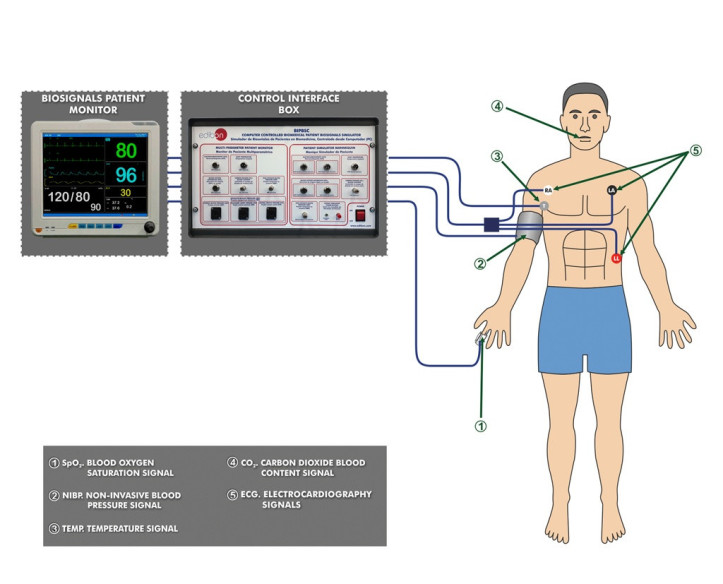

Process diagram and unit elements allocation

COMPUTER CONTROLLED BIOMEDICAL PATIENT BIOSIGNALS SIMULATION UNIT - BIPBSC

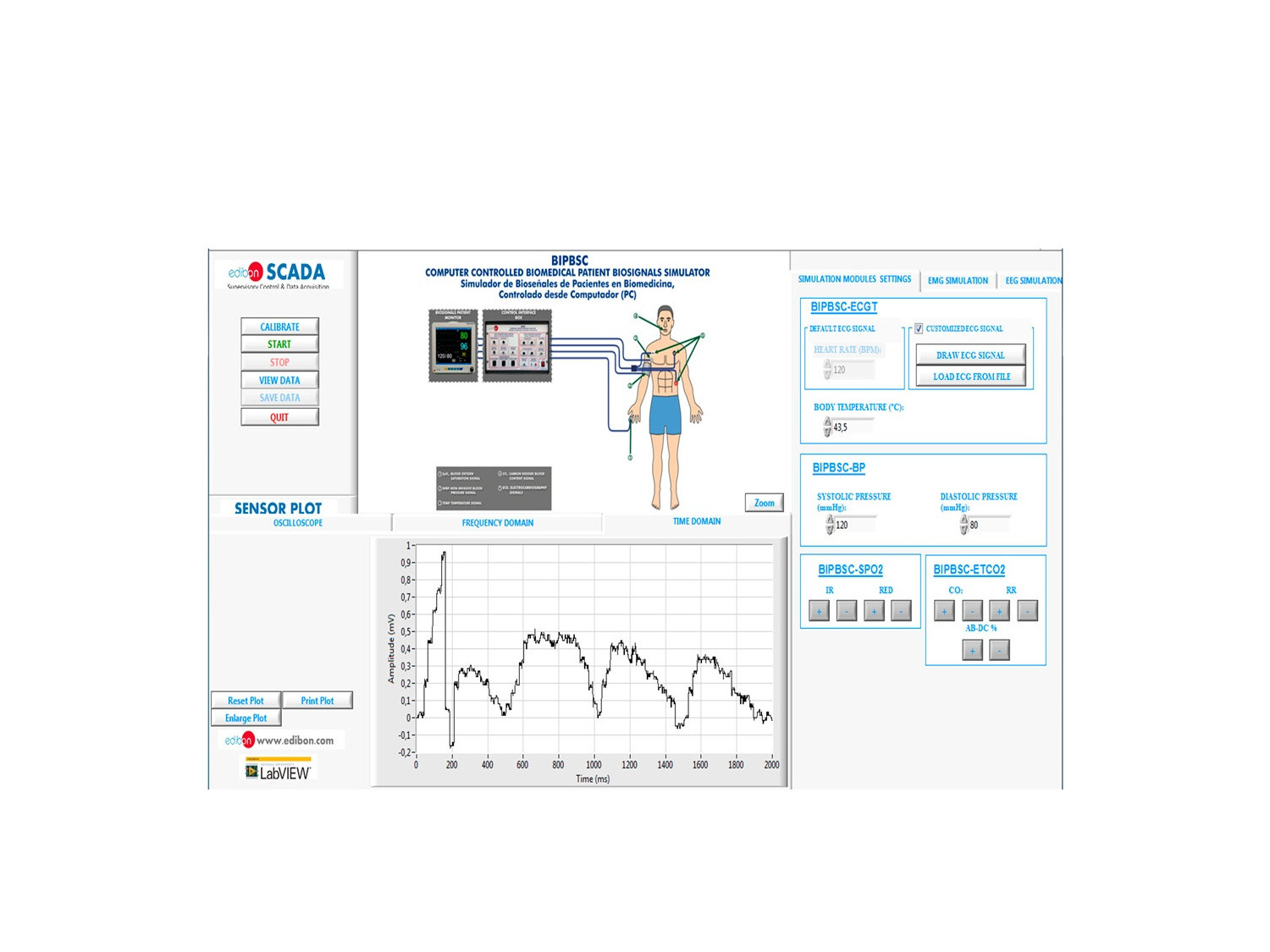

BIPBSC/SOF. EG5C Software. Main Screen

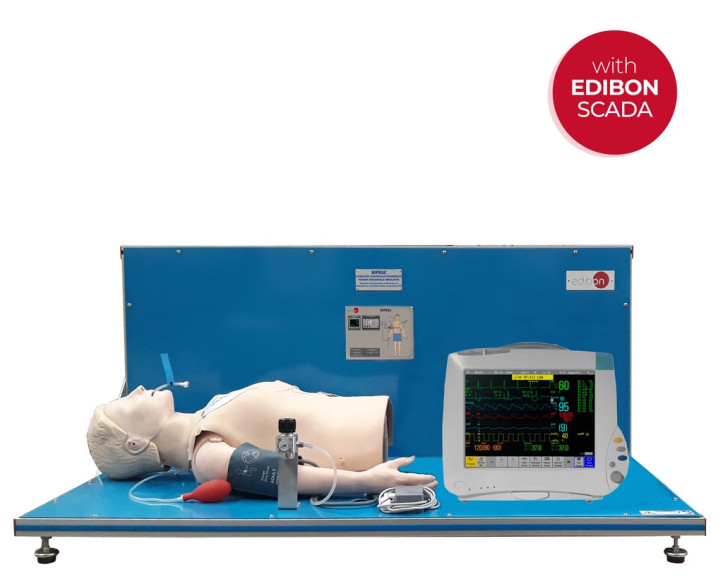

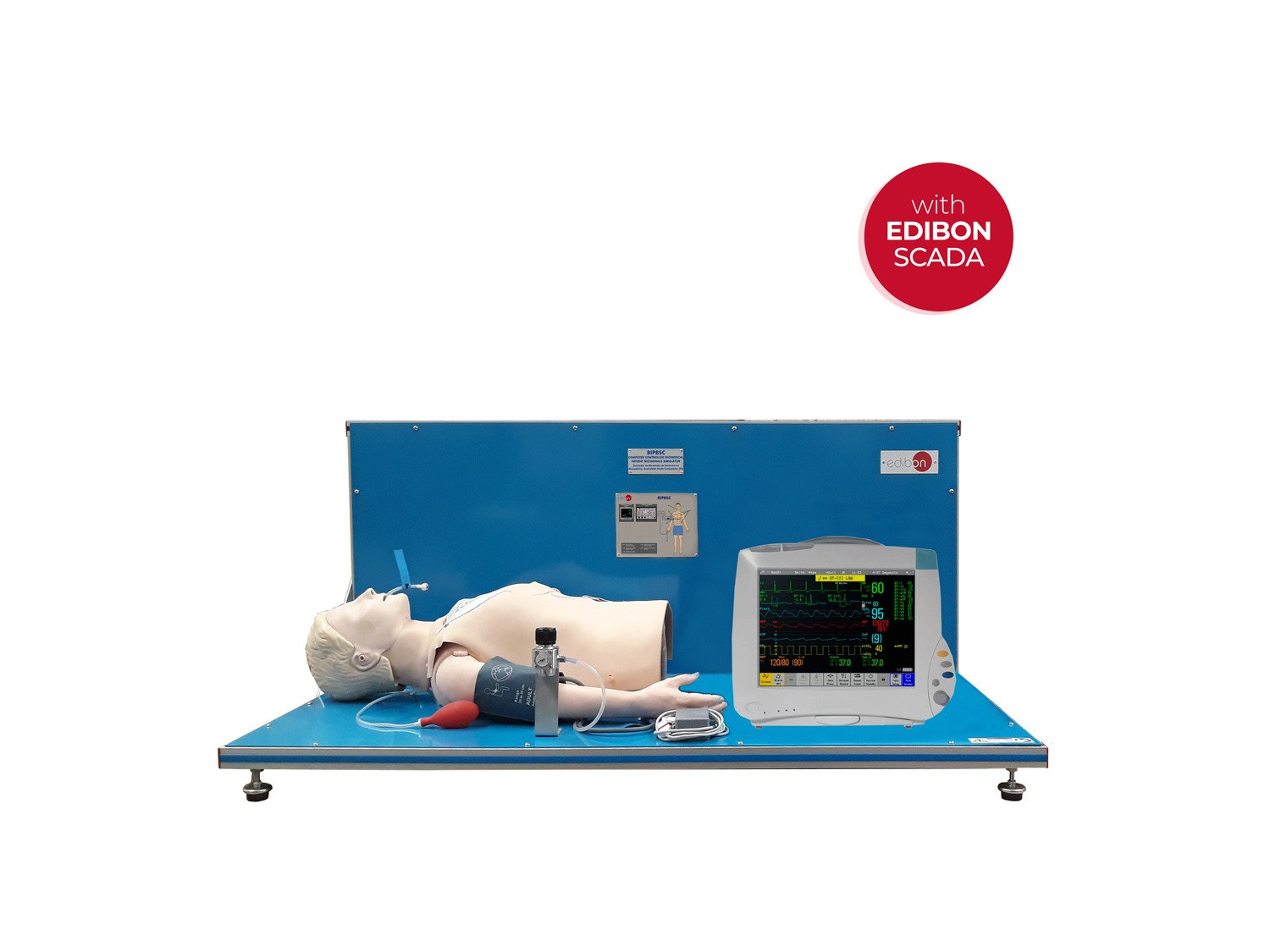

COMPUTER CONTROLLED BIOMEDICAL PATIENT BIOSIGNALS SIMULATOR - BIPBSC
COMPUTER CONTROLLED BIOMEDICAL PATIENT BIOSIGNALS SIMULATION UNIT - BIPBSC
COMPUTER CONTROLLED BIOMEDICAL PATIENT BIOSIGNALS SIMULATION UNIT - BIPBSC
COMPUTER CONTROLLED BIOMEDICAL PATIENT BIOSIGNALS SIMULATION UNIT - BIPBSC
COMPUTER CONTROLLED BIOMEDICAL PATIENT BIOSIGNALS SIMULATION UNIT - BIPBSC

創新系統

The Computer Controlled Biomedical Patient Bi-signals Simulator, "BIPBSC", designed by EDIBON, allows students to learn how to interpret and measure the most important biosignals: electrocardiogram (ECG), pulse oximetry (SpO₂), blood pressure (BP), and capnography (etCO₂).

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
ESN

EDIBON SCADA-Net

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
Biomedical engineering and its importance for the medical sector.
Biomedical engineering and its importance for the medical sector.
Biomedical engineering is an interdisciplinary field that synergizes principles from both engineering and biology to design, develop, and sustain technological solutions tailored for medical and healthcare applications.
阅读更多

一般說明

The Computer Controlled Biomedical Patient Bi-signals Simulator, "BIPBSC", designed by EDIBON, allows students to learn how to interpret and measure the most important biosignals: electrocardiogram (ECG), pulse oximetry (SpO₂), blood pressure (BP), and capnography (etCO₂), Blood Pressure (BP) and Capnography (etCO₂). A Patient simulator mimics the above-mentioned biological signals (among others) by means of a software with different programmable scenarios of healthy and ill patients. Also, a real vital signs patient monitor can be connected to the mannequin for the real measurement of the simulated signals.

The "BIPBSC-UB" is the base unit of the "BIPBSC" application.

The "BIPBSC-UB" includes the following elements:

  • BIPBSC-UC. Control Unit for BIPBSC.
  • BIPBSC-PS. Patient Simulator for BIPBSC.

Required elements of the "BIPBSC-UB" unit (Not included):

  • BI-PM. Biosignals Patient Monitor.
  • AEL-PC. Touch Screen and Computer.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

練習和指導練習

手册中包含的指导实践练习

  1. Basic principles of biosignals acquisition.
  2. Understanding of biosignal measuring devices.
  3. Interpretation of the ECG normal pattern.
  4. Analysis of ECG pattern changes.
  5. Interpretation of the SpO₂ normal pattern.
  6. Analysis of SpO₂ pattern changes.
  7. Interpretation of the etCO₂ normal pattern.
  8. Analysis of etCO₂ pattern changes.
  9. Interpretation of the non-invasive blood pressure normal pattern.
  10. Analysis of non-invasive blood pressure pattern changes.
  11. Interpretation of the invasive blood pressure normal pattern (ABP,PAP and CVP).
  12. Analysis of invasive blood pressure (ABP, PAP and CVP) pattern changes.
  13. Understanding the reaction that certain drugs have onbiopotentials.
  14. Cardiopulmonary resuscitation (CPR).
  15. Basic principles of pacemakers.
  16. Analysis of the patient ECG stimulated by a transcutaneous pacemaker.

与该单位进行更多实际操作

  1. Many students view results simultaneously.To view all results in real time in the classroom by means of aprojector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control.This unit allows intrinsically and/or extrinsically to change thespan, gains, proportional, integral, derivative parameters, etc,in real time.
  3. The Computer Control System with SCADA allows a realindustrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic,and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industrieseven to other Technical Education Institutions.
  7. Control of the BIPBSC unit process through the control interfacebox without the computer.
  8. Visualization of all the sensors values used in the BIPBSC unit process.
  9. Several other exercises can be done and designed by the user.
