POAC 计算机控制高级氧化设备
創新系統

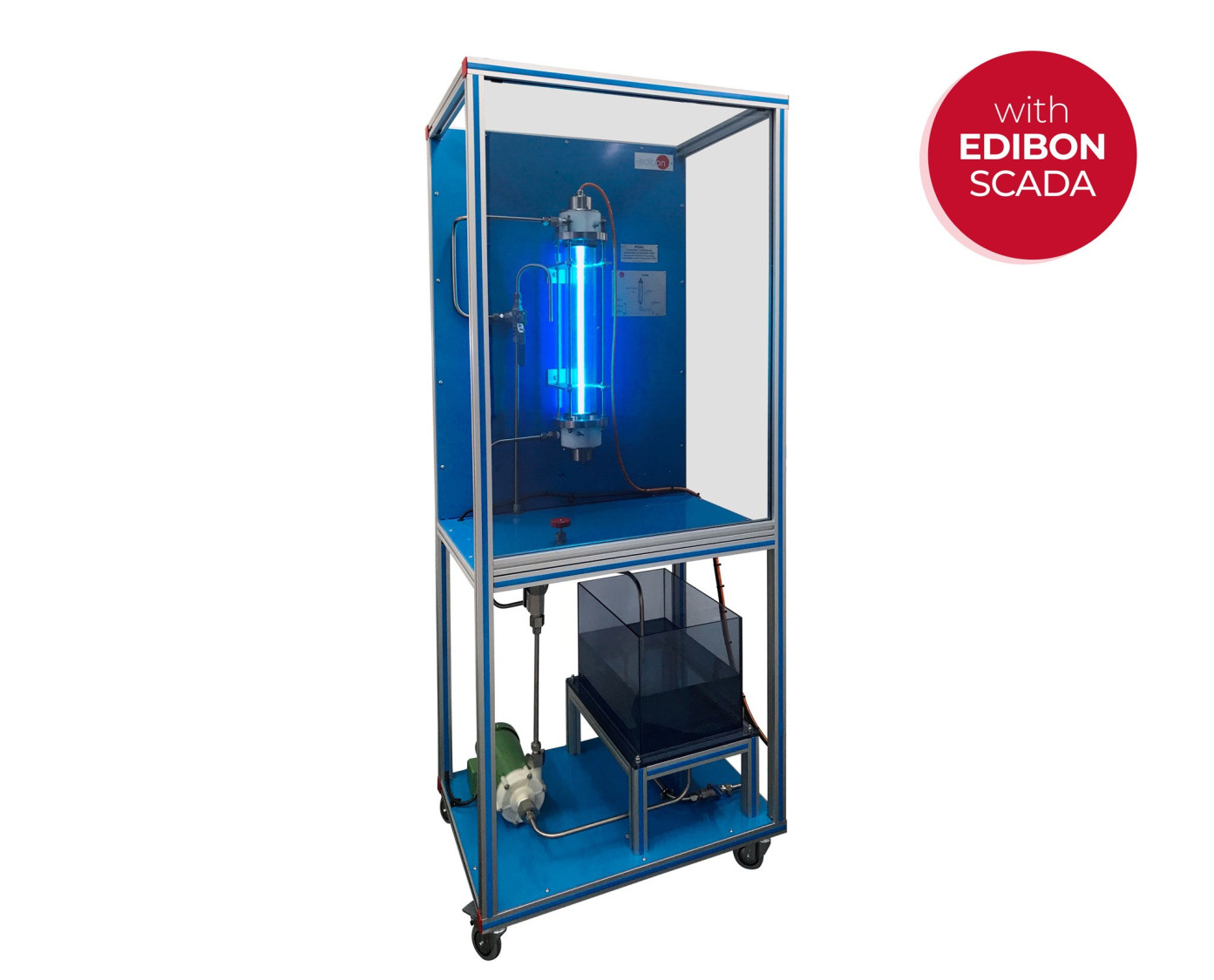

The Computer Controlled Advanced Oxidation Unit, "POAC", designed by EDIBON, allows to study advanced oxidation as a method to remove organic substances.
扩展
化验室
相關新聞
一般說明
The Computer Controlled Advanced Oxidation Unit, "POAC", designed by EDIBON, generates hydroxyl radicals (OH-) through ultraviolet light radiation with hydrogen peroxide.

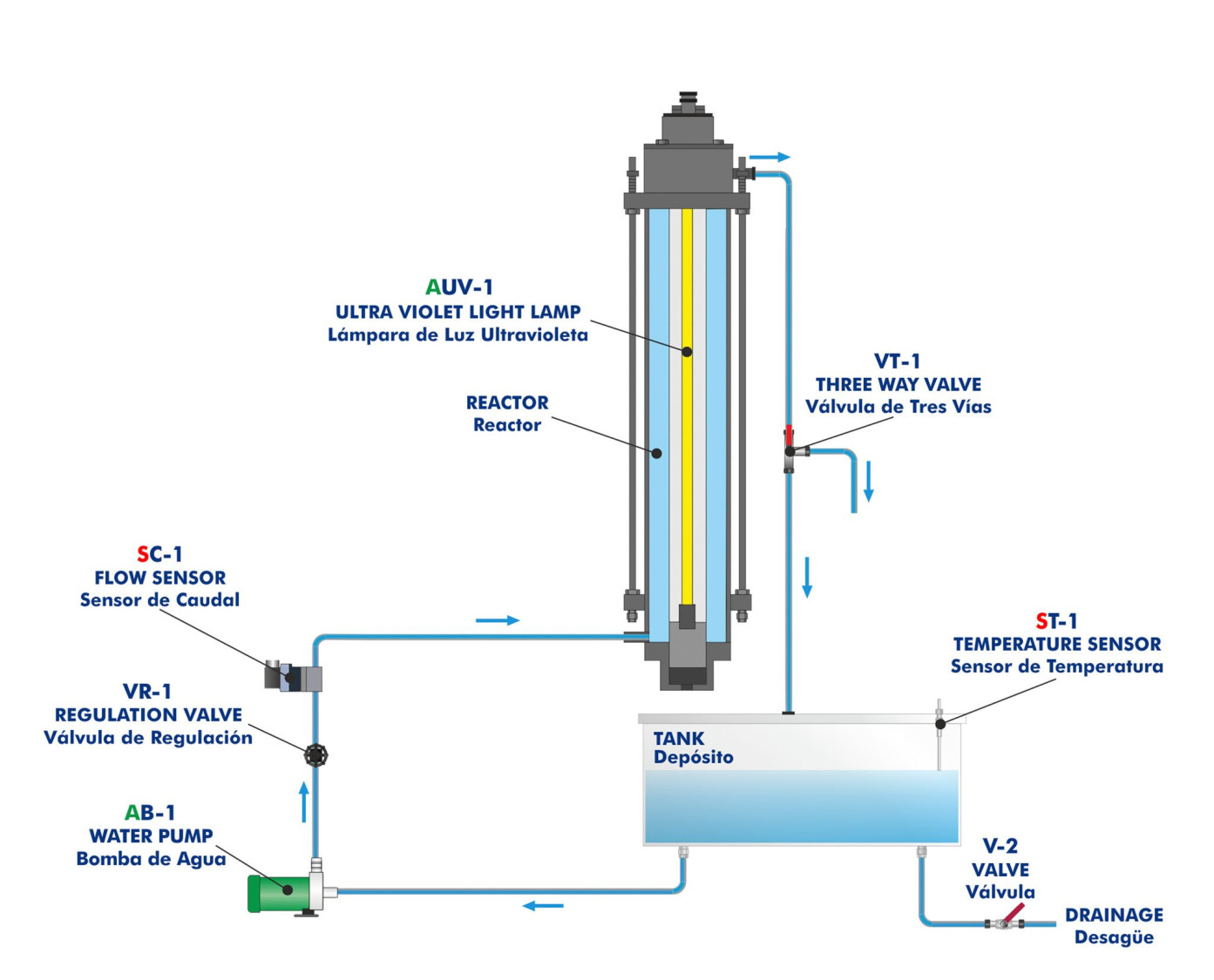

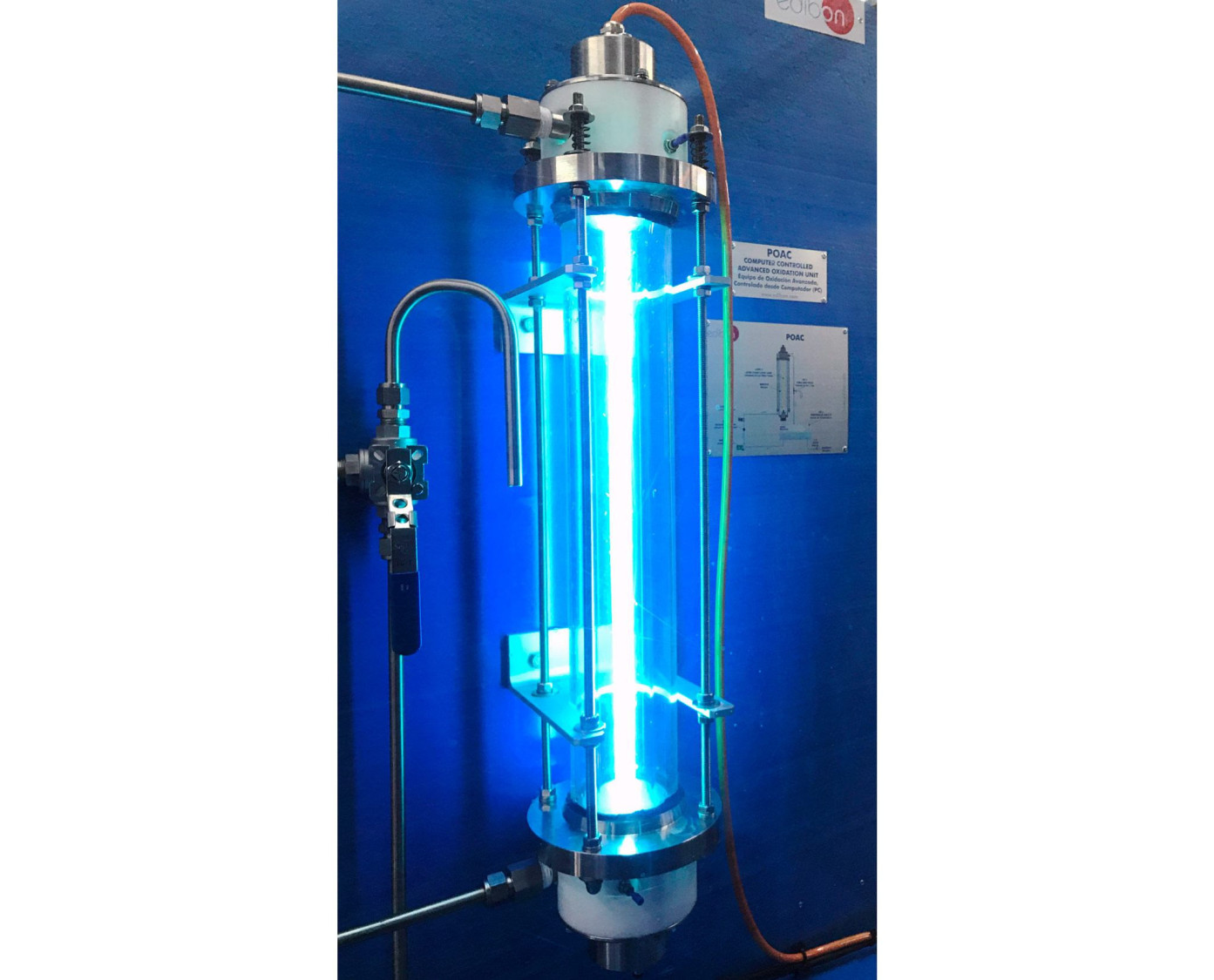

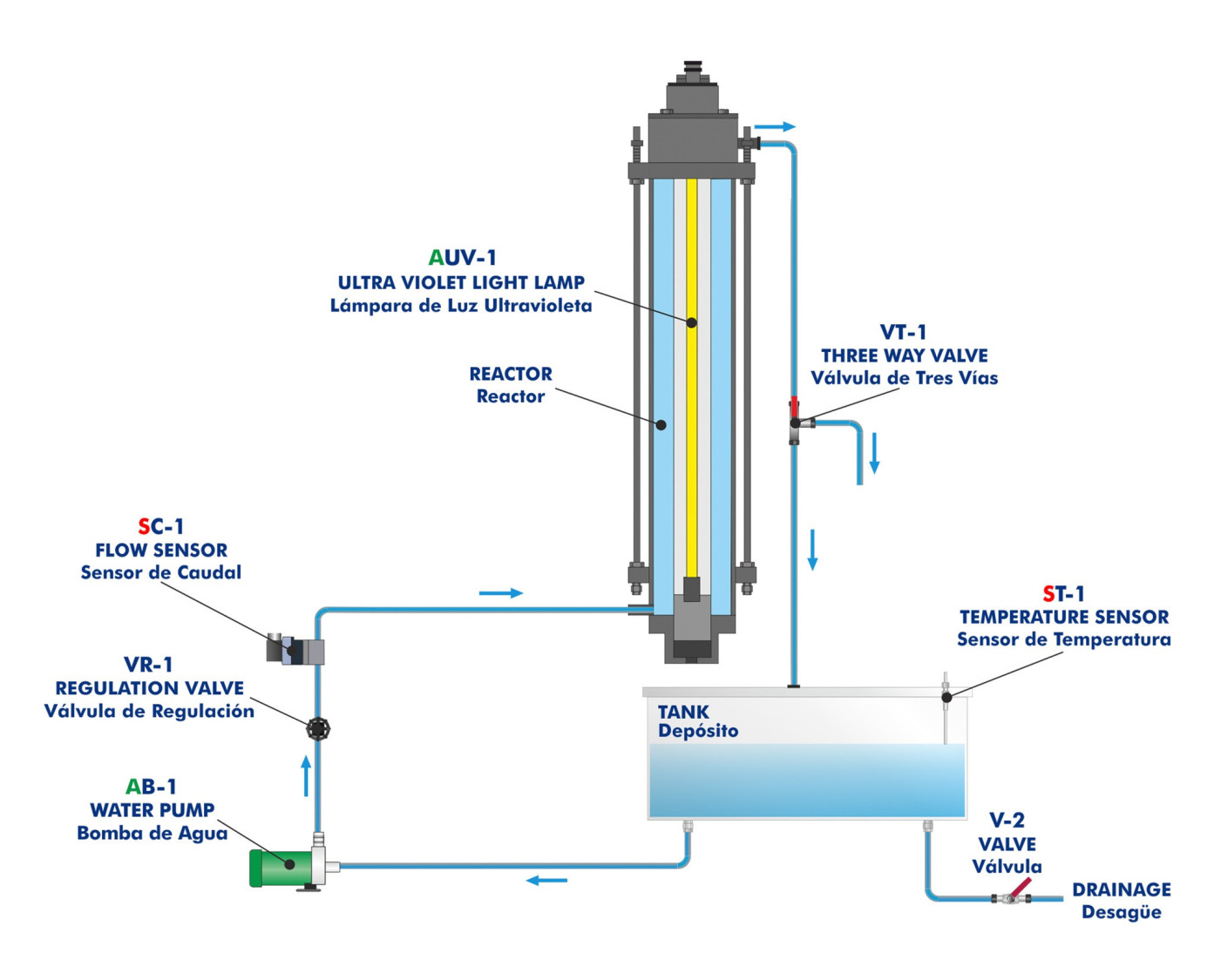

Raw water is enriched with hydrogen peroxide in a transparent tank and is driven by a computer controlled pump towards a reactor where an ultraviolet lamp with protective tube made of quartz is lodged.
The reactor has a manifold at its lower part that allows the flow of raw water forming a rising film on the inner walls of the reactor. As it ascends, it receives ultraviolet light radiation, forming hydroxyl radicals, which oxidize non-biodegradable soluble substances from the water to be treated.
The reactor is open by its lower side. Water flows towards the tank, forming a closed circuit. A flow sensor allows to measure the raw water flow rate through the circuit.

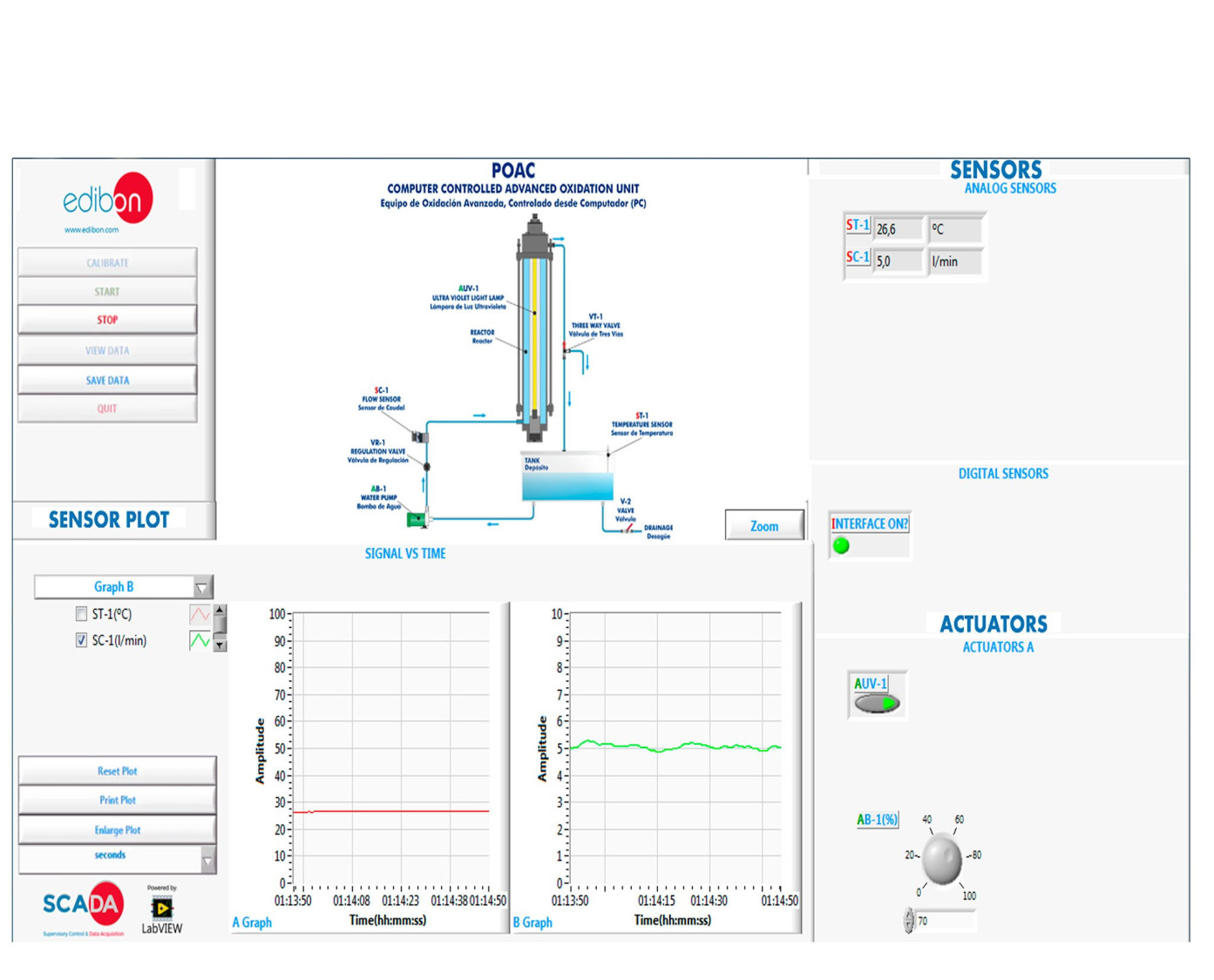

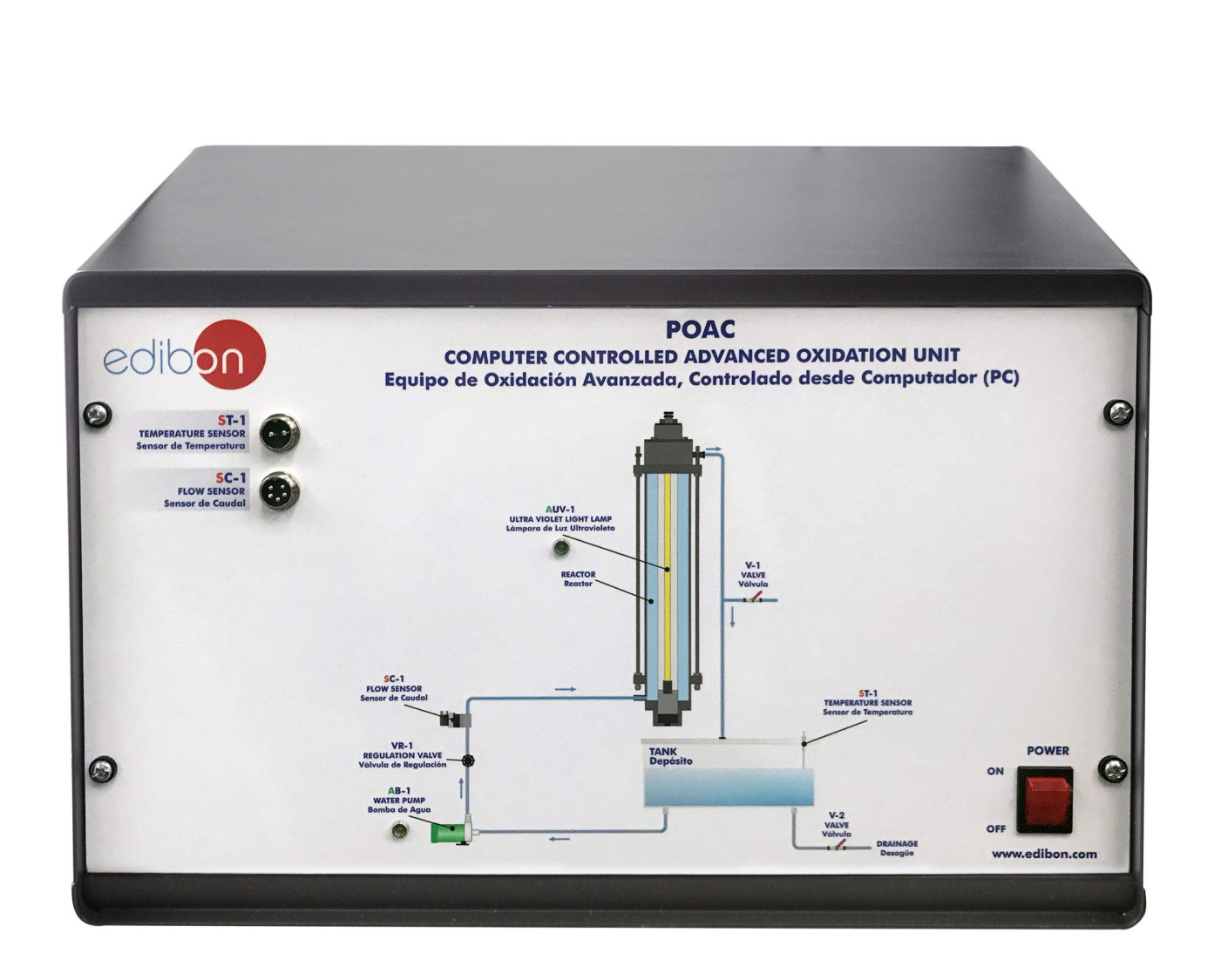

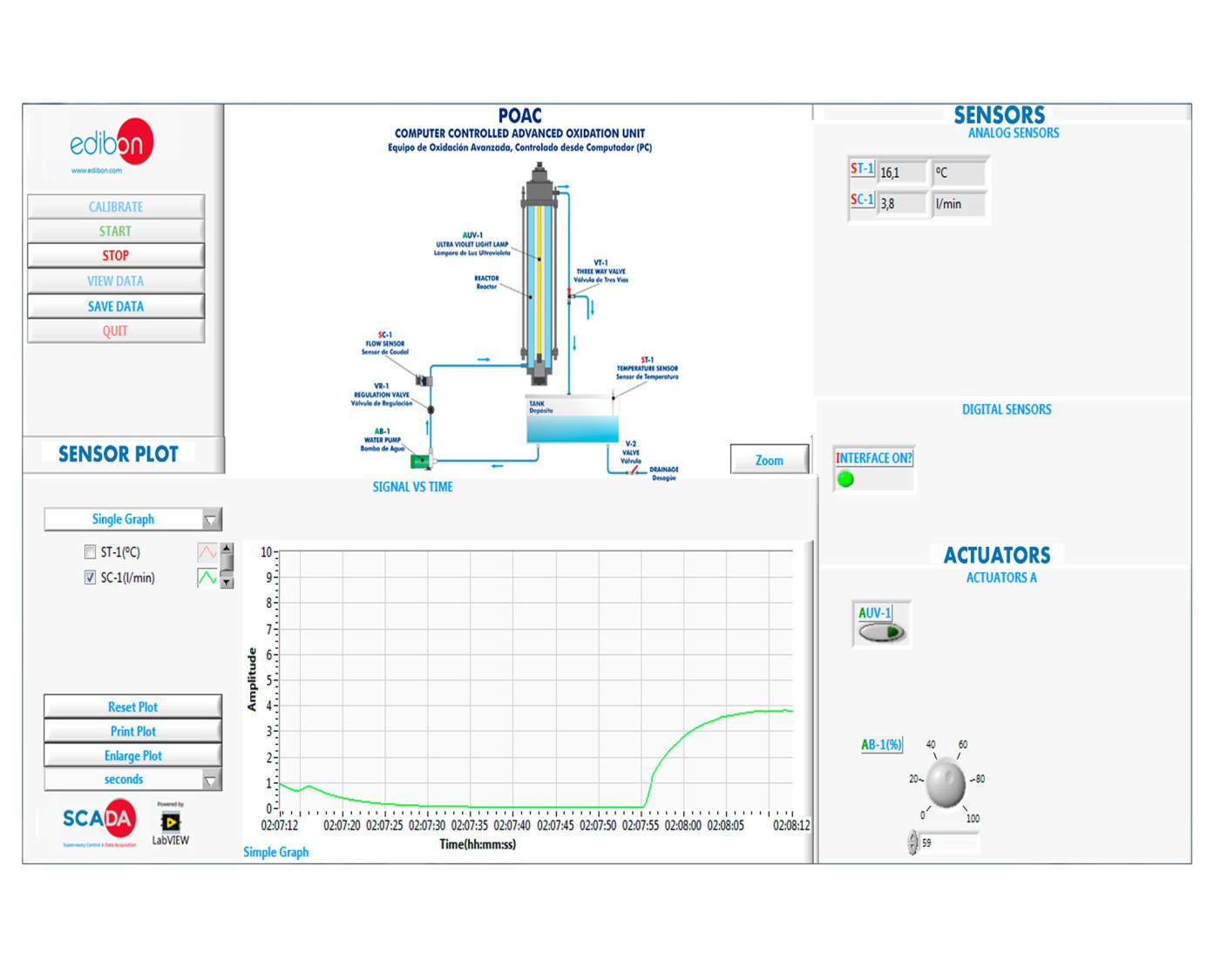

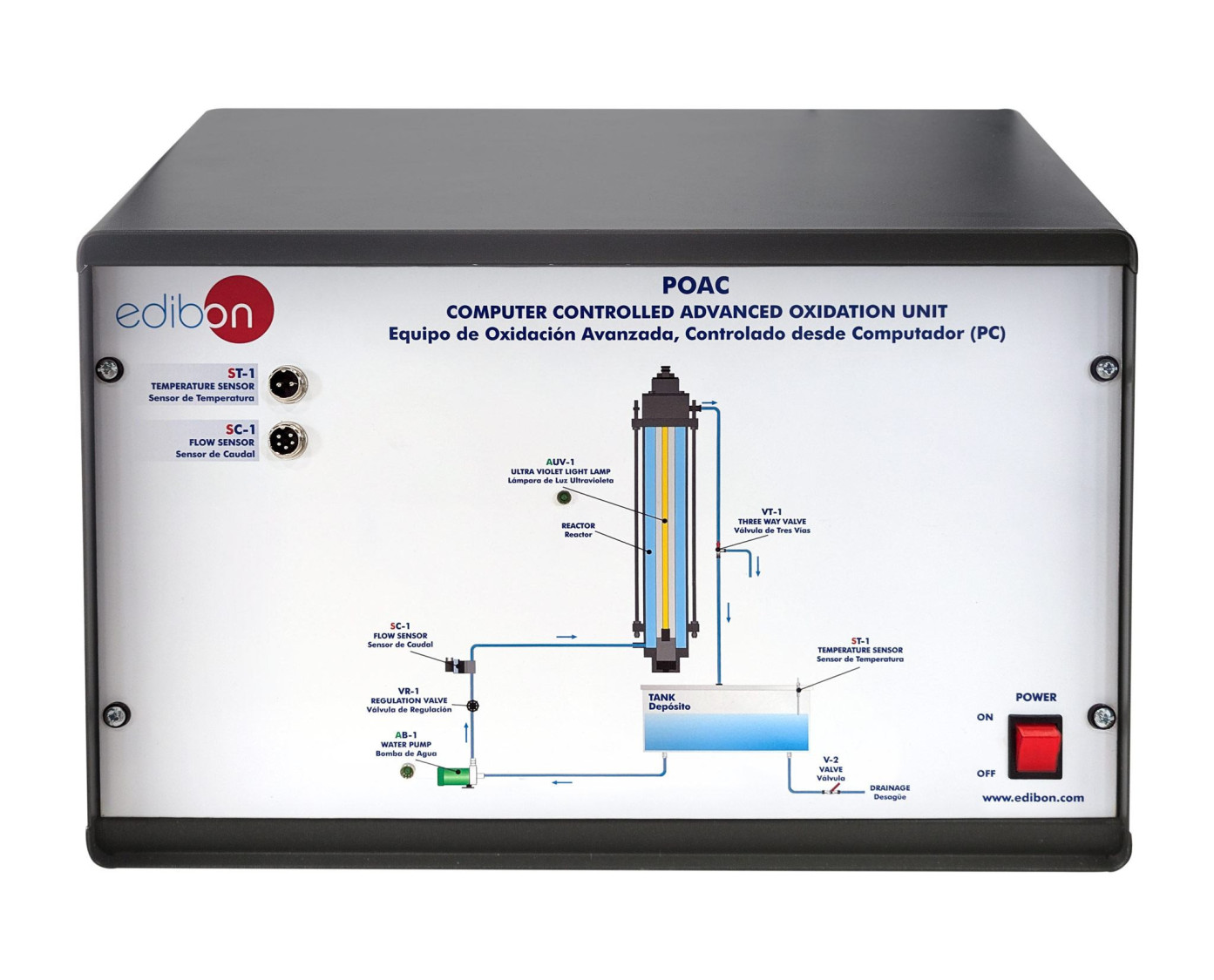

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
練習和指導練習
手册中包含的指导实践练习
- Study of advanced oxidation process for wastewater treatment.
- Study of advanced oxidation with hydrogen peroxide and UV light.
- Influence of the amount of hydrogen peroxide in the oxidation process.
- Analysis of the reaction kinetics.
与该单位进行更多实际操作
- Sensors calibration.
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains: proportional, integral, derivative parameters, etc. in real time.
- The Computer Control System with SCADA allows a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industrieseven to other Technical Education Institutions.
- Control of the POAC unit process through the control interfacebox without the computer.
- Visualization of all the sensors values used in the POAC unitprocess.
- By using PLC-PI additional 19 more exercises can be done.
- Several other exercises can be done and designed by the user.
