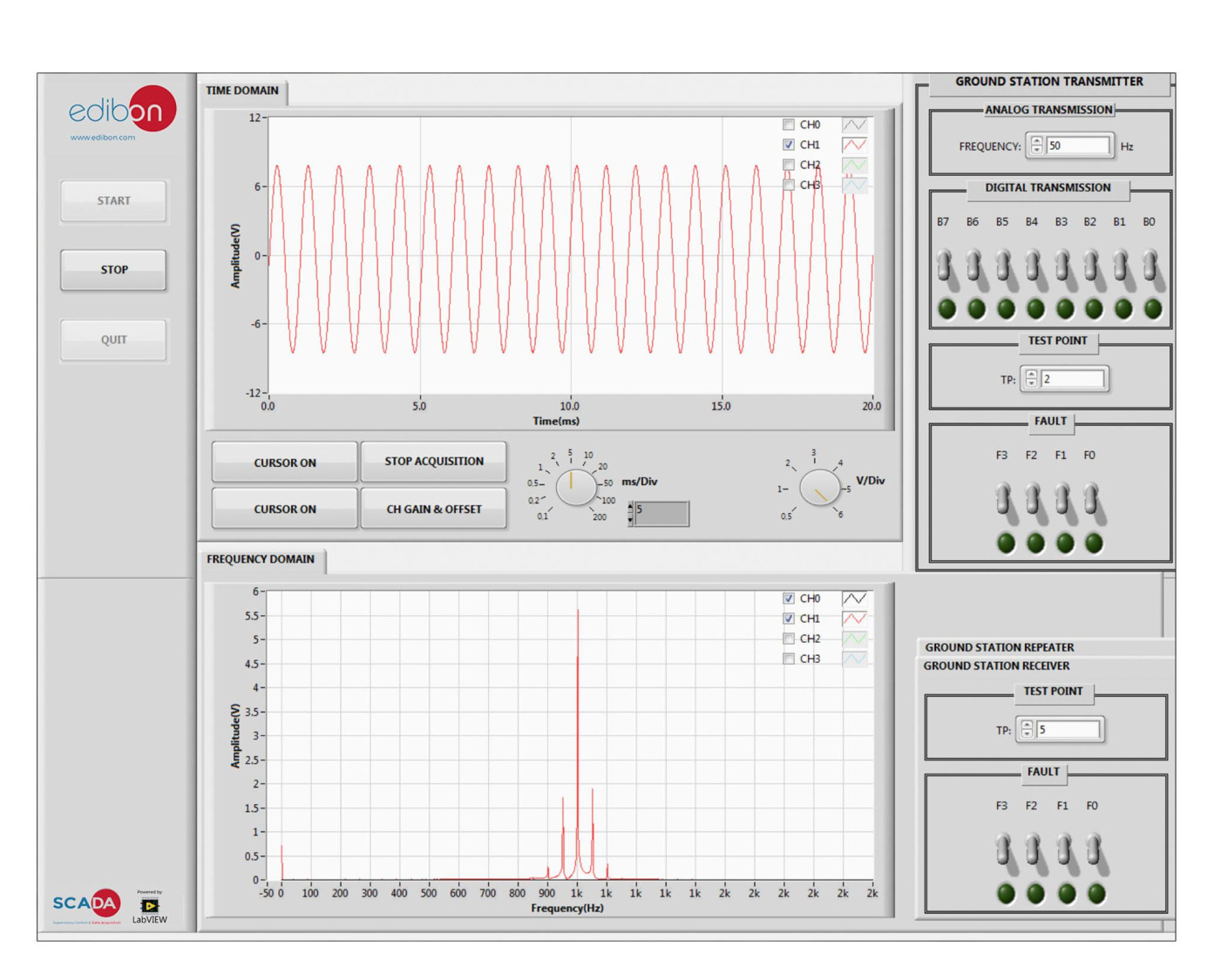

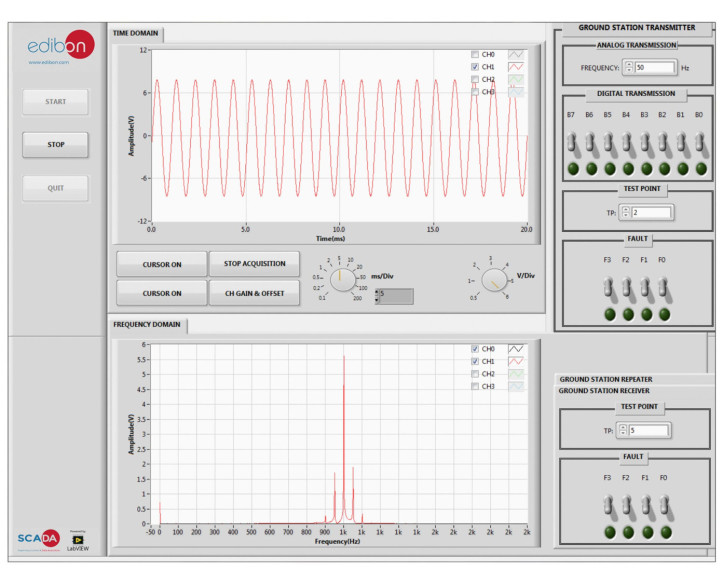

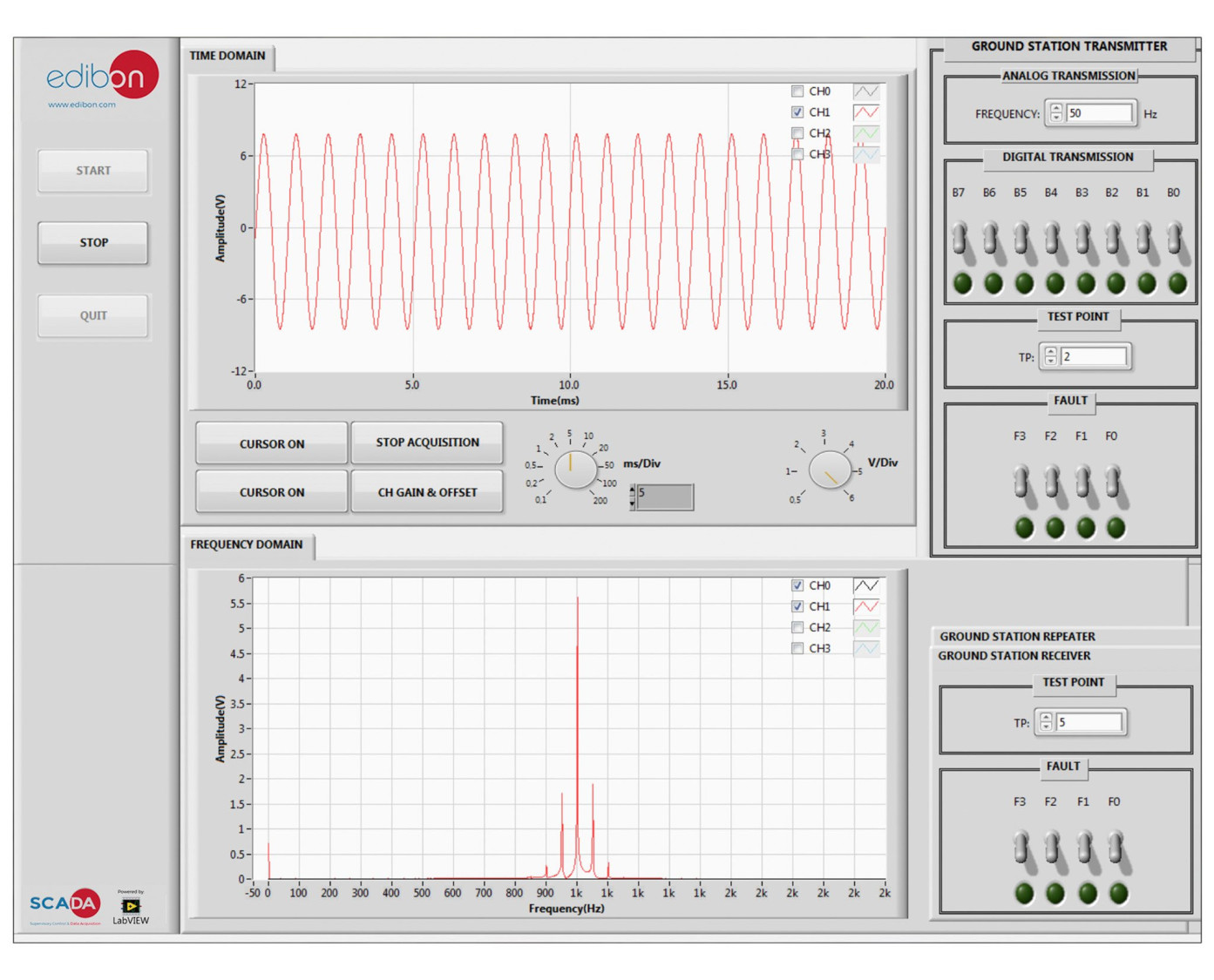

ESA/SOF. ESA Software. Main Screen

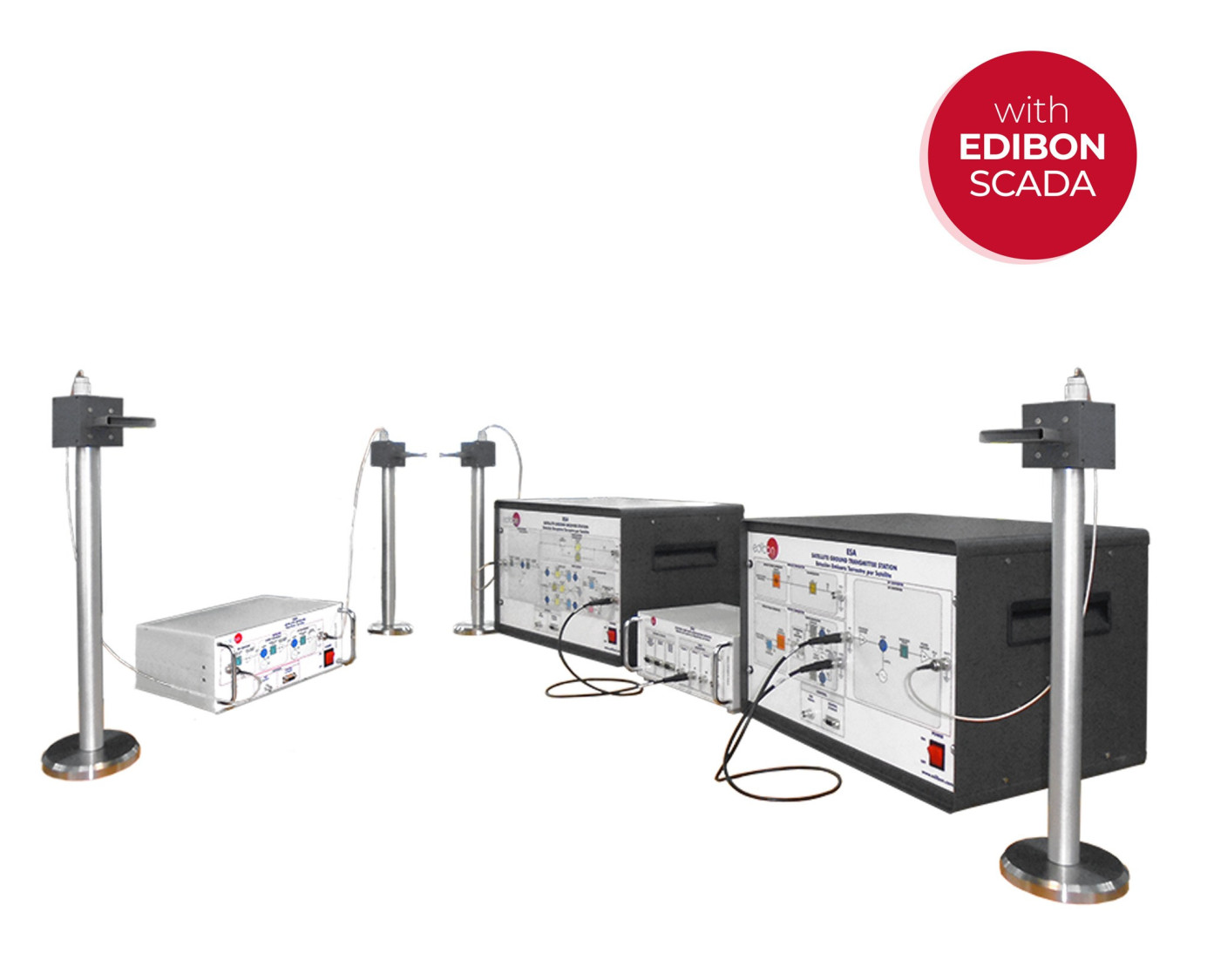

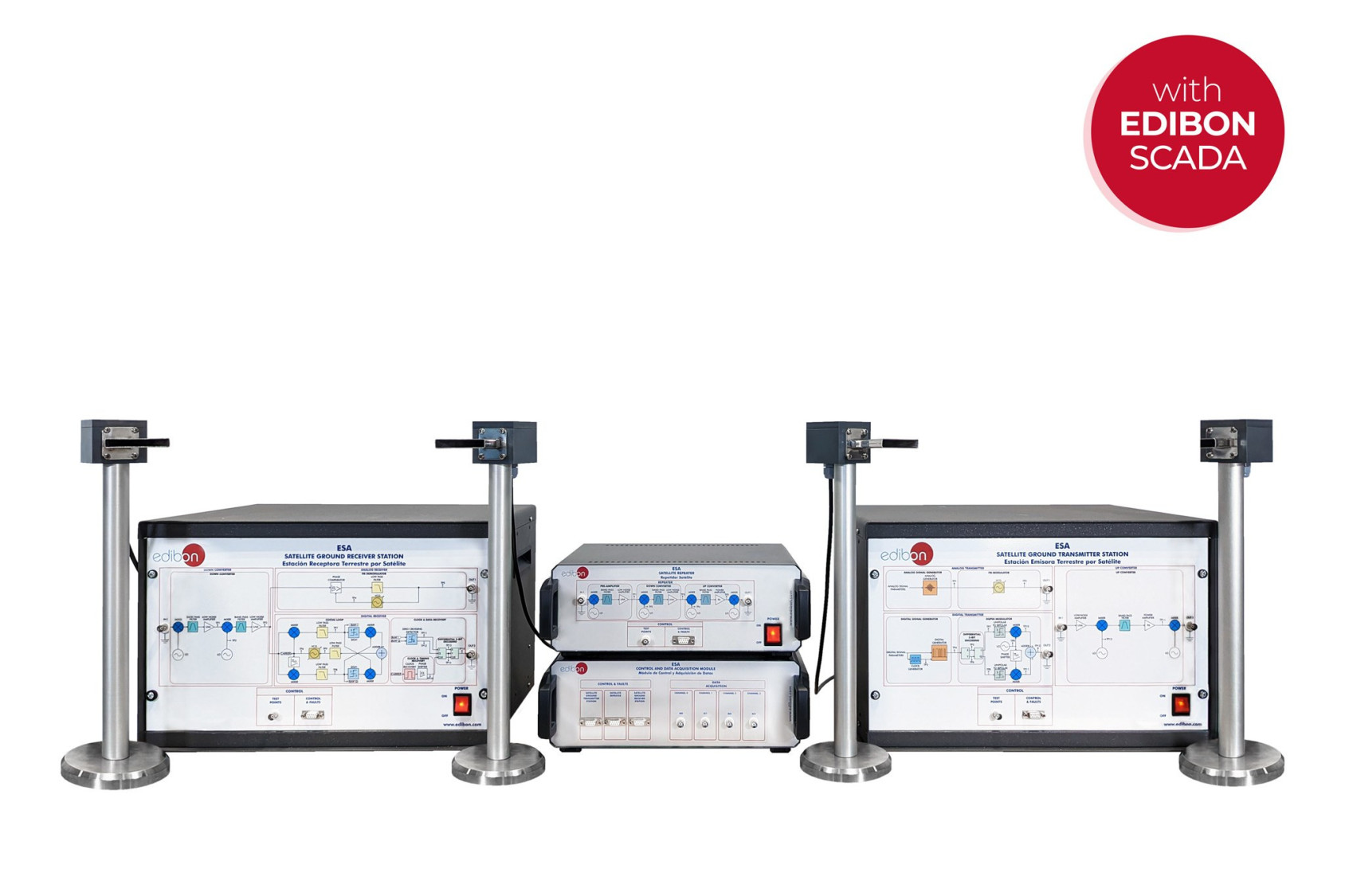

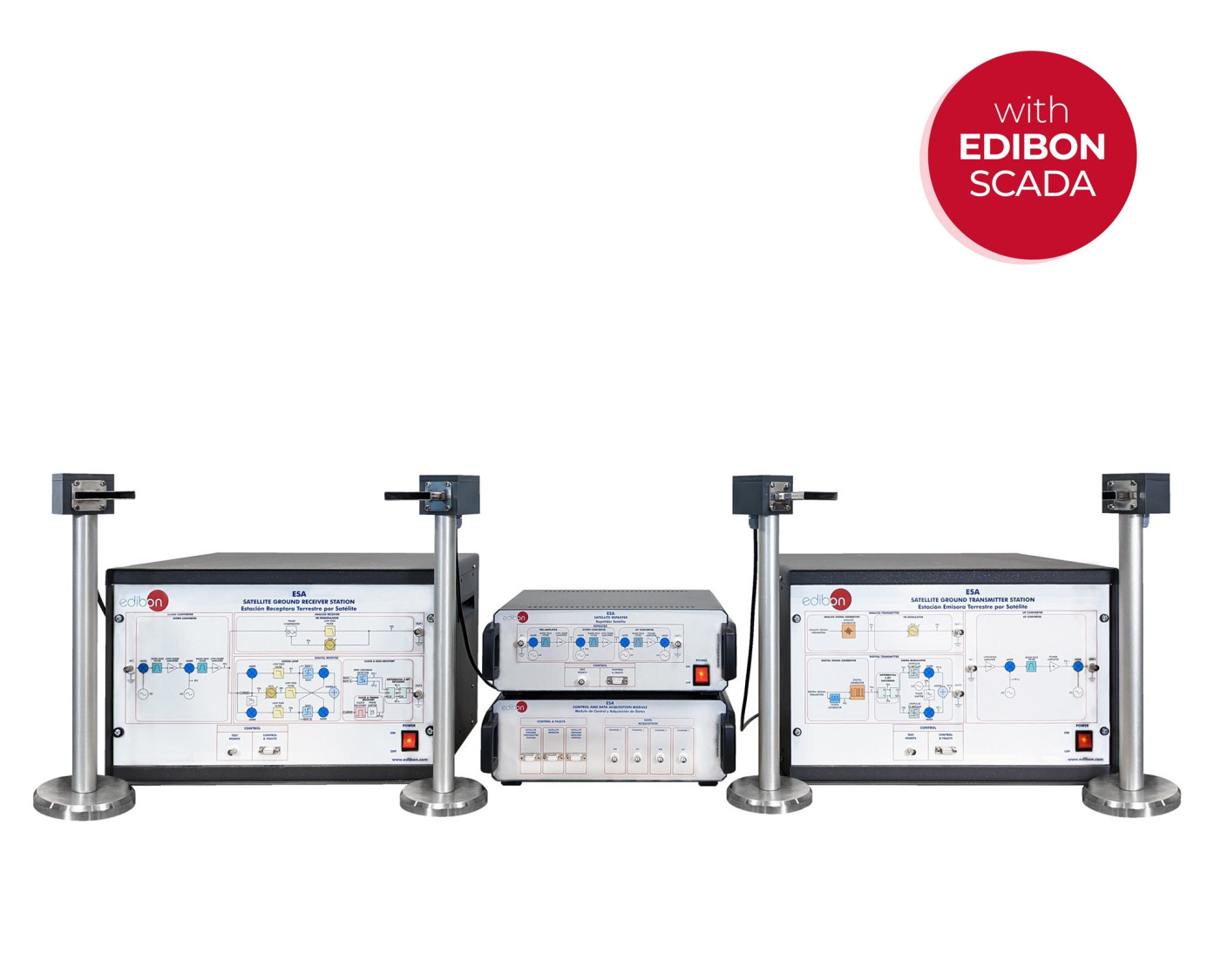

SATELLITE UNIT - ESA
COMPUTER CONTROLLED SATELLITES UNIT - ESA
COMPUTER CONTROLLED SATELLITES UNIT - ESA

INNOVATIVE SYSTEME

The Computer Controlled Satellite Unit, "ESA" designed by EDIBON, enables the study of modern satellite telecommunications systems (SATCOM), providing a practical understanding of their structure, operation, and logic through the analysis of the transmission and reception signal phases.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
ESN

EDIBON SCADA-Net

Laboratorien

3TV
 Telekommunikationslabor für Technische und Berufliche Bildung
3HE
 Telekommunikationslabor für die Hochschulbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Communication aspects of Unmanned Aircraft System (UAS)
Communication aspects of Unmanned Aircraft System (UAS)
The Unmanned Aircraft System (UAS) sector is currently expanding, particularly in the civil or commercial sector, although the UAS government sector has been experiencing a high growth rate in the last few years.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

The Computer Controlled Satellite Unit, "ESA" designed by EDIBON, enables the study of modern satellite telecommunications systems (SATCOM), providing a practical understanding of their structure, operation, and logic through the analysis of the transmission and reception signal phases.

Thanks to its control software, the unit allows users to configure data transmission parameters, simulate failures, select test points, and monitor the real-time performance of the SATCOM system.

The unit is composed of three main blocks that interact with the software:

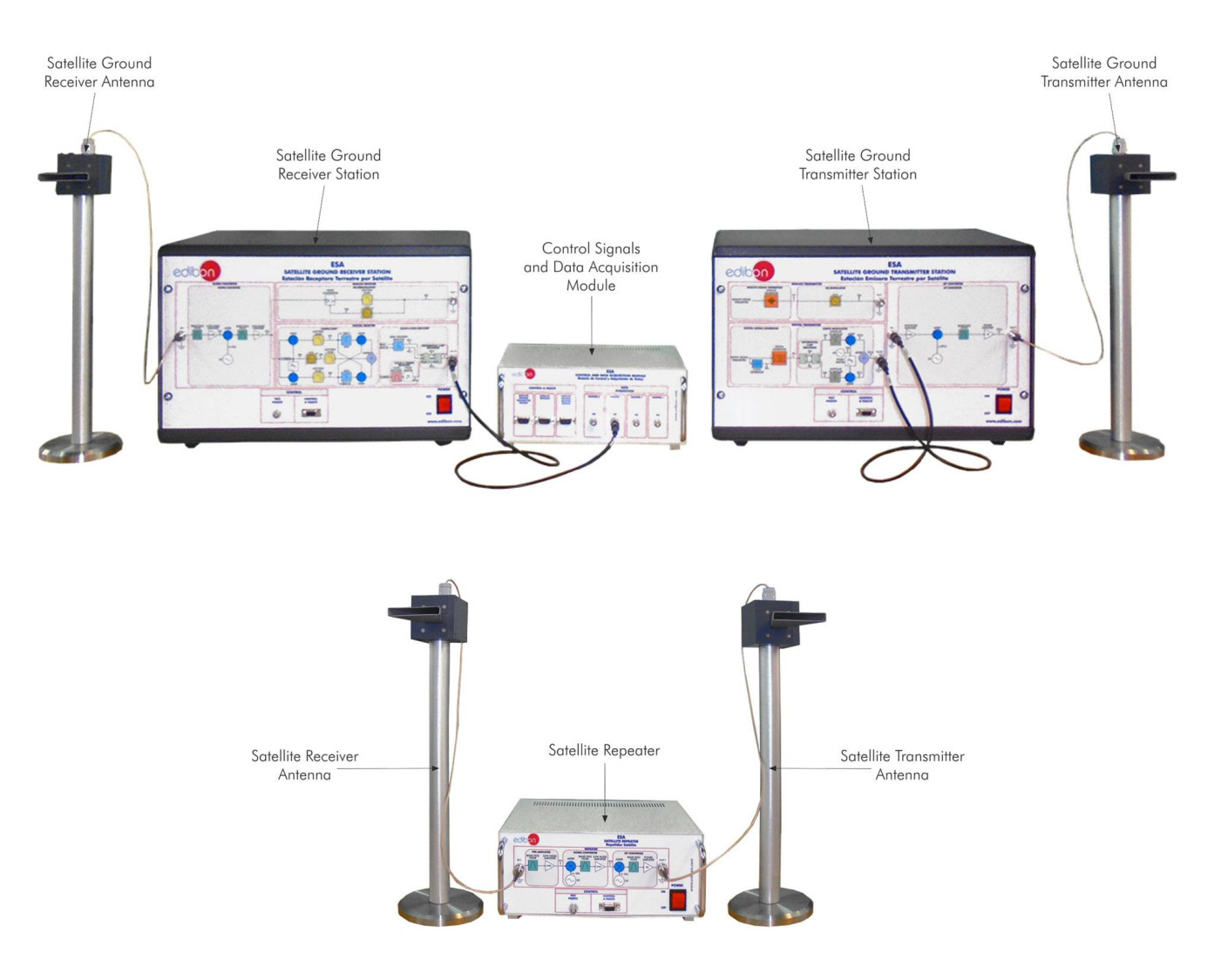

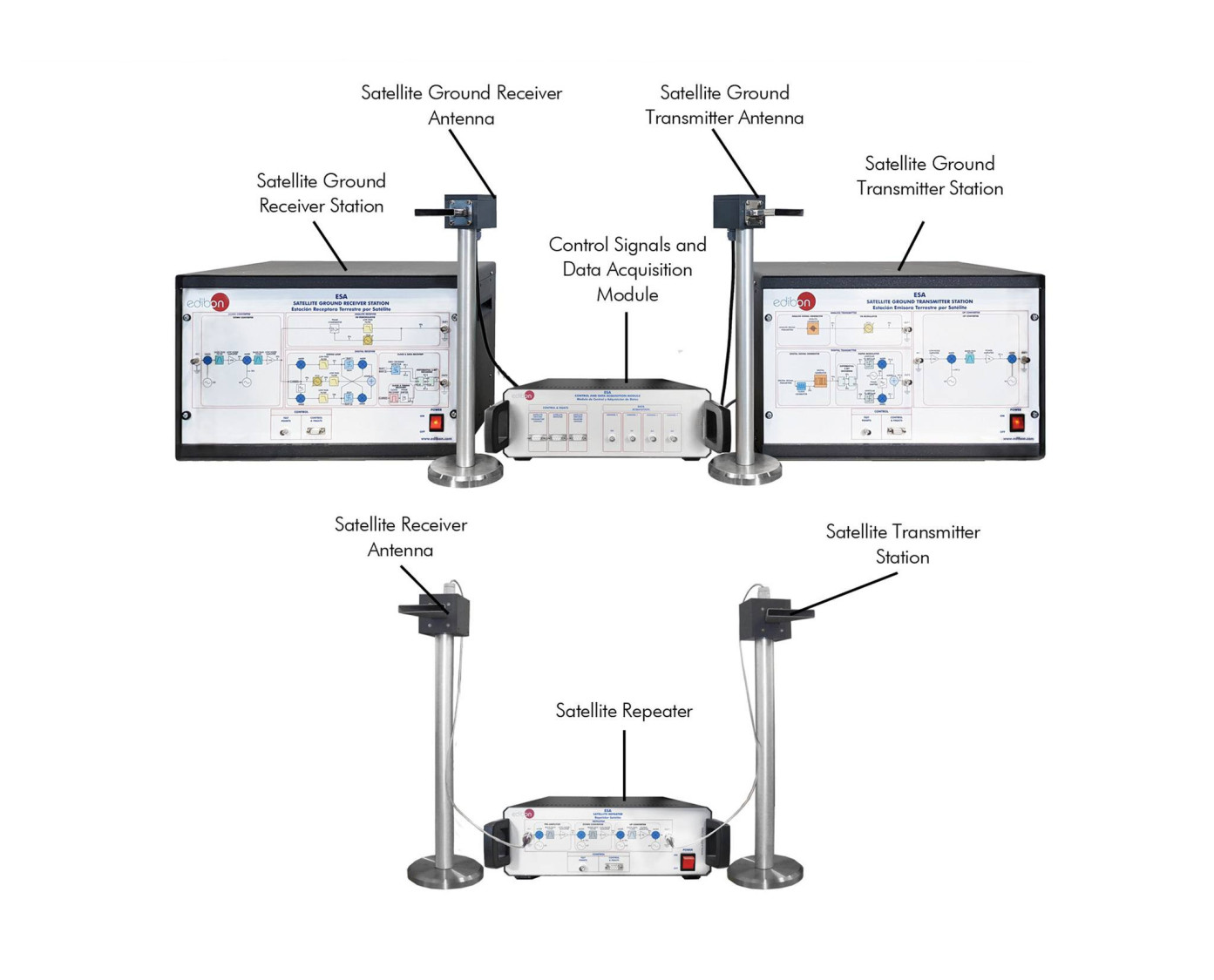

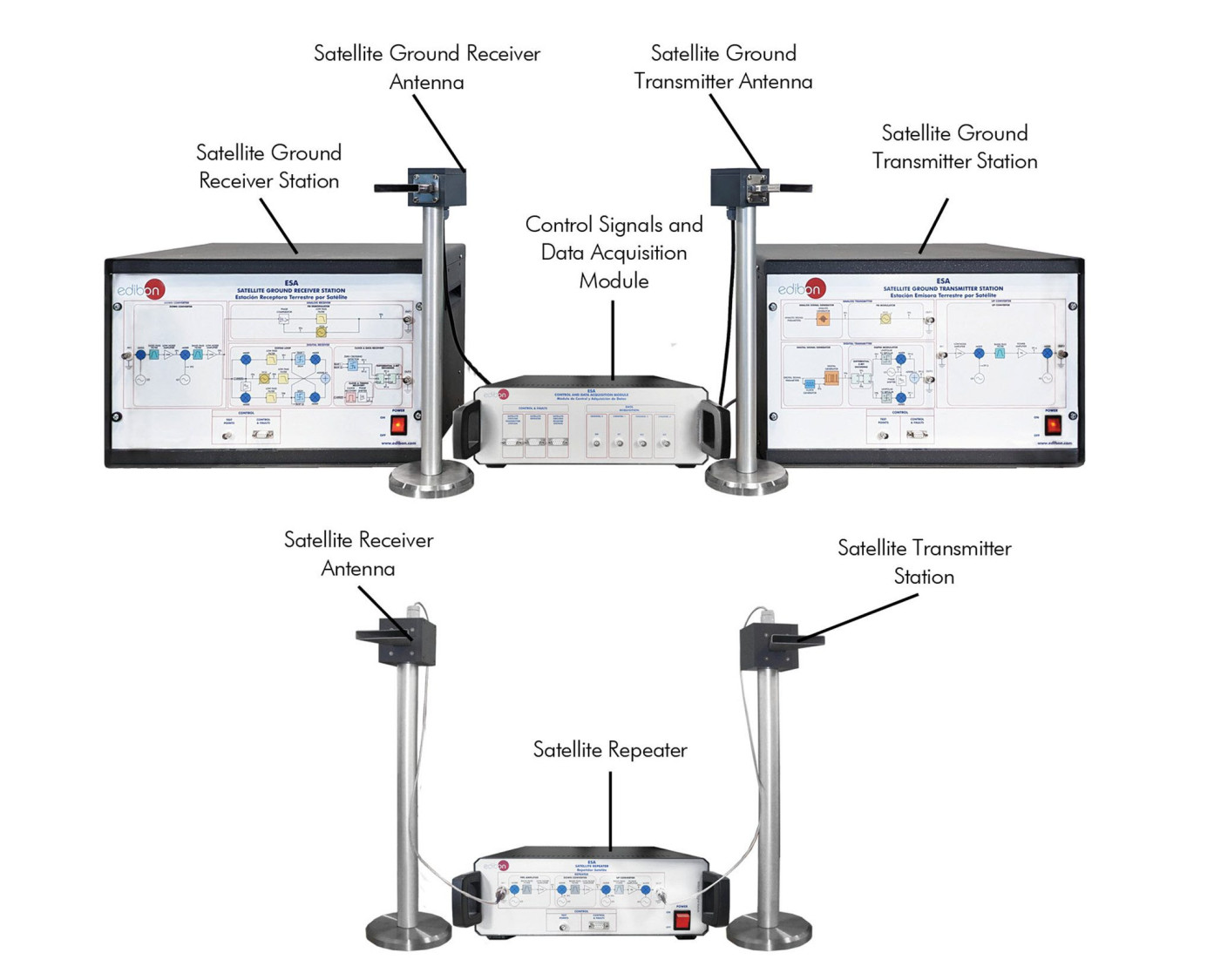

  • Earth station transmission block: emulates a ground-based transmitting station that generates and sends signals to the satellite via its antenna, reproducing a real uplink connection.
  • Satellite repeater block: emulates the behavior of an active satellite, receiving, amplifying, processing, and retransmitting the signal from the ground station on a different frequency, as in real satellite communication systems.
  • Earth station reception block: represents the ground-based receiving station that captures the processed signal from the satellite,enabling its analysis, monitoring, and evaluation through the control software.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Signals and Data Acquisition Module + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Study of the operation principles of a satellite communication system.
  2. Basic principles of analog modulation, frequency modulation (FM).
  3. Basic principles of analog demodulation, frequency modulation (FM).
  4. Basic principles of digital modulation, differential quadrature phase shift keying (DQPSK).
  5. Basic principles of digital demodulation, differential quadrature phase shift keying (DQPSK).
  6. Study of the characteristics of the Satellite Ground Transmitter Station, Satellite Repeater and Satellite Ground Receiver Station.
  7. Study of the communication system through a Satellite Repeater performing the uplink and downlink.
  8. Performing data transfers through a satellite communication system (Satellite Ground Transmitter Station–Satellite Repeater- Satellite Ground Receiver Station).
  9. Study of the quality of the data transmission link.
  10. Analysis of the system response with different fault insertions in the Satellite Ground Transmitter Station.
  11. Analysis of the system response with different fault insertions in the Satellite Repeater.
  12. Analysis of the system response with different fault insertions in the Satellite Ground Receiver Station.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the ESA unit process through the Control Signals and Data Acquisition Module without the computer.
  8. Several other exercises can be done and designed by the user.
