RYC-C Gerät für PID-Regelung und -Steuerung des Durchflusses

2.4.1.- INSTRUMENTATION & KONTROLLE 6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN 10.1.- THEORETISCH - PRAKTISCHE GRUNDLAGEN 14.2.2.- INSTRUMENTATION & KONTROLLE
FLOW RATE CONTROL MODULE - RYC-C

INNOVATIVE SYSTEME

The PID Flow Control and Regulation Unit, "RYC-C", designed by EDIBON, allows the study of flow control in a closed hydraulic circuit.

Allgemeine Beschreibung anzeigen
Katalog Katalog
Wettbewerbsspezifikationen
Informationen anfordern

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
EMAK

EDIBON Kit für Matlab

Laboratorien

6TV
 Labor für Mechatronik und Automation für die Technische und Berufliche Bildung
6HE
 Mechatronik- und Automatisierungslabor für die Hochschulausbildung
2TV
 Elektroniklabor für technische und berufliche Bildung
2HE
 Elektroniklabor für die Hochschulausbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

The future of Process Control: Innovation, training, and the industry 4.0 revolution
The future of Process Control: Innovation, training, and the industry 4.0 revolution
Automation and process control have been fundamental pillars in the evolution of both industry and scientific research. With the advent of Industry 4.0, the integration of new technologies has driven an unprecedented transformation in the way industrial and research systems operate, optimize...
Lesen Sie mehr
What is Process Control, and Why is It Essential in Modern Industry?
What is Process Control, and Why is It Essential in Modern Industry?
Today, automation and efficiency are key factors in industrial and scientific development. Process control plays a crucial role in this context by enabling the monitoring, regulation, and optimization of industrial systems and processes, ensuring they operate efficiently, safely, and consistently.
Lesen Sie mehr
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lesen Sie mehr
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

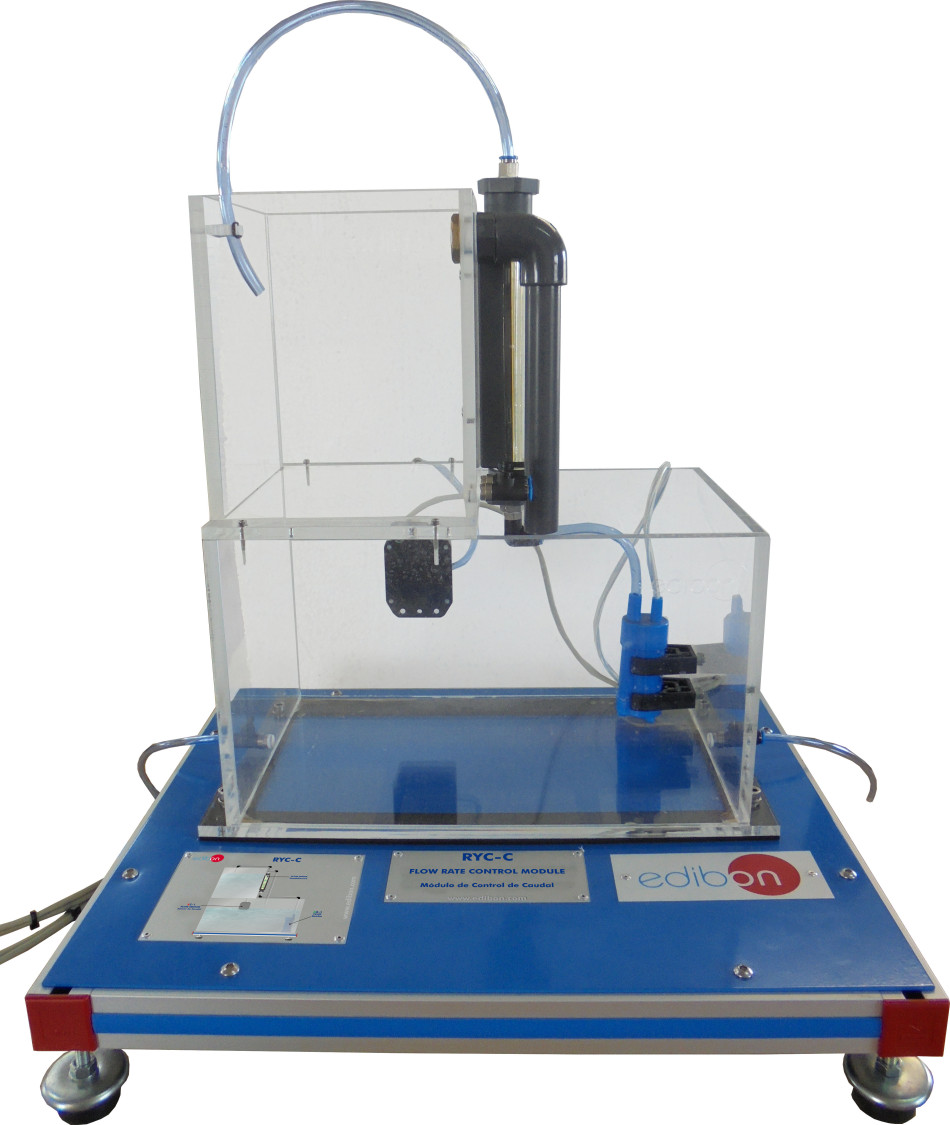

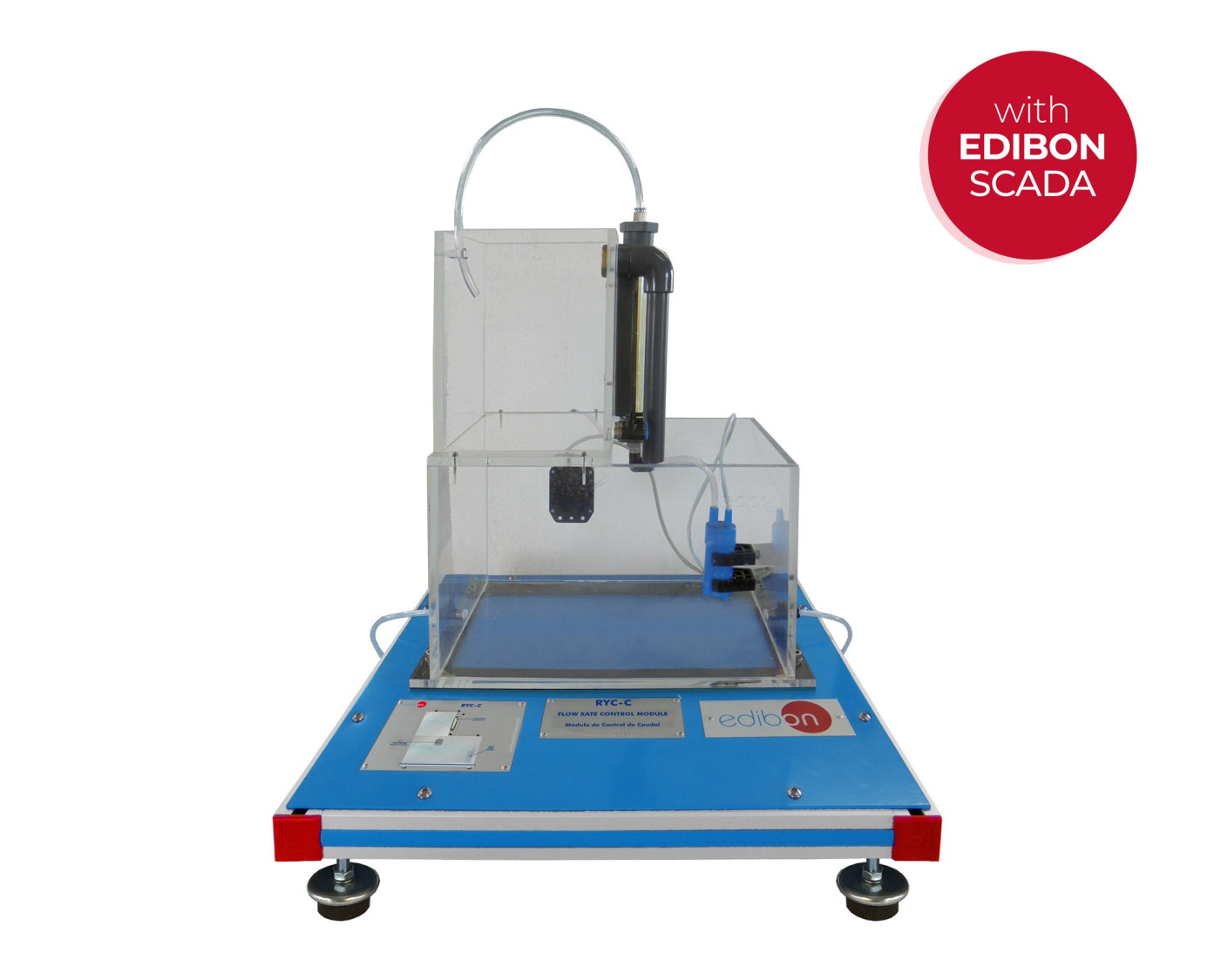

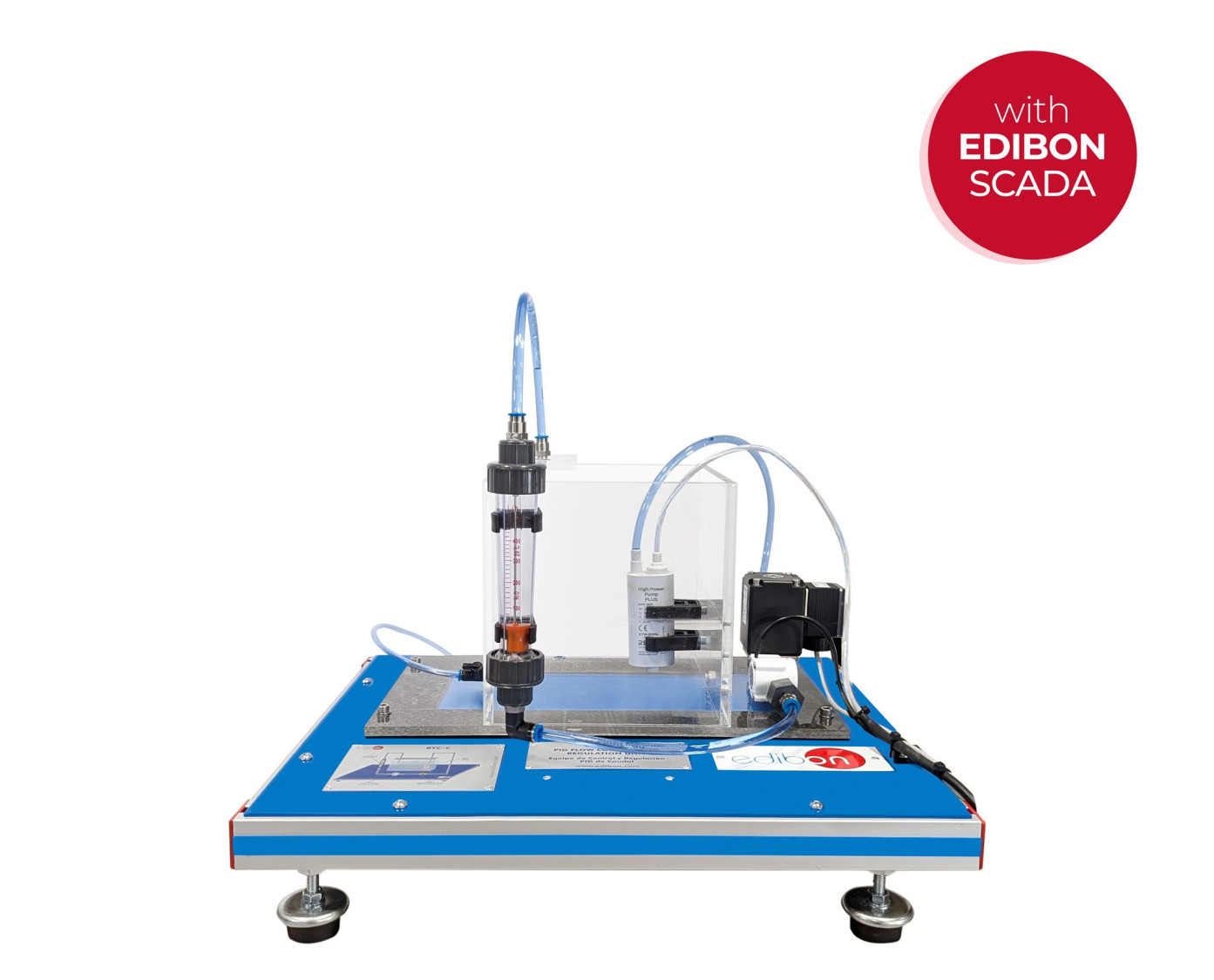

The PID Flow Control and Regulation Unit, "RYC-C", designed by EDIBON, allows the study of flow control in a closed hydraulic circuit. It includes a pump, a flowmeter, and an electronic proportional valve that regulates the flow. The unit allows analyzing flow dynamics, the response of the flow to setpoint changes, and the influence of external disturbances. Phenomena such as head losses, fluid inertia, and transient behavior can be studied.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Familiarization with the main unit components.
  2. Analysis of the water flow rate as a function of the proportional valve operation.
  3. PID control of the water flow rate using the proportional valve (open-loop).
  4. PID control of the water flow rate using the proportional valve (closed-loop).
  5. Analysis of the different system responses to changes in the PID parameters.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Analyze the transient response of the system.
  2. Analyze the system response in open loop.
  3. Analyze the system response in closed loop.
  4. Flow rate control with a P, PI, PD and PID controller.
  5. Setting and optimizing the parameters of the PID control.
  6. Analysis of the different responses of the system to modifications of PID parameters.
  7. Study of the disturbances in a controlled system with a PID controller.

Other possibilities to be done with this RYC unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  4. This unit can be used for doing applied research.
  5. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  6. Control of the RYC unit process through the control interface box without the computer.
  7. Visualization of all the sensors values used in the RYC unit process.
  8. Several other exercises can be done and designed by the user.

ERFORDERLICHE ELEMENTE

QUALITÄT

KUNDENDIENST

Informationen anfordern
