COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

CTAC

Available

6.1.1.3.- INDUSTRIELLE SYSTEMANWENDUNGEN

CTAC

Gekoppeltes Tanksystem, gesteuert über Computer (PC)

The Computer Controlled Coupled Tanks System, "CTAC", consists of four transparent tanks, each with a pressure sensor to measure the water level.The coupling configuration between tanks can be modified by the use of computer controlled solenoid...

COMPUTER CONTROLLED TEACHING UNIT FOR THE STUDY OF REGULATION AND CONTROL - RYC

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

RYC

Gerät zur Untersuchung von Regelung und Steuerung, computergesteuert (PC)

The Computer Controlled Teaching Unit for the Study of Regulation and Control, "RYC", is designed by EDIBON is common to all "RYC" type unit and constitutes the base unit for performing regulation and automatic control practices. It is organized...

RYC-BB

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

RYC-BB

Gerät für PID-Regelung und -Steuerung eines Stab-Kugel-Systems

The PID Control and Regulation Unit of a Ball and Beam System, "RYC-BB", designed by EDIBON allows the study of a classical unstable dynamic process in automatic control. It consists of a beam driven by a motor that regulates its inclination, on...

RYC-C

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

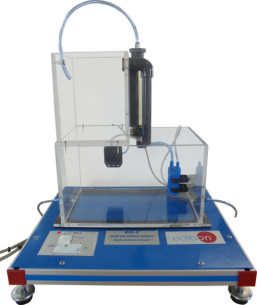

RYC-C

Gerät für PID-Regelung und -Steuerung des Durchflusses

The PID Flow Control and Regulation Unit, "RYC-C", designed by EDIBON, allows the study of flow control in a closed hydraulic circuit. It includes a pump, a flowmeter, and an electronic proportional valve that regulates the flow. The unit allows...

MAGNETIC LEVITATION CONTROL MODULE - RYC-CLM

RYC-CLM

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

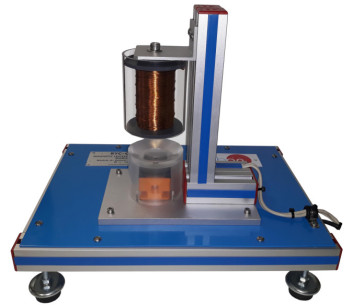

RYC-CLM

Gerät für PID-Regelung und -Steuerung der Magnetischen Levitation

The PID Magnetic Levitation Control and Regulation Unit, "RYC-CLM", designed by EDIBON, allows studying a highly nonlinear process through the levitation of a metallic ball using an electromagnet. It includes position and current sensors that...

RYC-CP

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

RYC-CP

Gerät für PID-Regelung und -Steuerung der Position eines Motors

The PID Position Control and Regulation of a Motor Unit, "RYC-CP", designed by EDIBON, allows studying linear position control using a DC motor that moves a carriage. It includes position sensors that allow measuring the displacement of the...

RYC-I

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

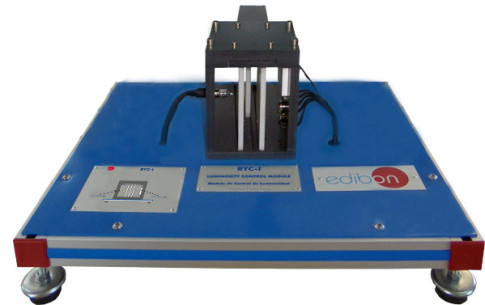

RYC-I

Gerät für PID-Regelung und -Steuerung der Lichtintensität

The PID Control and Regulation of Light Intensity Unit, "RYC-I", designed by EDIBON, allows analyzing light intensity control in a closed environment. It includes a variable light source and several optical sensors, such as photodiodes or...

RYC-N

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

RYC-N

Gerät für PID-Regelung und -Steuerung des Pegels

The PID Level Control and Regulation Unit, "RYC-N", designed by EDIBON, allows studying level control in a tank by regulating the inlet flow. It includes level sensors, a pump, and valves that allow modifying operating conditions. The unit allows...

RYC-P

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

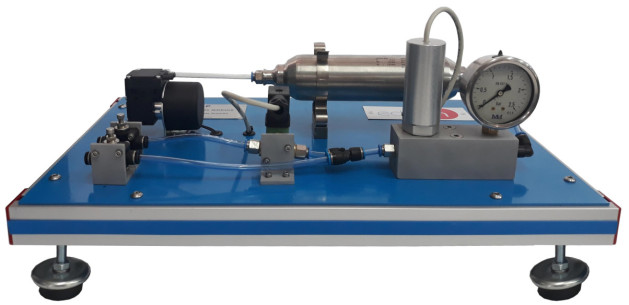

RYC-P

Gerät für PID-Regelung und -Steuerung des Druckniveaus

The PID Control and Regulation of Pressure Level Unit, "RYC-P", designed by EDIBON, allows the study of pressure control in a tank using compressed air. It includes a compressor, pressure sensors, and control valves. It allows analyzing the...

RYC-pH

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

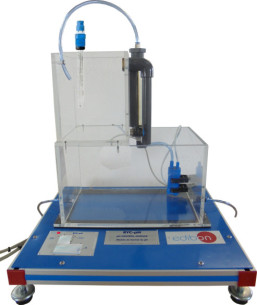

RYC-pH

Gerät für PID-Regelung und -Steuerung des pH-Wertes

The PID Control and Regulation of pH Level Unit, "RYC-pH", designed by EDIBON, allows studying pH control in a tank by dosing acidic and basic solutions. It includes pH sensors, dosing pumps, and a mixing tank. It allows analyzing dynamic chemical...

INVERTED PENDULUM CONTROL MODULE - RYC-PI

RYC-PI

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

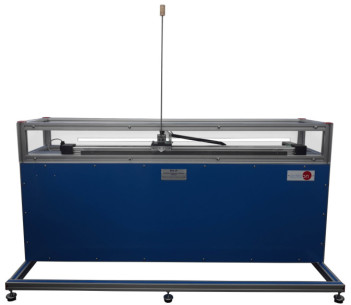

RYC-PI

Gerät für PID-Regelung und -Steuerung eines Umgekehrten Pendels

The PID Control and Regulation of an Inverted Pendulum Unit, "RYC-PI", designed by EDIBON, allows studying a highly unstable process through the control of an inverted pendulum mounted on a moving carriage. It includes position and angle sensors...

RYC-SM

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

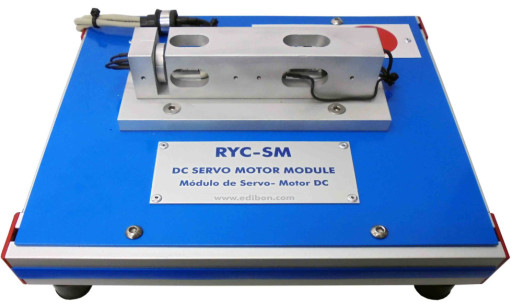

RYC-SM

Gerät für PID-Regelung und -Steuerung eines Gleichstrom-Servomotors

The PID Control and Regulation of a DC Servomotor Unit, "RYC-SM", designed by EDIBON, allows studying speed and position control in a DC servomotor. It includes speed and position sensors, allowing analysis of the dynamic response of the motor and...

WATER FLOW TEMPERATURE CONTROL MODULE - RYC-TAG

RYC-TAG

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

RYC-TAG

Gerät für PID-Regelung und -Steuerung der Temperatur eines Wasserstroms

The PID Temperature Control and Regulation of Water Flow Unit, "RYC-TAG", designed by EDIBON, allows analyzing heat transfer in a water flow system. It includes two circuits (cold and hot water) connected through a heat exchanger. It allows...

AIR FLOW TEMPERATURE CONTROL MODULE - RYC-TAR

RYC-TAR

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

RYC-TAR

Gerät für PID-Regelung und -Steuerung der Temperatur eines Luftstroms

The PID Temperature Control and Regulation of Air Flow Unit, "RYC-TAR", designed by EDIBON, allows studying temperature control in an air flow using a fan and a heating element. It includes sensors distributed along the duct, allowing analysis of...

RYC-TE

Available

6.1.1.1.- THEORETISCH-PRAKTISCHE GRUNDLAGEN

RYC-TE

Gerät für PID-Regelung und -Steuerung der Temperatur

The PID Temperature Control and Regulation Unit, "RYC-TE", designed by EDIBON, allows studying temperature control in a tank using a heating element and temperature sensors. It allows analyzing thermal dynamics, response time, and process stability.

COMPUTER CONTROLLED PROCESS CONTROL UNIT FOR THE STUDY OF PRESSURE (AIR) - UCP-P

UCP-P

Available

6.1.1.3.- INDUSTRIELLE SYSTEMANWENDUNGEN

UCP-P

Gerät für Prozesssteuerung zur Untersuchung von Druck (Luft), computergesteuert (PC)

The Computer Controlled Process Control Unit for the Study of Pressure (Air), "UCP-P", designed by EDIBON, consists of a compressed air duct whose flow is controlled by a pneumatic valve (the compressed air or gas source is not included).The air...
