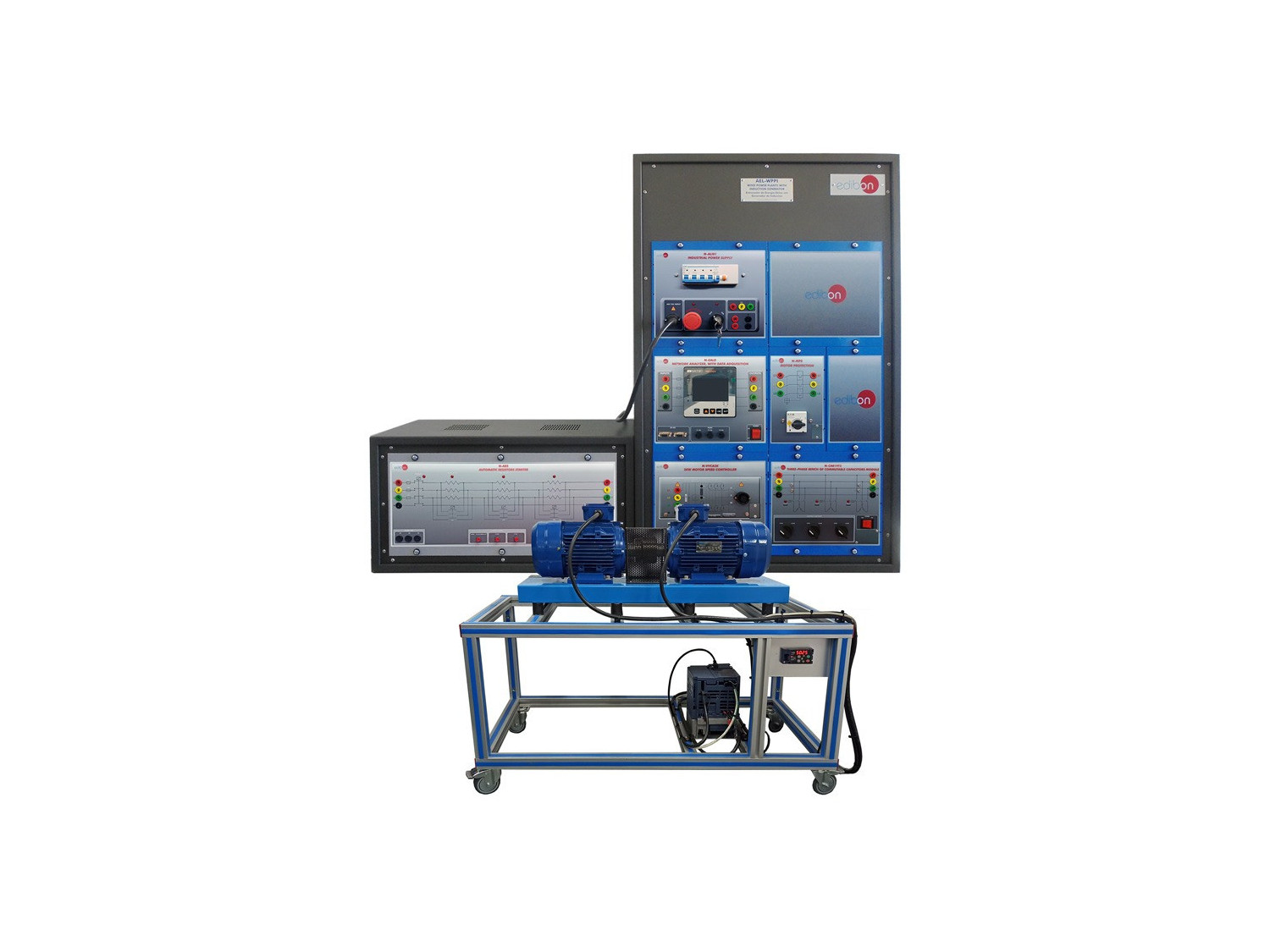

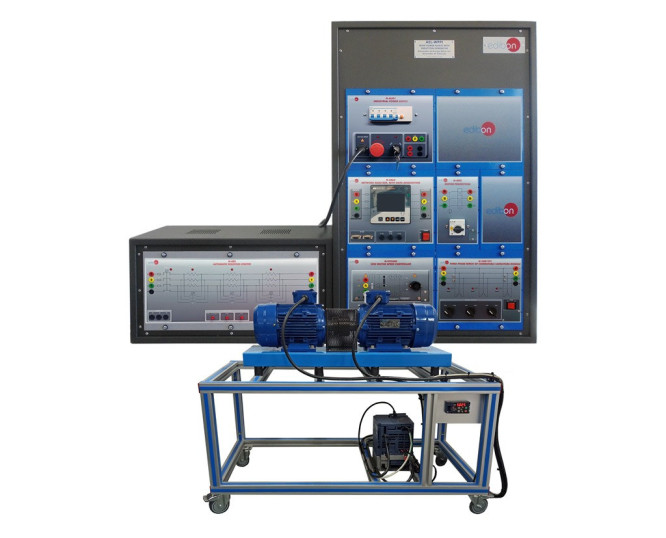

The Wind Power Plants with Induction Generator Application, "AEL-WPPI", has been developed by EDIBON to study the wind turbines electrical performance with three-phase induction generators of squirrel cage that inject power in the network.

查看一般說明

相關新聞

一般說明

The Wind Power Plants with Induction Generator Application, "AEL-WPPI", has been developed by EDIBON to study the wind turbines electrical performance with three-phase induction generators of squirrel cage that inject power in the network.

Wind turbines with induction generator have some characteristics, of great interest to the students, which will be studied working with the machine in different regimes: sub-synchronous, synchronous and super-synchronous. Depending on the working regime of the induction generator, different electrical parameters can be analyzed. To analyze these electrical parameters, the Wind Power Plants with Induction Generator Trainer has an advanced network analyzer to will show the student, among others, the following parameters: positive and negative active, reactive and apparent powers (P, Q and S), line and total power factors, line currents, phase and line voltages, current and voltage harmonics, etc.

The wind turbine induction generator is coupled to the three-phase induction motor of squirrel cage in order to simulate different wind speeds. The three-phase induction motor is controlled by mean a frequency variator to vary the wind speed. On this way, the user can simulate different wind speeds and observes the response of the electrical generator coupled to the grid.

The Wind Power Plants Induction Generator Application has a series of sensors which allow the student to measure the wind turbine speed and the applied torque for it in order to calculate electrical and mechanical parameters, through which the student will go in depth about knowledge of wind turbines with induction generator.

This application has a power factor compensation module in order to analyze the effects of the reactive energy in the induction generator and the grid.

This application has all necessary electrical and mechanical safety elements.

練習和指導練習

手册中包含的指导实践练习

  1. Commissioning of the induction generator.
  2. Wiring procedure of the induction generator to the grid.
  3. Study of operation regimes of the wind turbines with threephase induction generator of squirrel cage.
  4. Analysis of the induction generators coupled to the grid in sub-synchronous state.
  5. Analysis of the induction generators coupled to the grid in synchronous state.
  6. Analysis of the induction generators coupled to the grid in super-synchronous state.
  7. Study of electrical parameters of the induction generator coupled to the grid in sub-synchronous state.
  8. Study of electrical parameters of the induction generator coupled to the grid in synchronous state.
  9. Study of electrical parameters of the induction generator coupled to the grid in super-synchronous state.
  10. Efficiency study of the induction generator comparing the injected power in the grid with the mechanical power shaft of the turbine.
  11. Power factor influence with the speed variations and analysis of the possible solutions to automate the regulation of the power factor.
  12. Active power compensation by mean capacitor banks and electrical measurement of the electrical machine response.

与该单位进行更多实际操作

  1. Several other exercises can be done and designed by the user.
