THREE-PHASE INSTALLATIONS FAULTS APPLICATION - AEL-AD33T

創新系統

The Three-phase Installations Faults Application, "AEL-AD33T", has been designed by EDIBON to study certain protections used in industrial installations.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件

化验室

4TV
 Technical and Vocational Education Electricity Laboratory
4HE
 Higher Education Electricity Laboratory
11PTC
 石油培训中心实验室

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
阅读更多
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
阅读更多

一般說明

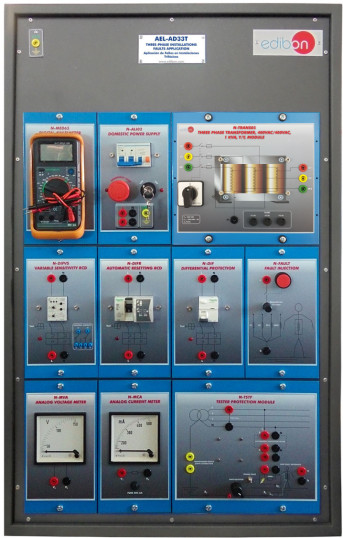

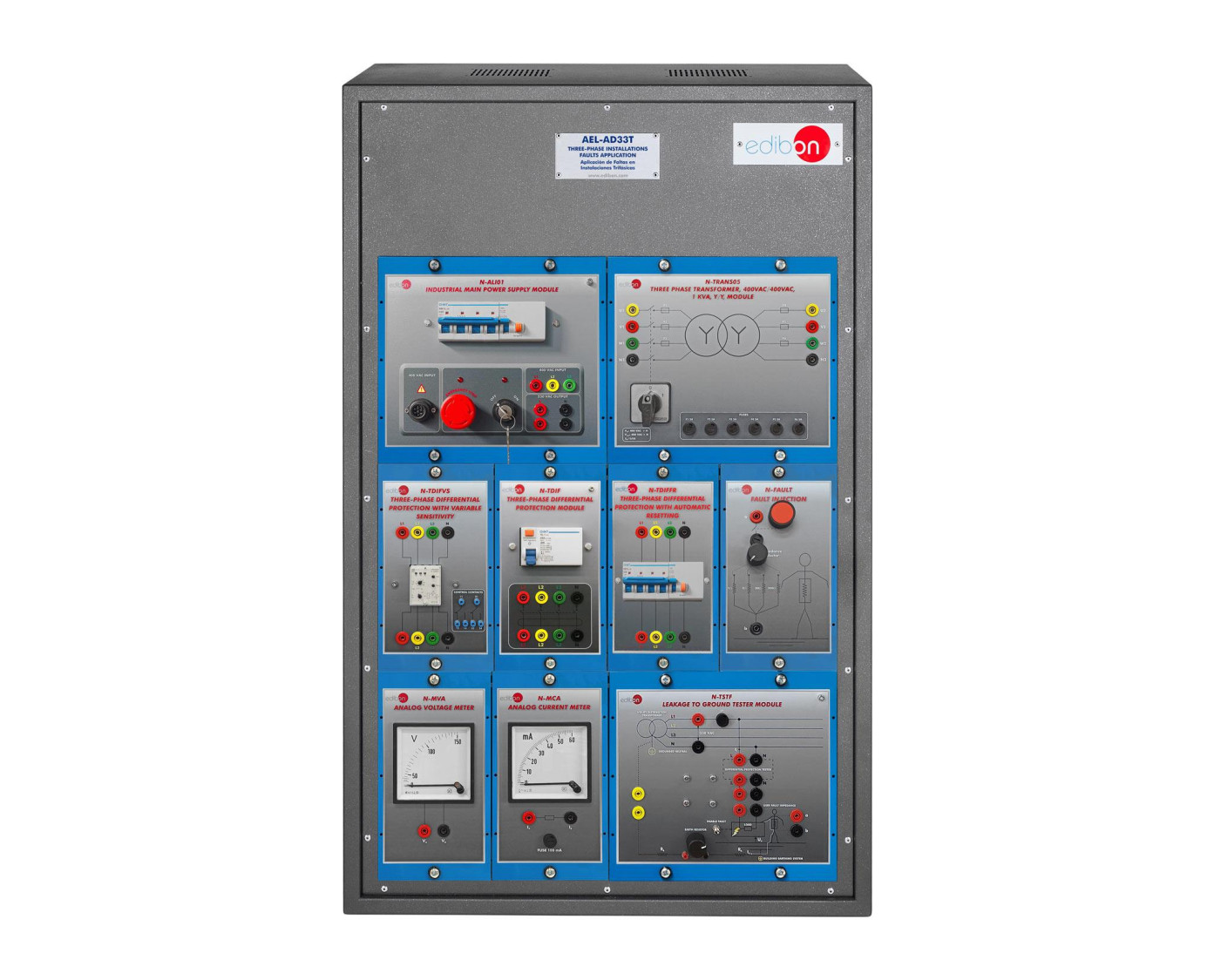

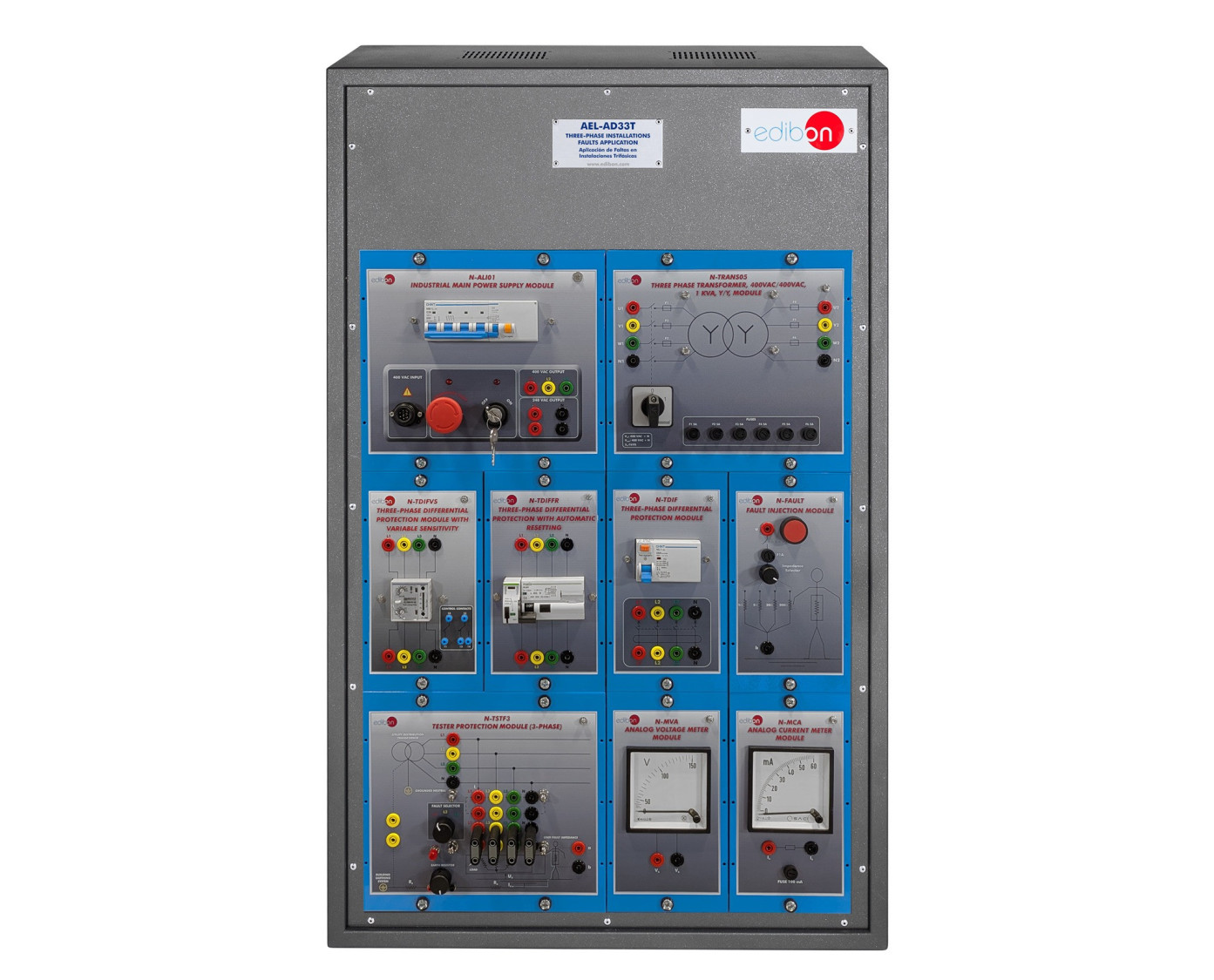

The Three-phase Installations Faults Application, "AEL-AD33T", has been designed by EDIBON to study certain protections used in industrial installations. Using safety elements, students can simulate different faults and verify the reasons why each type of protection acts. This includes some innovative electrical devices for protecting people and installations against the effects of electrical current. These devices ensure the continuity of power availability as well as the safety of people. This application includes a three-phase transformer to simulate ground faults under safe conditions.

It is also possible to change the configuration of ground connection of the charges connected to the system. Some of those configurations are: TN, IT, TN-S, TN-C, TN-C-S.

The protections included are: three-phase differential protection, three-phase differential protection with automatic reset, and three-phase differential protection with variable sensitivity. To check all protections, a variable resistor is included to control current shunts. It also includes meters to determine the magnitude of the current shunt and verify the sensitivity of the protection.

練習和指導練習

手册中包含的指导实践练习

  1. Study of basic concepts of three-phase differential protection.
  2. Study of three-phase differential protection with variable sensitivity.
  3. Study of three-phase differential protection with automatic restore.
  4. Adjustment of sensibility of the three-phase differential protection.
  5. Study of short-circuits in three-phase system with basic differential protection.
  6. Study of short-circuits in three-phase system with short-circuit impedance and basic differential protection.
  7. Study short-circuits in three-phase system with differential protection with variable sensitivity.
  8. Study short-circuits in three-phase system with short-circuit impedance and differential protection with variable sensitivity.
  9. Study short-circuits in three-phase system with differential protection with automatic restore.
  10. Study short-circuits in three-phase system with short-circuit impedance and differential protection with automatic restore.
  11. Study of isolation coordination.
  12. Checking the differences between some different grid system configurations in the face of disturbances.
