AEL-KNX-BC KNX百叶窗控制培训应用

4.2.4.- KNX / EIB家庭/建筑自动化

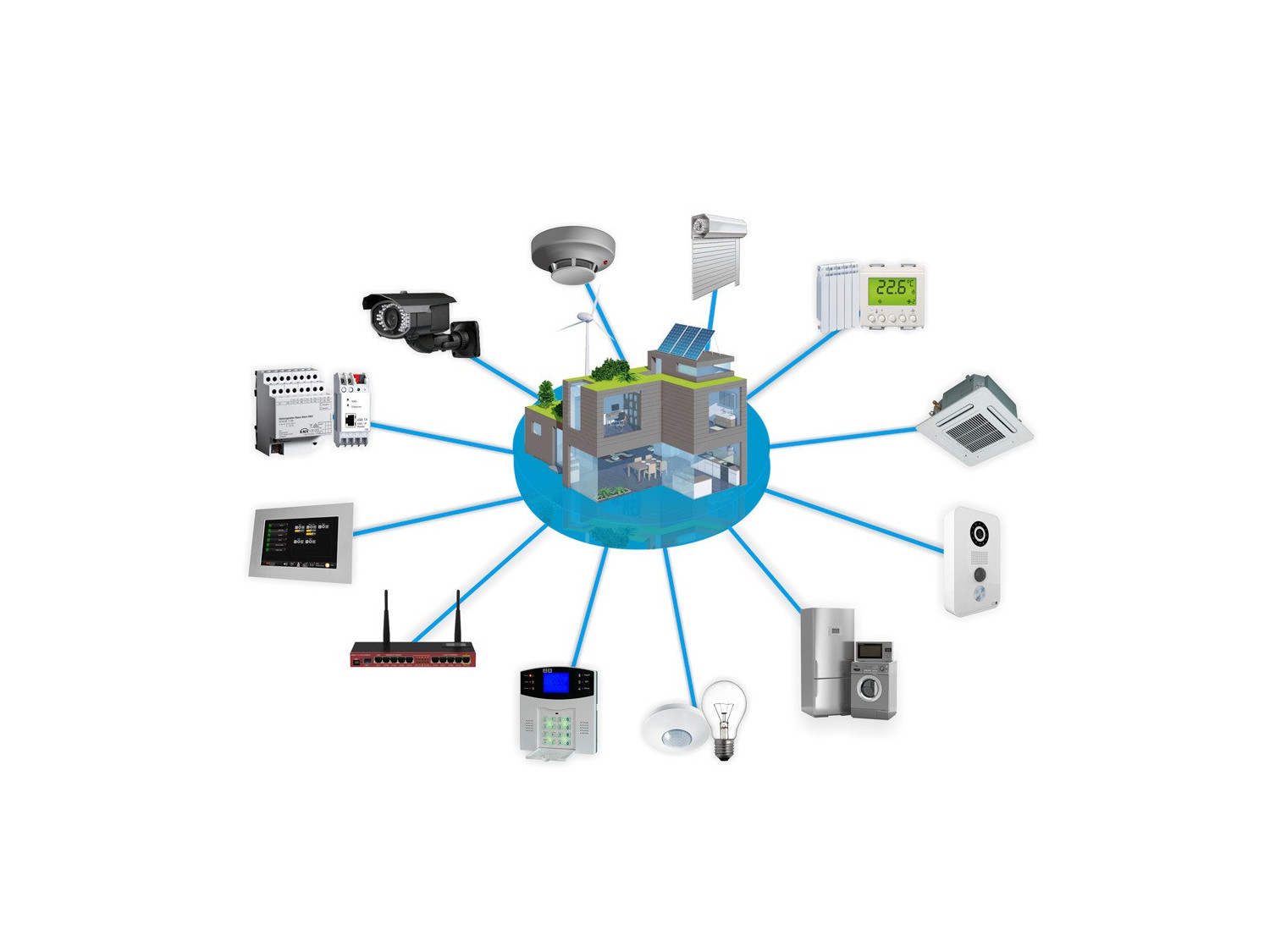

KNX BLIND CONTROL TRAINING APPLICATION - AEL-KNX-BC

創新系統

The AEL-KNX-BC is an application designed to facilitate the study and understanding of KNX based blind control systems. This unit serves as a valuable resource for educational and professional purposes, providing hands-on experience and knowledge of the wiring, programming and commissioning techniques associated with KNX technology in the context of blind control systems.

查看一般說明

相關新聞

What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
阅读更多

一般說明

The AEL-KNX-BC is an application designed to facilitate the study and understanding of KNX based blind control systems. This unit serves as a valuable resource for educational and professional purposes, providing hands-on experience and knowledge of the wiring, programming and commissioning techniques associated with KNX technology in the context of blind control systems.

Key features of the AEL-KNX-BC include:

  • Hands-on Learning: the unit allows users to perform practical exercises related to KNX wiring practices, focusing on the specific requirements of shutter or blind control scenarios.
  • Simulation of Blind Control Scenarios: Users can simulate and experiment with various scenarios related to blind control, gaining an understanding of how KNX technology facilitates the integration and automation of such systems in intelligent buildings.
  • Practical application of KNX wiring: The unit provides a platform for practical application, allowing users to connect and configure KNX devices for blind control in a controlled environment. This hands-on approach enhances the learning experience.
  • Comprehensive documentation: The accompanying documentation provides detailed information on KNX wiring practices for blind control, ensuring that users have access to comprehensive guidance and instructions for effective learning.
  • Compatibility: Compatible with standard KNX devices and protocols used in blind control systems, ensuring seamless integration into KNX-based educational and professional environments.

練習和指導練習

手册中包含的指导实践练习

  1. Basic Integration of the Blind Control System: connection of the power supply for the KNX devices in the blind control system.
  2. Connection of the KNX Room Controller: integration of the KNX room controller for centralized blind control and configuration of functions and scenario programming.
  3. Connection of KNX Binary Output Module for Shutter Control: connection and configuration of the KNX binary output module for effective shutter control. Adjustment of response times and configuration of positions.
  4. Use of KNX Brightness Sensors: connection and integration of KNX brightness sensors for automatic adjustment of blinds according to lighting. Programming of thresholds and conditions.
  5. Connection of Pushbutton Modules for Manual Interaction: integration of KNX pushbutton modules to allow manual interaction with the blinds. Programming of up, down and stop functions.
  6. Shutter Motor: Connection and Integration: Connection and programming of the shutter motor.

Project creation in ETS and Topology definition:

  1. Creation of a New Project in ETS: development of a new project from scratch with the ETS software and definition of general characteristics and establishment of the basic topology of the KNX system.
  2. Bus Topology Definition: configuration of the KNX bus topology, identification of devices and establishment of physical addresses.
  3. Physical Address Assignment: assignment of physical addresses to KNX devices in the project and following of addressing standards and recommendations.
  4. Topology Verification: verification of configuration consistency and compliance with KNX system requirements.

KNX Device Diagnostics:

  1. Use of Diagnostic Tools: use of diagnostic tools in the ETS software to verify communication and status of KNX devices.
  2. Communication Testing: performing communication tests between KNX devices and the bus and identification and resolution of possible connection problems.
  3. Telegram Analysis: analysis of telegrams sent and received by KNX devices, identification of possible errors or interferences in the network.
  4. Troubleshooting: diagnosis and resolution of configuration or connection errors in KNX devices and use of diagnostic tools available in the ETS software.
  5. Event Logging: use of event logging functions to monitor and analyze the behavior of KNX devices under different operating conditions.
