DEPRESSION MEASUREMENT SYSTEM (VACUUM GAUGE) - FME26

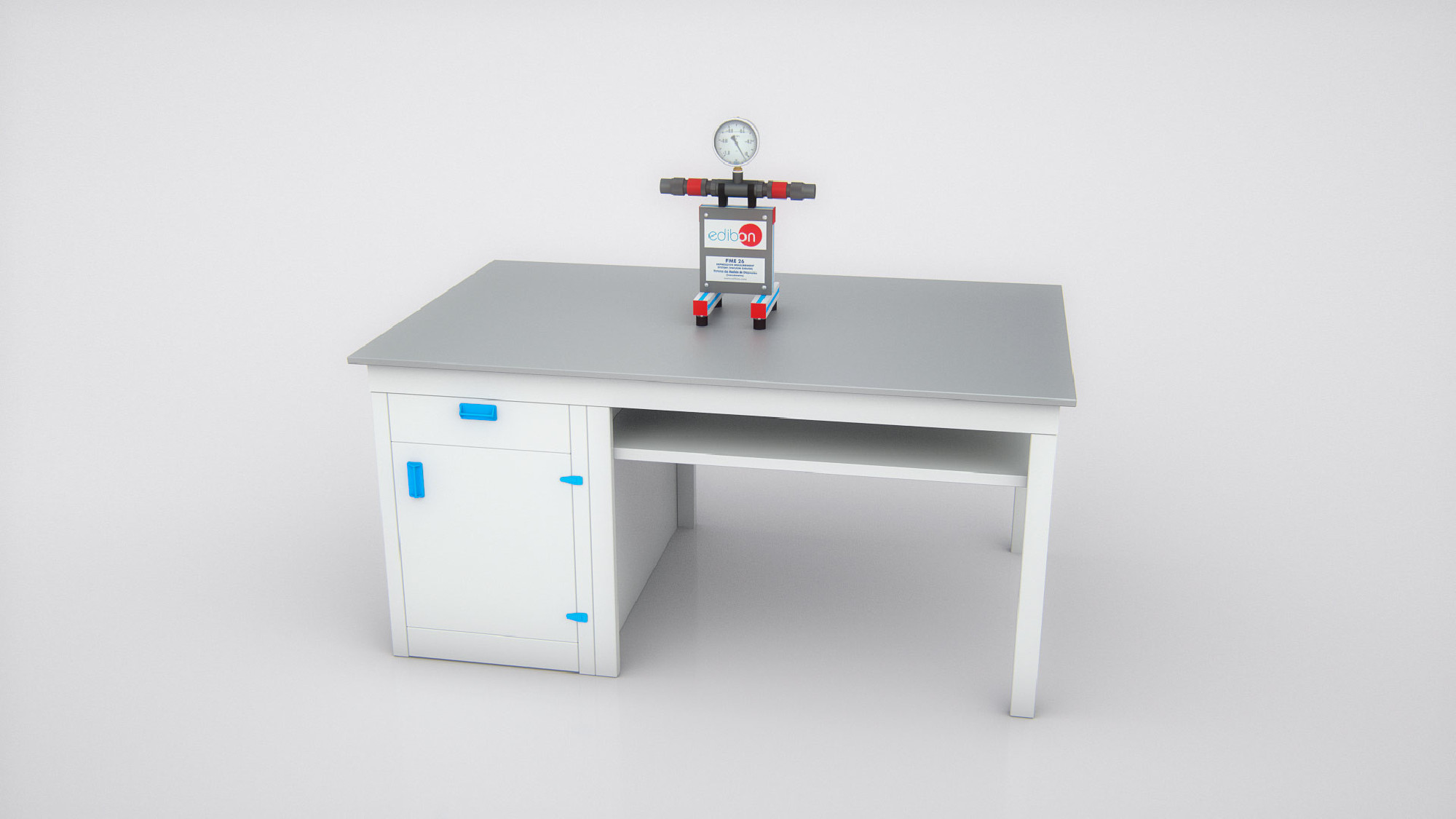

Complete FME26 Unit

FME26 Unit with service unit FME00

創新系統

The depression measurement system, in pressure fall, FME 26, is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system.

查看一般說明

比赛规格

扩展

ICAI

交互式计算机辅助教学软件

MSAC

模块化采集与控制系统

化验室

8TV

技术和职业教育流体力学实验室。

8HE

高等教育流体力学实验室

一般說明

The Depression Measurement System (vacuum gauge), "FME 26", is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system. Such system will be usually a water pump that takes out some liquid from a tank.

Anodized aluminum structure that supports a vacuum gauge whose reading gives us the measurement.

Two quick connections at both sides of the vacuum gauge allow connecting reinforced flexible pipes.

練習和指導練習

手册中包含的指导实践练习

To measure the depression caused by the fluid aspiration by an hydraulic pump.
We can observe the different negative readings due to the different methods of fluid aspiration for its subsequent impulsion.
