MCF Belt Friction Unit

7.1.5.- 摩擦学 (摩擦, 磨损, 润滑) 14.1.5.- 摩擦学 (摩擦, 磨损, 润滑)

創新系統

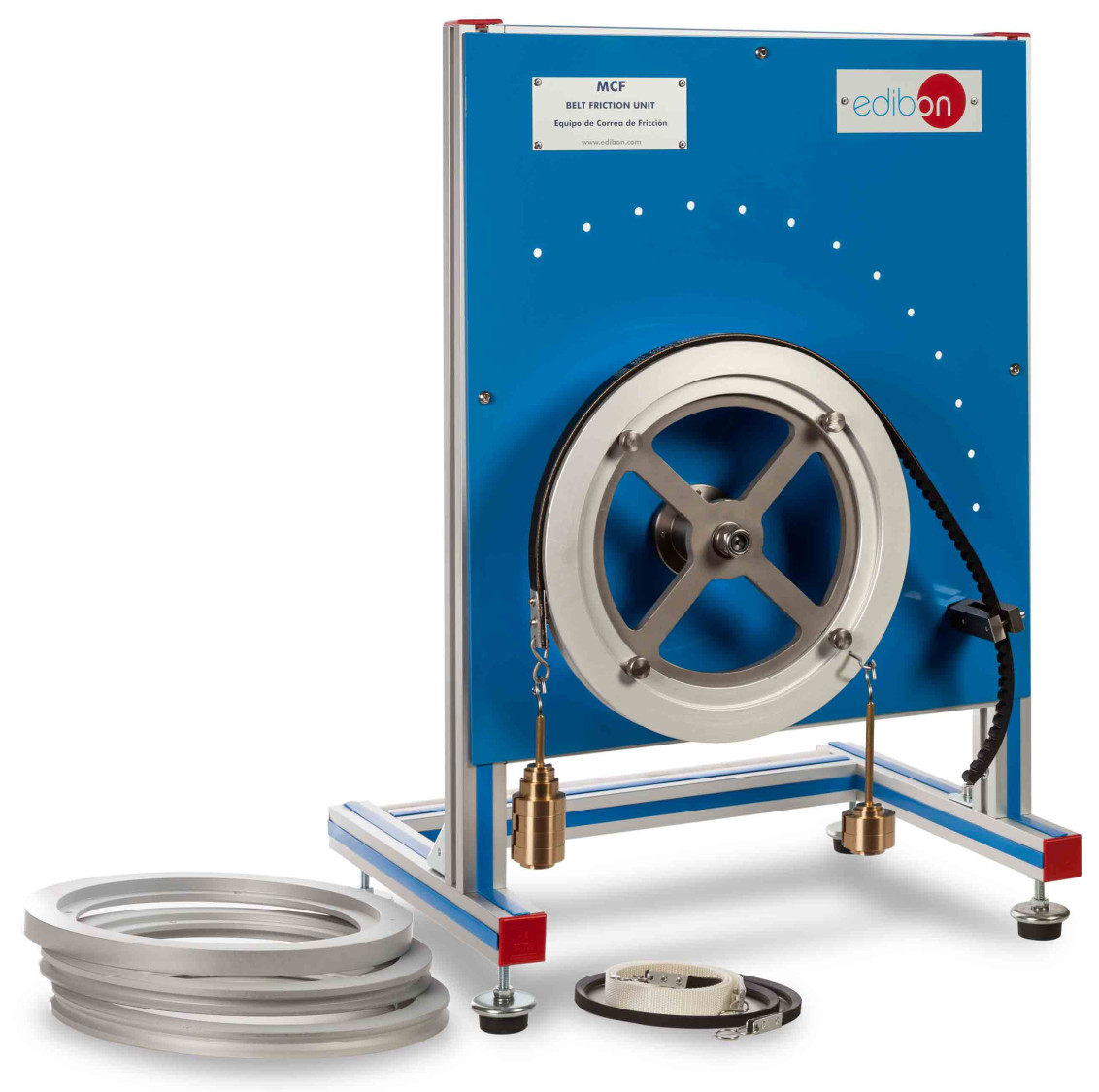

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

查看一般說明

比赛规格

扩展

ICAI

Interactive Computer Aided Instruction Software

MSAC

Modular System for Acquisition and Control

化验室

一般說明

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

With this unit the relationship between the tensions in the two sides of a belt can be observed, to evaluate the differences between flat (leather or rope) and V belts and to investigate the effect of the angle lap, among others.

Tension is introduced into the belt by hanging masses or weights. The slipping torque is determined by the addition of suitable masses attached to a cord wrapped round the drum.

練習和指導練習

手册中包含的指导实践练习

Investigation of the relationship between the belt tensions and the angle of lap for a flat belt.
Comparison of the driving torque for a given angle of lap.

与该单位进行更多实际操作

Evaluation of the differences between flat belts and V-shaped belts.
Evaluation of the differences between V-shaped toothed and flat belts.
Determination of the coefficient of friction between the pulley and belt for the belt sections.
Verification of the belt tension equation.

可用的类似设备

BELT FRICTION UNIT WITH DYNAMOMETERS - MCF/A

MCF/A

Available

7.1.5.- 摩擦学 (摩擦, 磨损, 润滑)

MCF/A

Belt Friction Unit with Dynamometers

The Belt Friction Unit with Dynamometers, "MCF/A", has been designed to allow students to carry out investigations to compare the driving torque for a given angle of overlap of a flat belt and a V-belt. With this unit, the relationship between...
