MAE Gerät zur Untersuchung der Beschleunigung in Zahnradsystemen
INNOVATIVE SYSTEME

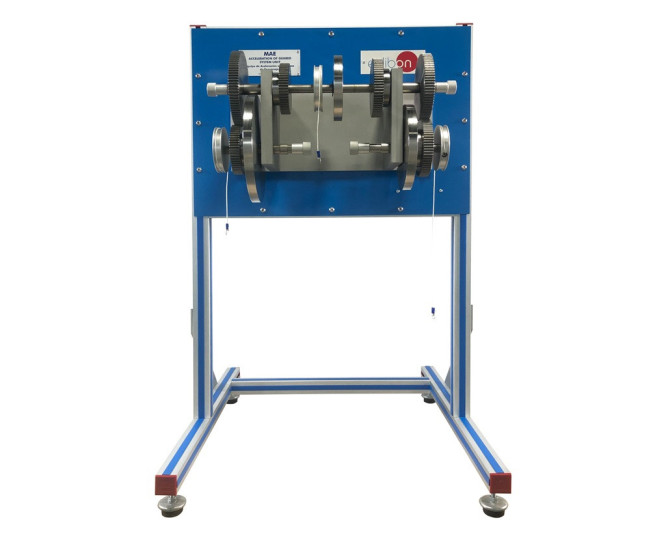

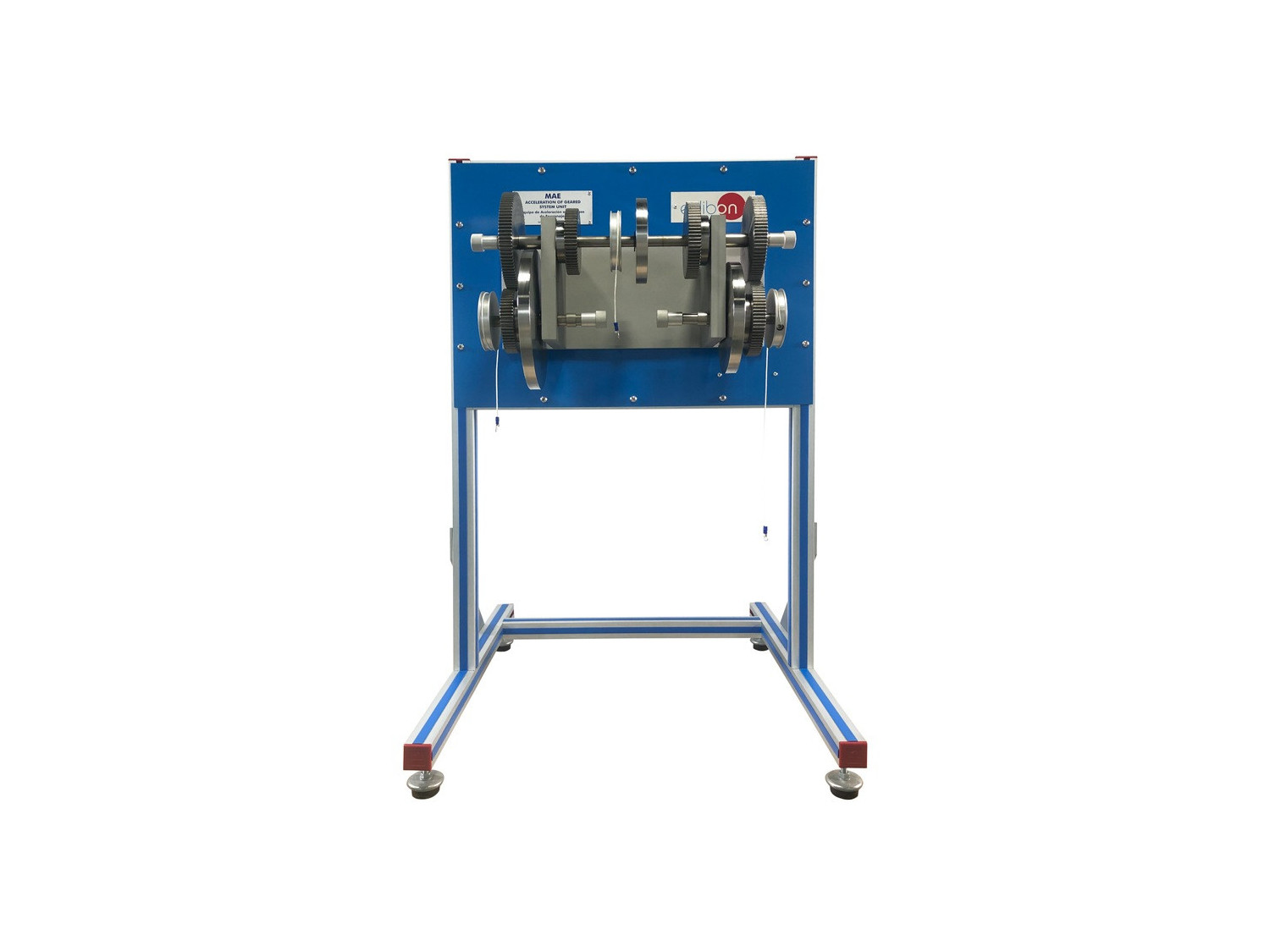

The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, mainly consists of a gear train with three shafts, which are employed specially to transfer rotating motion in reality.
Erweiterungen
Laboratorien
ÄHNLICHE NEUIGKEITEN
ALLGEMEINE BESCHREIBUNG
The "MAE" unit includes six gears. Two of them can have another position in the shafts to vary the gear ratio, allowing to obtain a different moment of inertia and, therefore, to accelerate the system.
Additionally, there are three masses of inertia, one per shaft. The position of these discs will modify the total moment of inertia and the acceleration of the system too.
There is one pulley in each shaft. Different masses are hung from these pulleys to observe how the acceleration of the gear system varies. Depending on the position from which the mass is hung, the acceleration of the gears and the moment of inertia, will be modified.
To be able to calculate the total moment of inertia and the acceleration of the system, it is neccessary to know the time required by the mass hung from the pulley to travel a given distance.
The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, allows to perform tests to calculate the moment of inertia of a gear train system.
ÜBUNGEN UND GEFÜHRTE PRAKTIKEN
GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN
- Determination of the moment of inertia of a single transmission shaft. Determination of the minimum mass and acceleration required to move the system.
- Determination of the moment of inertia of a simple gear train. Determination of the minimum mass and acceleration required to move the system.
- Determination of the moment of inertia of a triple gear train. Determination of the minimum mass and acceleration required to move the system.
- Determination of the moment of inertia of a triple gear train. Determination of the minimum mass and acceleration required to move the system.
- Determination of the moment of inertia of a single transmission shaft. Determination of the minimum mass and acceleration required to move the system.
- Determination of the moment of inertia of a triple gear train. Determination of the minimum mass and acceleration required to move the system.
