AUTOMOTIVE STARTING AND CHARGING SYSTEMS UNIT - AV-SCS

INNOVATIVE SYSTEME

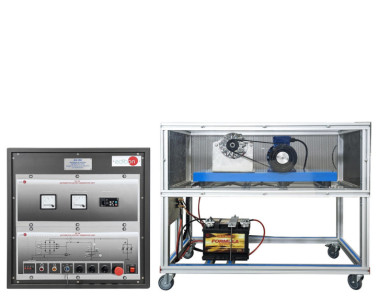

The Automotive Starting and Charging Systems Unit, "AV-SCS", designed by EDIBON, is aimed at theoretical and practical training in the electrical ignition and charging systems of vehicles.

Allgemeine Beschreibung anzeigen

ÄHNLICHE NEUIGKEITEN

ALLGEMEINE BESCHREIBUNG

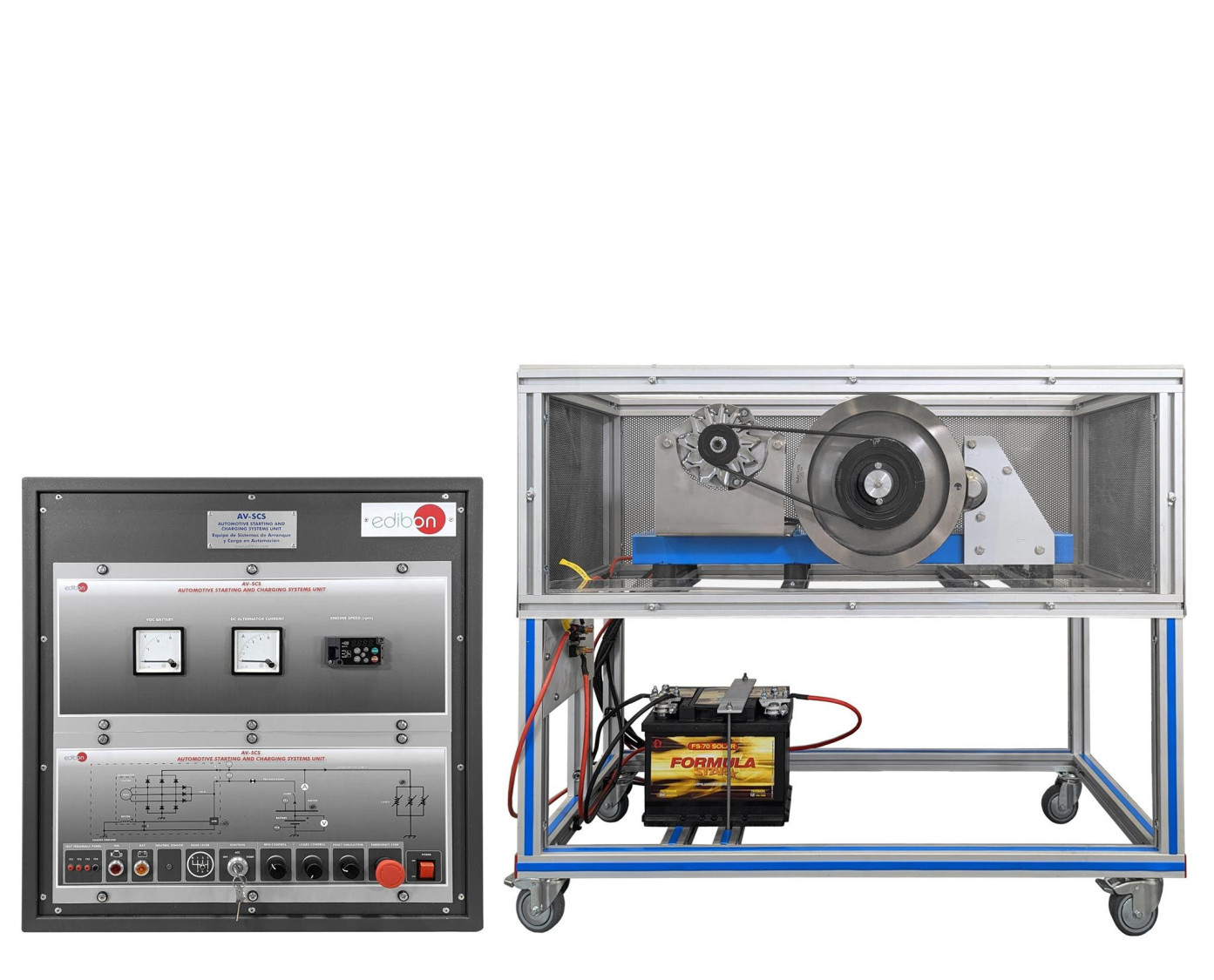

The Automotive Starting and Charging Systems Unit, "AV-SCS", designed by EDIBON, is aimed at theoretical and practical training in the electrical ignition and charging systems of vehicles. This unit helps students develop skills to understand and analyze the operation of each component, such as the direct current starter motor, the alternator, the solenoid relay, the battery charging circuit, and the ignition switch. It also allows for the study of how different circuits are energized based on the position of the ignition key, simulating various phases of the system: from the initial activation of the electrical current, through preheating, to the complete engine startup.

The simulation is completed with an electric motor that emulates the combustion engine, which is connected to an alternator providing energy to the system, enabling the verification of the battery charge and testing key points of the starting circuit. Additionally, the "AV-SCS" includes an instrumentation panel that simulates common faults, helping students practice diagnosing failures and troubleshooting.

To enhance learning, the "AV-SCS" incorporates exercises that explore in detail the regulation of alternator voltage and battery management during charge and discharge cycles. It also includes fault simulation scenarios for components like the alternator, battery, and motor, allowing students to experience and resolve issues in a controlled environment.

Designed with the current and future challenges of the automotive industry in mind, the "AV-SCS" integrates advanced energy systems, preparing students to meet the demands of hybrid and electric vehicles. This unit includes, among other components, a combustion simulation motor, a 12 V battery, a fuse and relay block, and a frequency converter for motor control. Thanks to its integrated design, this unit provides hands-on experience in electrical circuits and energy management for modern vehicles.

The "AV-SCS" unit includes the following components:

  • DC starter motor.
  • Starting solenoid.
  • Park/neutral position switch.
  • Run/Start relay.
  • Starting relay.
  • Connectors.
  • 12 VDC battery with accessible terminals (battery points).
  • Fuse block.
  • Ignition key for starting the vehicle (ignition switch).
  • Protection fuse.
  • Alternator.
  • Electric motor for petrol engine simulation (EMT7/1K).
  • Advanced AC Motor Speed Controller Module (N-VVCA).

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Fundamentals of the electrical and electronic circuits of thevehicle involved in the starting system.
  2. Fundamentals of the DC electric motor. Study of the keyparameters by taking measurements at its terminals.
  3. Fundamentals of the alternator. Study of the key parameters bytaking measurements at its terminals.
  4. Fundamentals of the battery, operating principles, types,features and recharging systems.
  5. Fundamentals of the charging circuit, features, physical basis,and components of the alternator.
  6. Fundamentals of the charging circuit and maintenance of avehicle battery.
  7. Identification of the starting system elements of a vehicle.
  8. Study of the park/neutral position switch. Study of its connectionto the solenoid and how it is involved the starting circuit.
  9. Study of the starting solenoid relay. Study of its behavior in thestarter motor coupling.
  10. Study of the ignition switch. Study of the various circuits involvedin every key position.
  11. Study of the operation of the automotive starting system.
  12. Study of the drive circuit of the DC starter motor.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Several other exercises can be done and designed by the user.
