AEL-TI-06 Anwendung der Analyse von Leistungsflüssen in Übertragungsleitungen

ANALYSIS OF POWER FLOWS IN TRANSMISSION LINES APPLICATION - AEL-TI-06

INNOVATIVE SYSTEME

The Analysis of Power Flows in Transmission Lines Application, "AET-TI-06", has been designed for the study of power flows in high voltage transmission lines via Phase Shifting Transformers (PST).

Allgemeine Beschreibung anzeigen

ÄHNLICHE NEUIGKEITEN

ALLGEMEINE BESCHREIBUNG

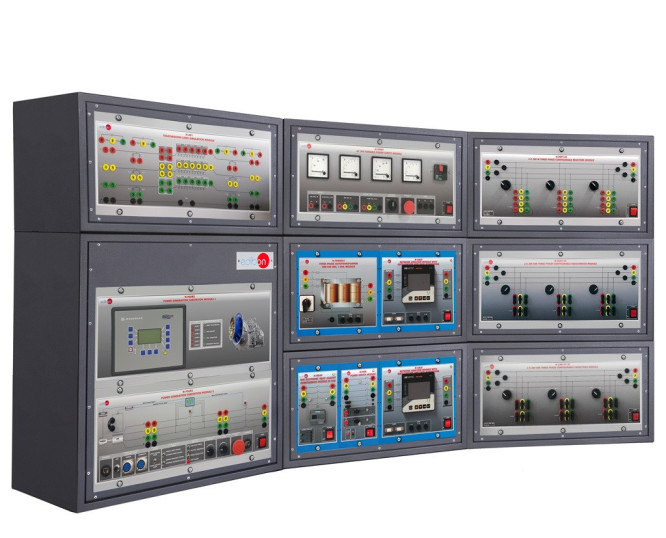

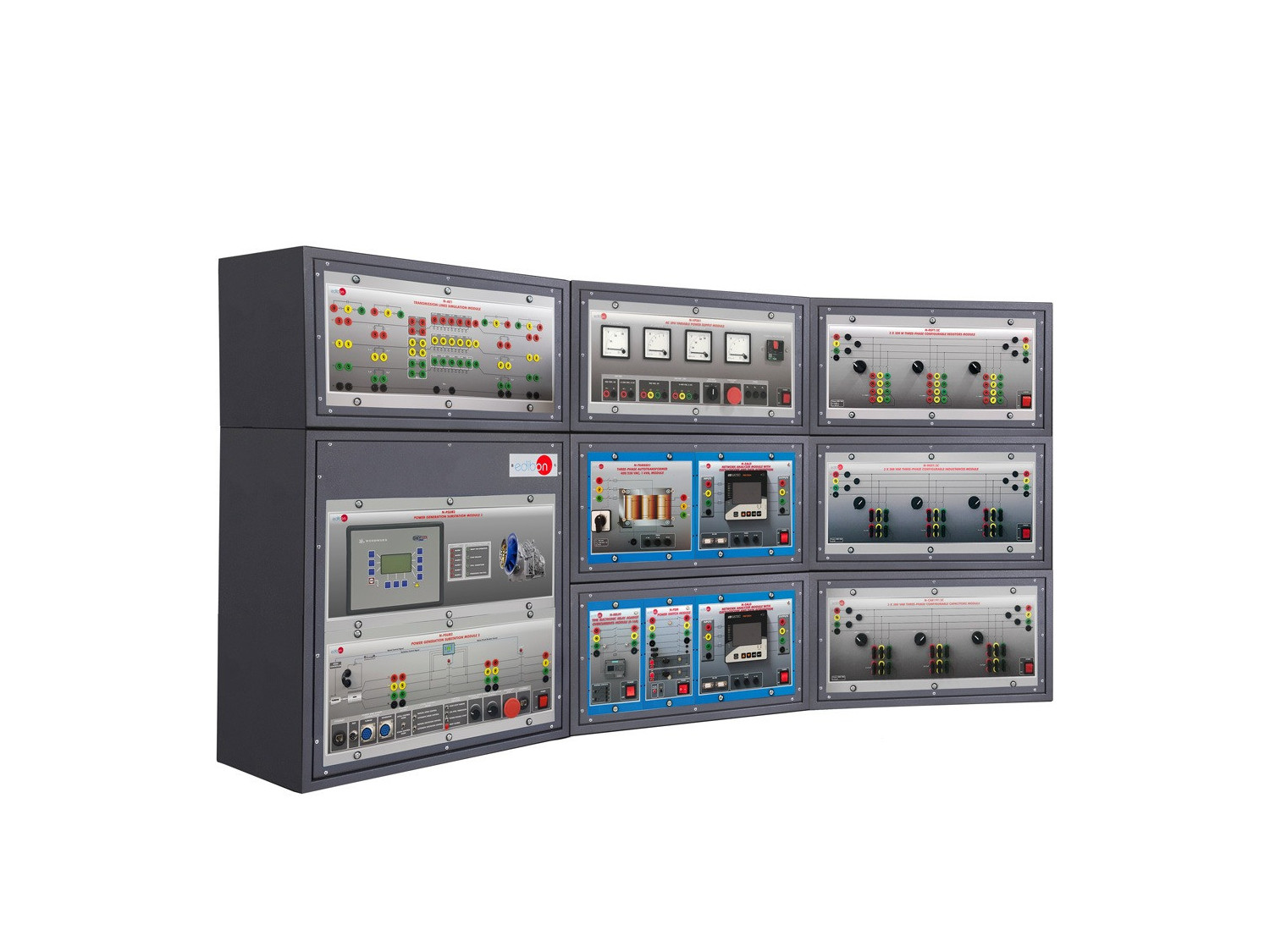

The Analysis of Power Flows in Transmission Lines Application, "AET-TI-06", has been designed for the study of power flows in high voltage transmission lines via Phase Shifting Transformers (PST). For this purpose, this application includes a phase shifting transformer module, a transmission line module and a network analyser module. The phase shifting transformer module allows the user to control the voltage angle and the influence of this in the active power flow injected in the transmission line. The aerial transmission line module has terminals to configure the electrical parameters such as resistance, inductance, the capacitive effect between line to line and line to ground. The network analyser module allows the user to monitor the most important electrical parameters such as power factor, harmonics, drop voltages, powers, etc.

In addition, this application has been designed to be combined with the rest of AEL-TI- and AEL-SST- applications in order to form a system in which the user can study concepts about generation, transmission, distribution and power consumption.

This application can work remotely through SCADA software AEL-TI-07/CCSOF included in the application of Transmission Application with Synchronous Generator, "AEL-TI-07".

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Measurement of the most important electrical parameters of parallel lines with equal length.
  2. Measurement of the most important electrical parameters of parallel lines with different length.
  3. Measurement of the most important electrical parameters of serial lines with equal length.
  4. Measurement of the most important electrical parameters of serial lines with different length.
  5. Measurement of the most important electrical parameters of parallel lines with equal impedance.
  6. Measurement of the most important electrical parameters of parallel lines with different impedance.
  7. Voltage angle influence in the active power injected in the line.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Several students can see the results at the same time. A projector or electronic whiteboard can be used to see all the results in real time in class.
  2. The Computer Control System with CCSOF allows a real simulation.
  3. This application is completely safe since it has mechanical, electrical, electronic security devices and Software.
  4. This application may be used to carry out applied research.
  5. This application may be used for teaching training to industries, even to other institutions of technical education.
  6. Several other exercises can be done and designed by the user.
