MDU-SSCP Set für Kavitation in Pumpen

7.4.3.- INSTALLATIONS- UND WARTUNGSPRAXIS
SET TO STUDY CAVITATION IN PUMPS - MDU-SSCP

INNOVATIVE SYSTEME

The Set to Study Cavitation in Pumps, "MDU-SSCP", allows to produce the cavitation phenomenon and study its vibrational response.

Allgemeine Beschreibung anzeigen

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

Pump cavitation is produced when steam cavities are created within a fluid in which forces act responding to the pressure differences.

Cavitation causes noise, damage to components and loss of performance.

The Set to Study Cavitation in Pumps, "MDU-SSCP", allows to produce the cavitation phenomenon and study its vibrational response.

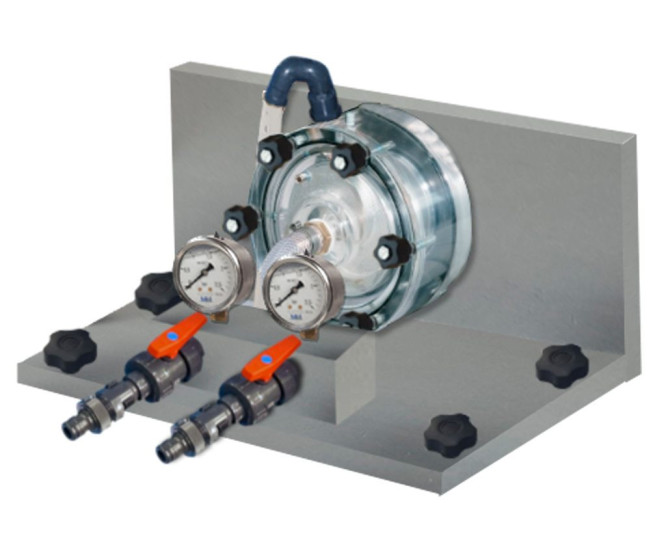

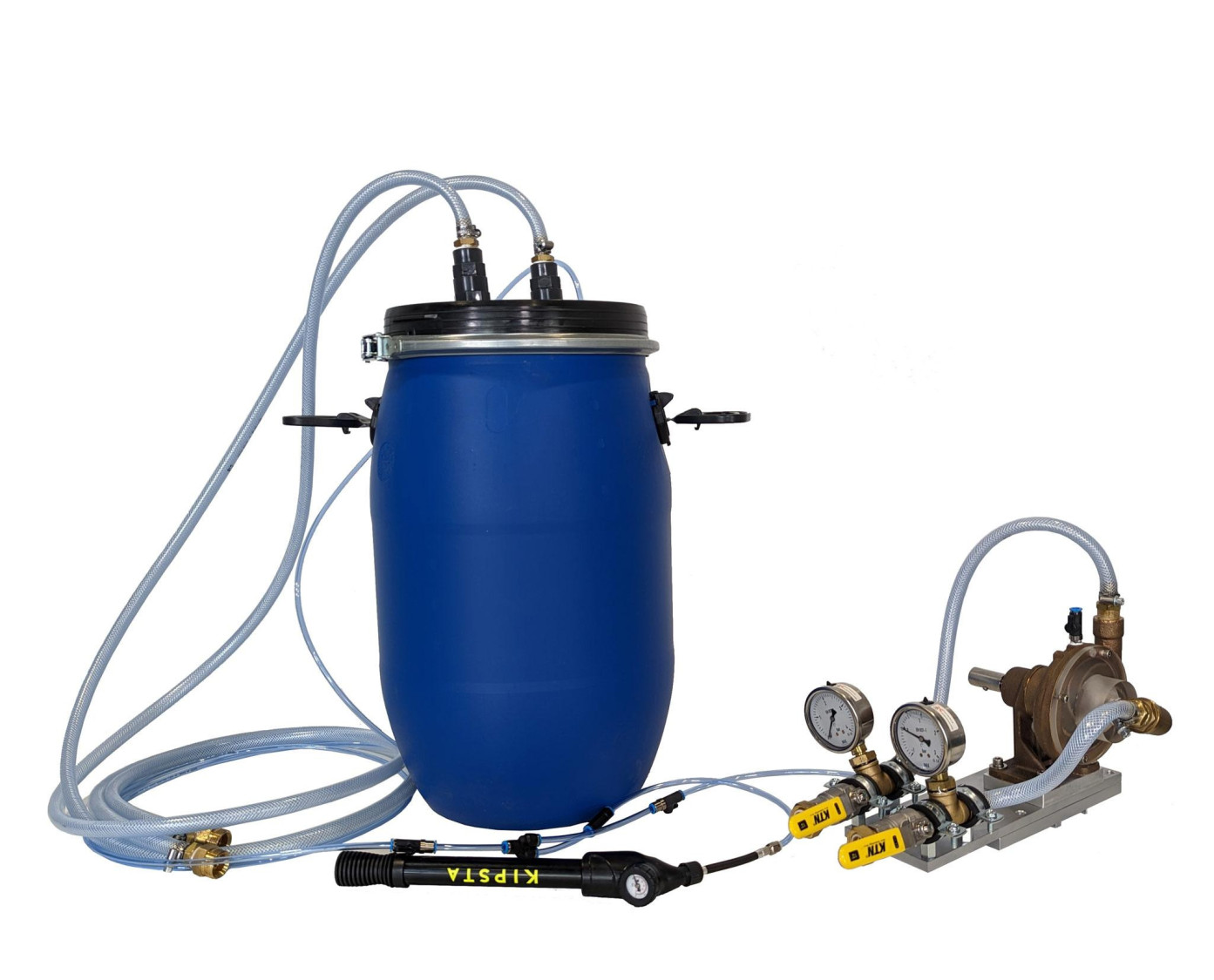

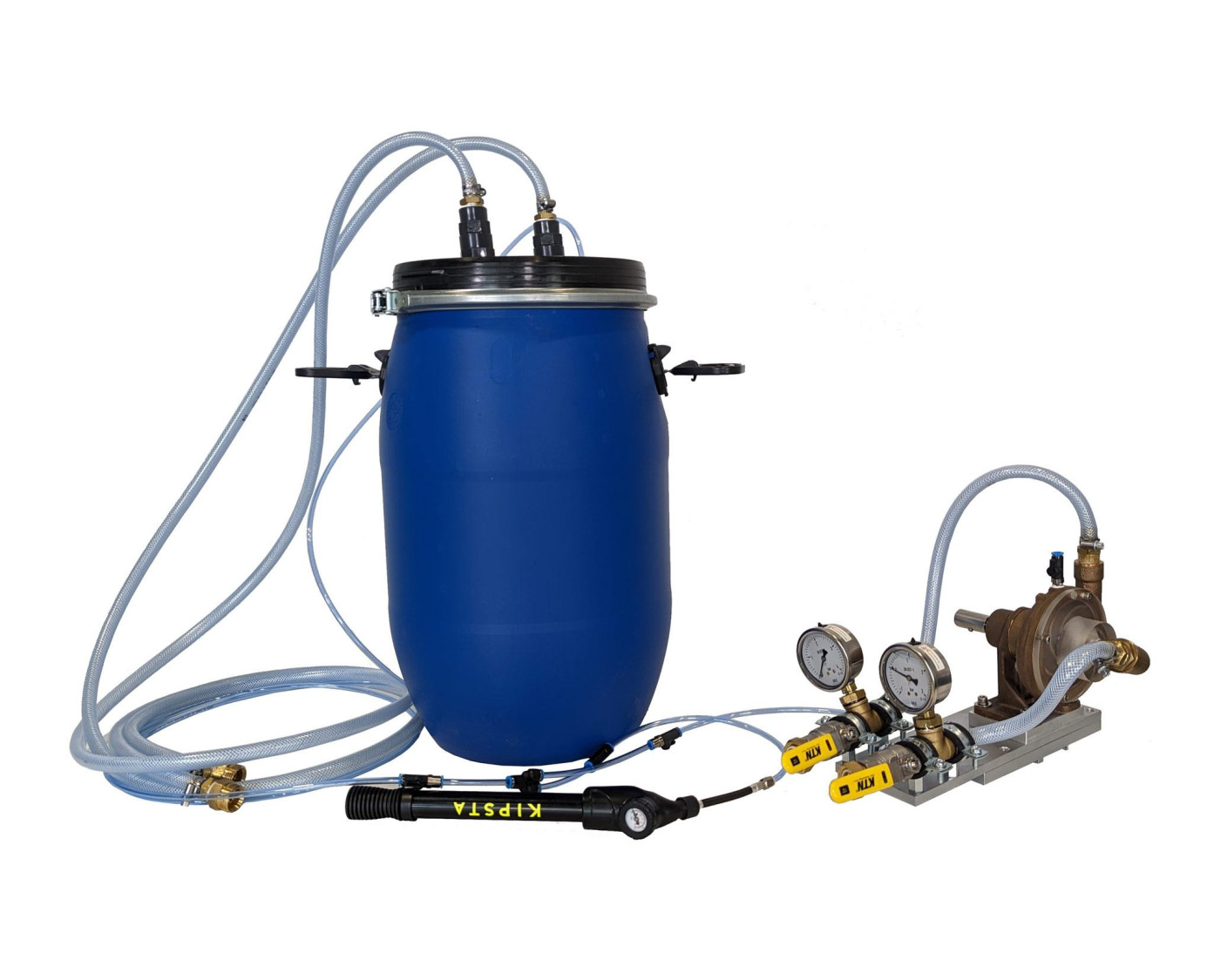

The Set to Study Cavitation in Pumps, "MDU-SSCP", consists of a single-stage centrifugal pump connected to flexible tubes with a tank. It is possible to adjust different operating conditions with valves and manometers. Furthermore, it is possible to observe the inside of a pump in operation through the plastic casing.

The pump can be driven directly through an elastic coupling or the Set of Belt Drive, "MDU-SBD".

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Study of the vibrations of a centrifugal pump in operation.
  2. Understanding the cavitation phenomenon in a centrifugal pump.
  3. Identifying vibrations caused by the movable vanes in the vibration spectrum.
  4. Measuring the pitch frequency between movable vanes.
  5. Measuring the blower vibrations.

ERFORDERLICHE ELEMENTE

ZUSÄTZLICHE EMPFOHLENE ELEMENTE

QUALITÄT

KUNDENDIENST

Informationen anfordern
