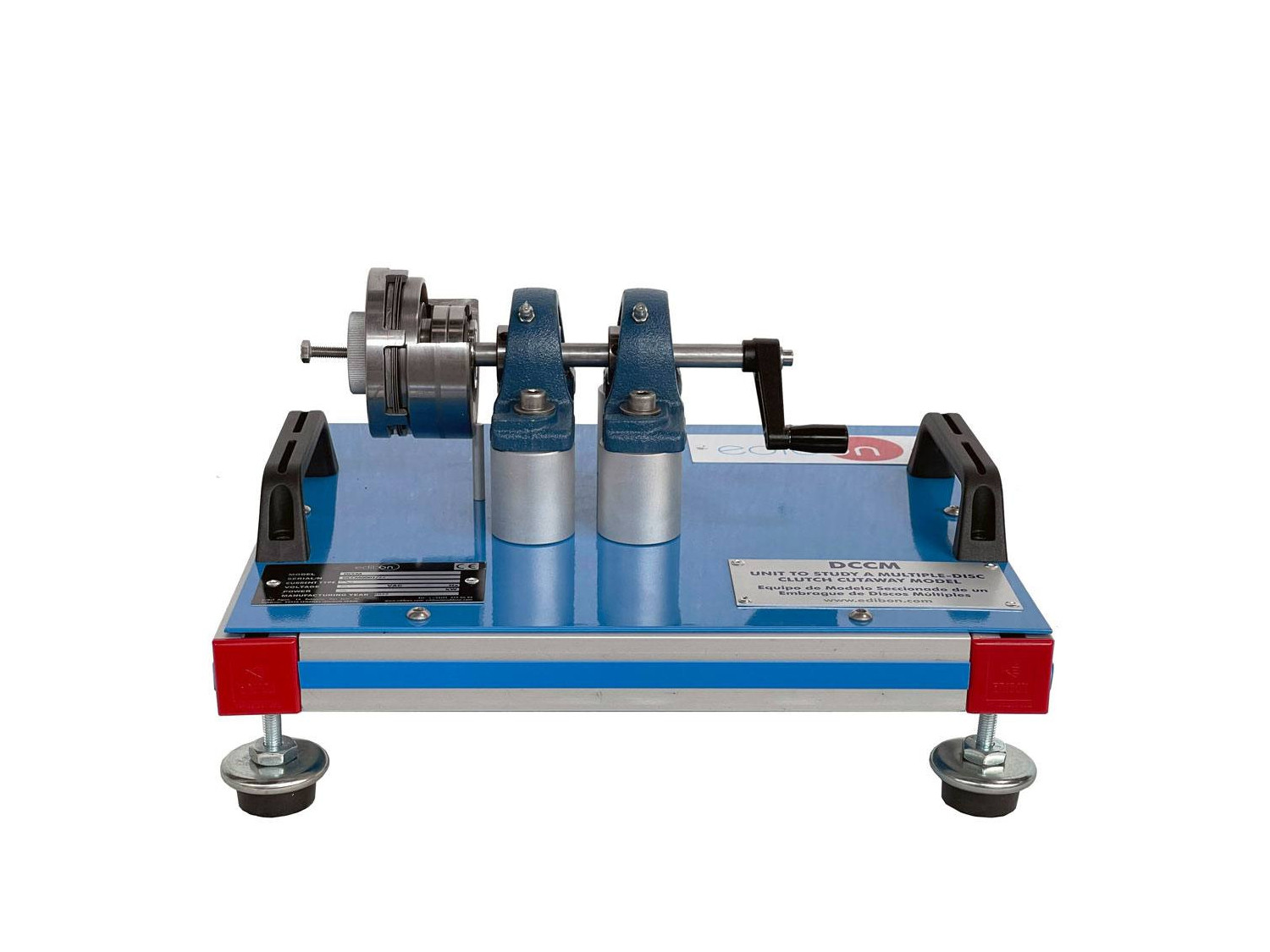

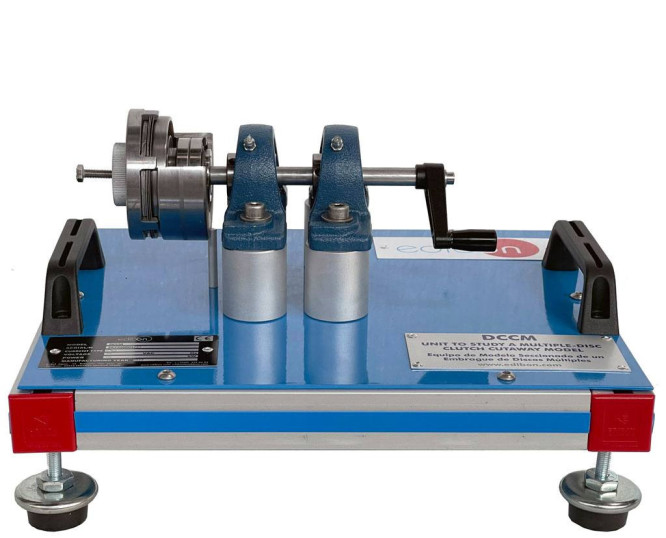

The Unit to Study a Multiple-Disc Clutch Cutaway Model, "DCCM", designed by EDIBON, allows for the study of this Multiple-disk clutch system, used to transmit higher torques in mechanical systems.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

MSAC

Modulares Erfassungs- und Steuerungssystem

ALLGEMEINE BESCHREIBUNG

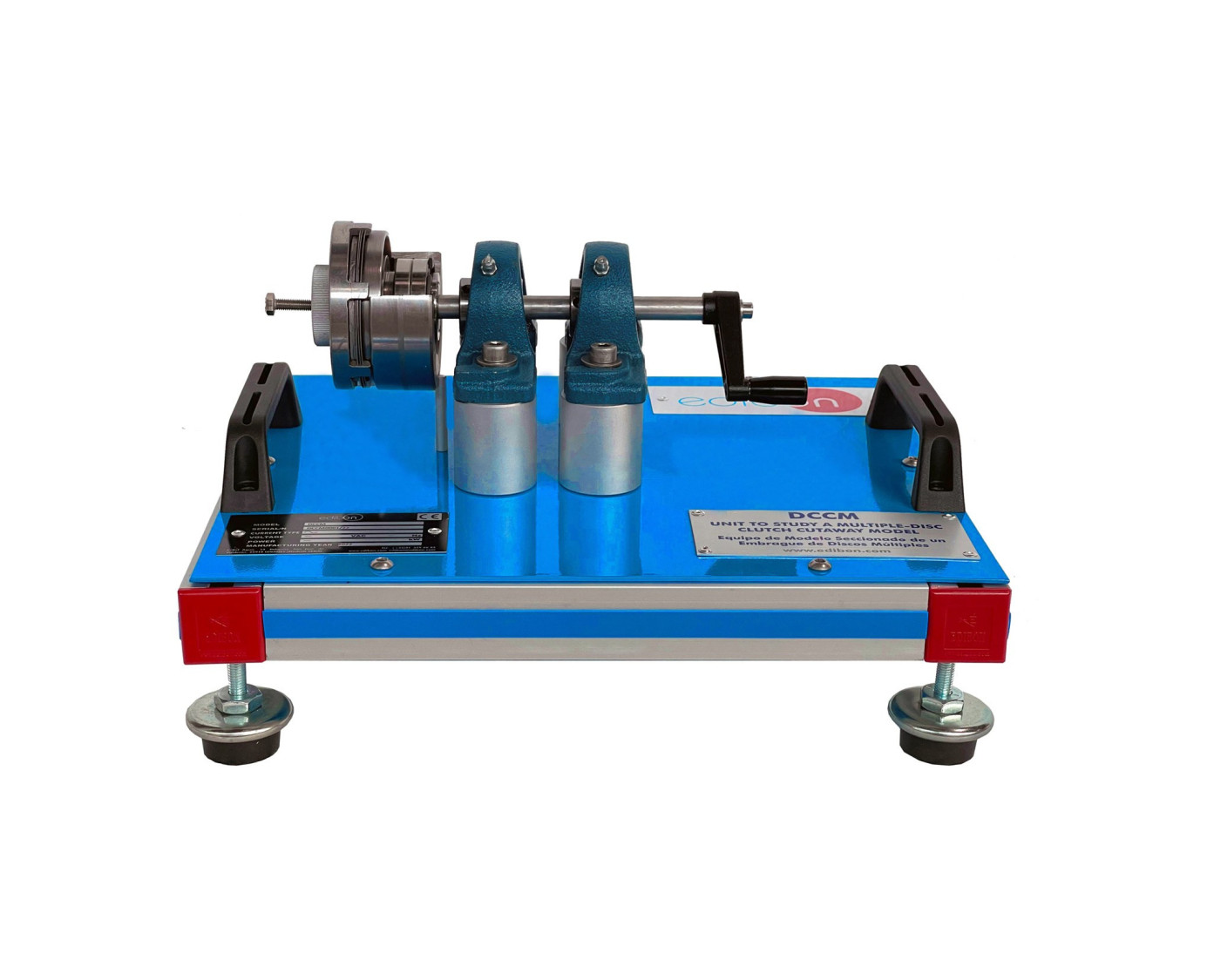

The Unit to Study a Multiple-Disc Clutch Cutaway Model, "DCCM", designed by EDIBON, allows for the study of this Multiple-disk clutch system, used to transmit higher torques in mechanical systems.

This type of clutch is widely used in chain tractor steering, motorcycles, and high-performance transmission systems, where an efficient and adjustable power transmission is required.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Identify the components of a multiple-disk clutch.
Study of the operation of a multiple-disk clutch.
Fault analysis and maintenance of a multiple-disk clutch.
