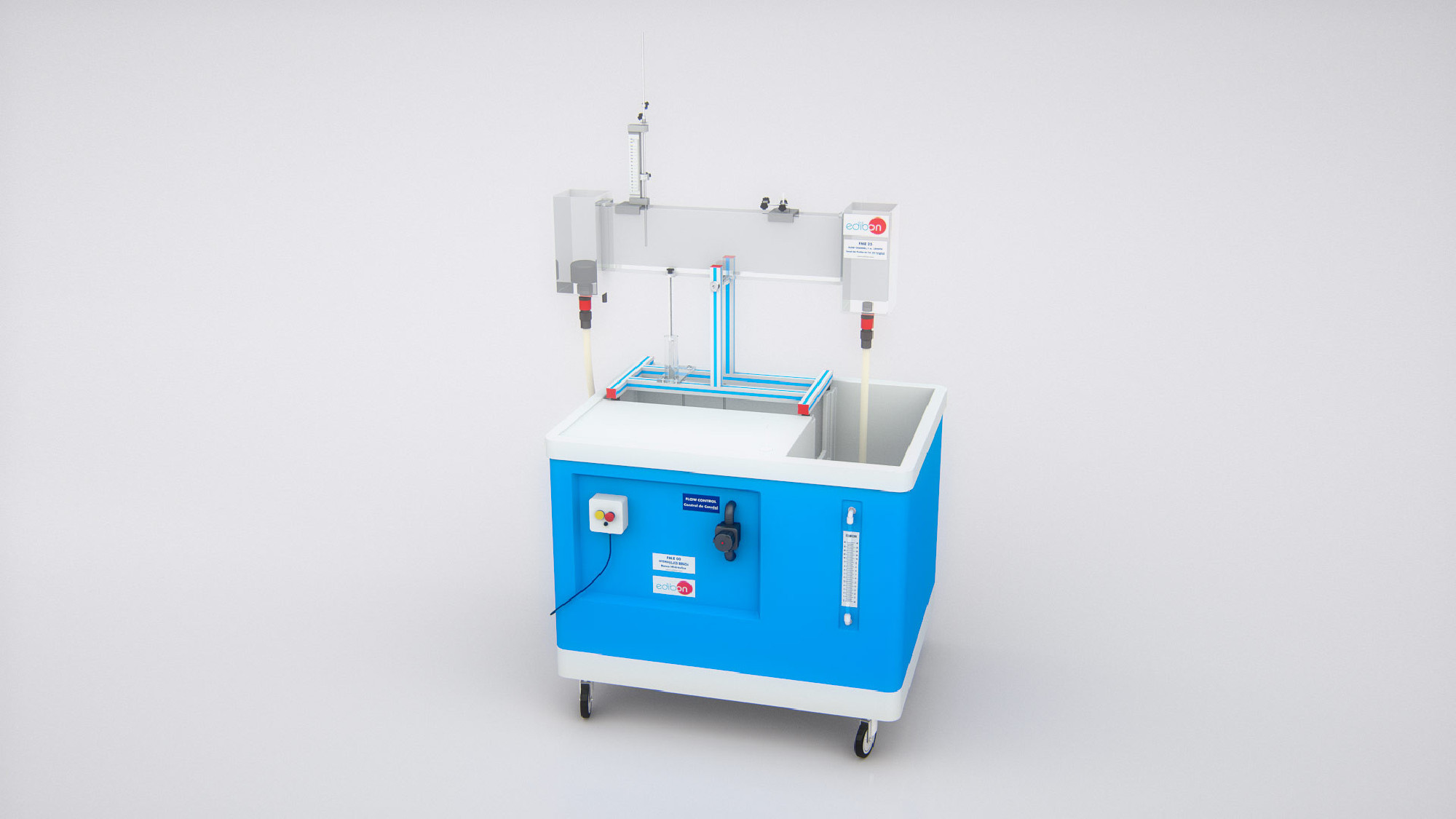

Complete FME25 Unit

FLOW CHANNEL, LENGTH: 1 M - FME25

FME25 Unit with service unit FME00

FLOW CHANNEL, LENGTH: 1 M - FME25
FLOW CHANNEL, LENGTH: 1 M - FME25

INNOVATIVE SYSTEME

The Flow Channel, length: 1 m, "FME25", designed by EDIBON, allows to studying the behaviour of water flowing through a one-meter channel.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

8TV
 Strömungsmechanik-Labor für die technische und berufliche Bildung
8HE
 Strömungsmechanik-Labor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

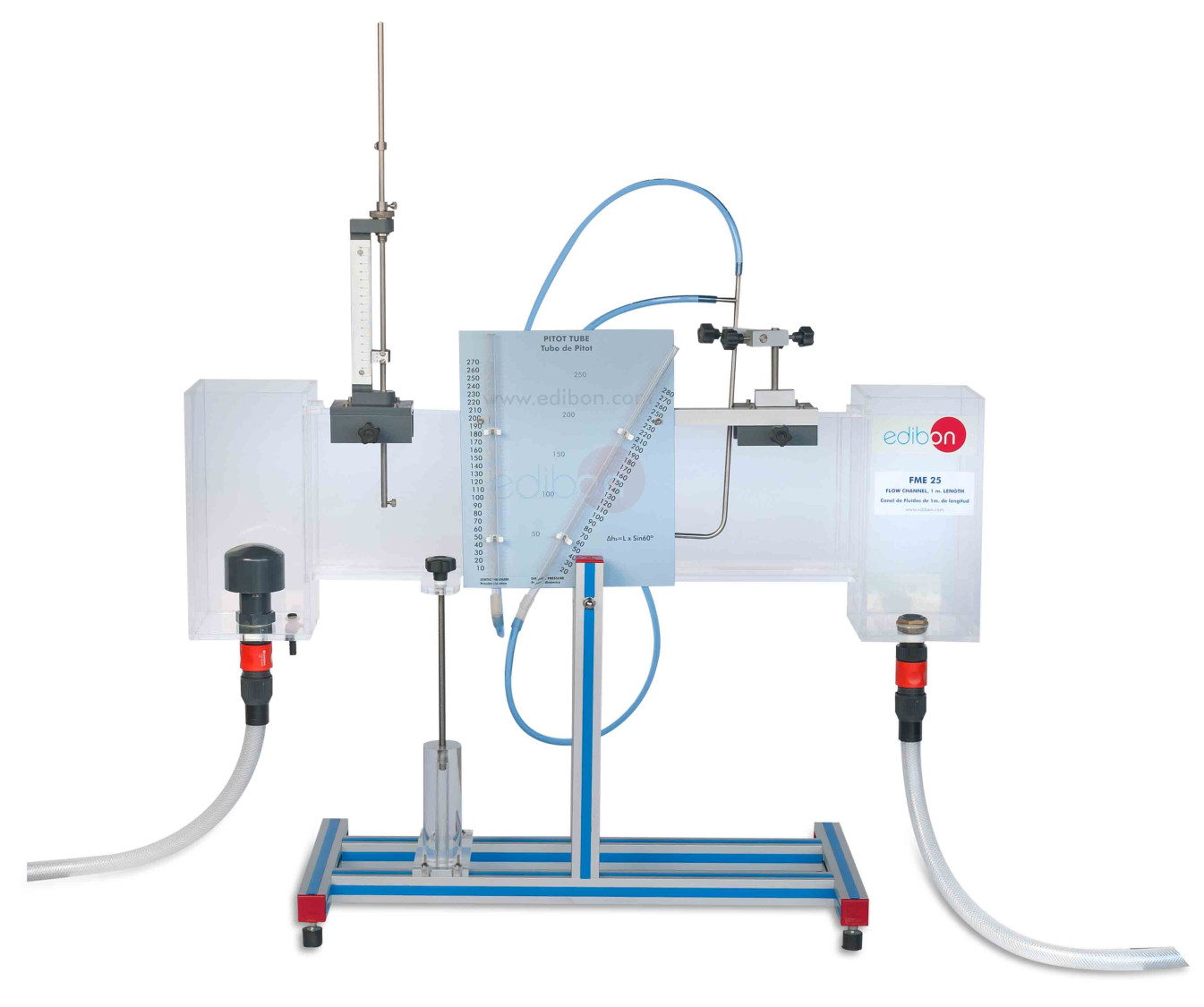

The Flow Channel, length: 1 m, "FME25", designed by EDIBON, allows to studying the behaviour of water flowing through a one-meter channel.

It basically consists of a channel of rectangular cross section with transparent walls, through which water flows.

It has a mechanism that allows to vary the shape of the channel and it can directly be placed on the Hydraulics Bench.

Water is taken from the tank of the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B) by means of a pump and, through the pipe, it is driven to the tank, where there is a settling of the flow. After this, the water circulates through the channel and returns to the storage tank. Therefore, the closed circuit is completed.

There is a mechanism that allows to adjust the slope of the channel.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Water head and velocity measurement along the channel.
  2. Flow measurement with sharp-crested weirs.
  3. Flow measurement with changes in the channel section: broad-crested weirs.
  4. Flow on overflow weirs.
  5. Flow control using floodgates.
  6. Level control using siphons.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Study of the fundamental aspects of fluid flow.
  2. Measurement of water level and velocity along the channel.
  3. Measurement of flow rate using a Pitot tube.
  4. Determination of the static and total pressure.
  5. Use of hydraulic structures to control level.
  6. Study of the effects of gradual and sudden changes in cross section (energy losses).
  7. Use of a contraction to measure flow.
  8. Use of hydraulic structures to measure flow in an open channel.
  9. Study of flow patterns associated with flow around hydraulic structures.
  10. Comparison between the theoretical and experimental flow.
