MEMT-3 Dynamische Reibung eines Bolzens auf einer Scheibe

7.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG) 14.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG)
DYNAMIC FRICTION OF A PIN ON A DISC - MEMT-3

INNOVATIVE SYSTEME

The Dynamic Friction of a Pin on a Disc unit, "MEMT-3", allows to study the friction forces between several vertical friction pins of different materials and a rotating friction disc.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

This unit allows to study the friction forces between several vertical friction pins of different materials and a rotating friction disc.

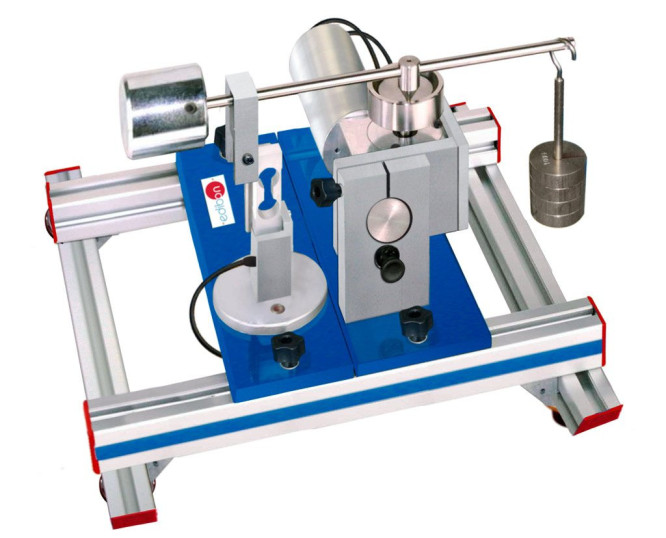

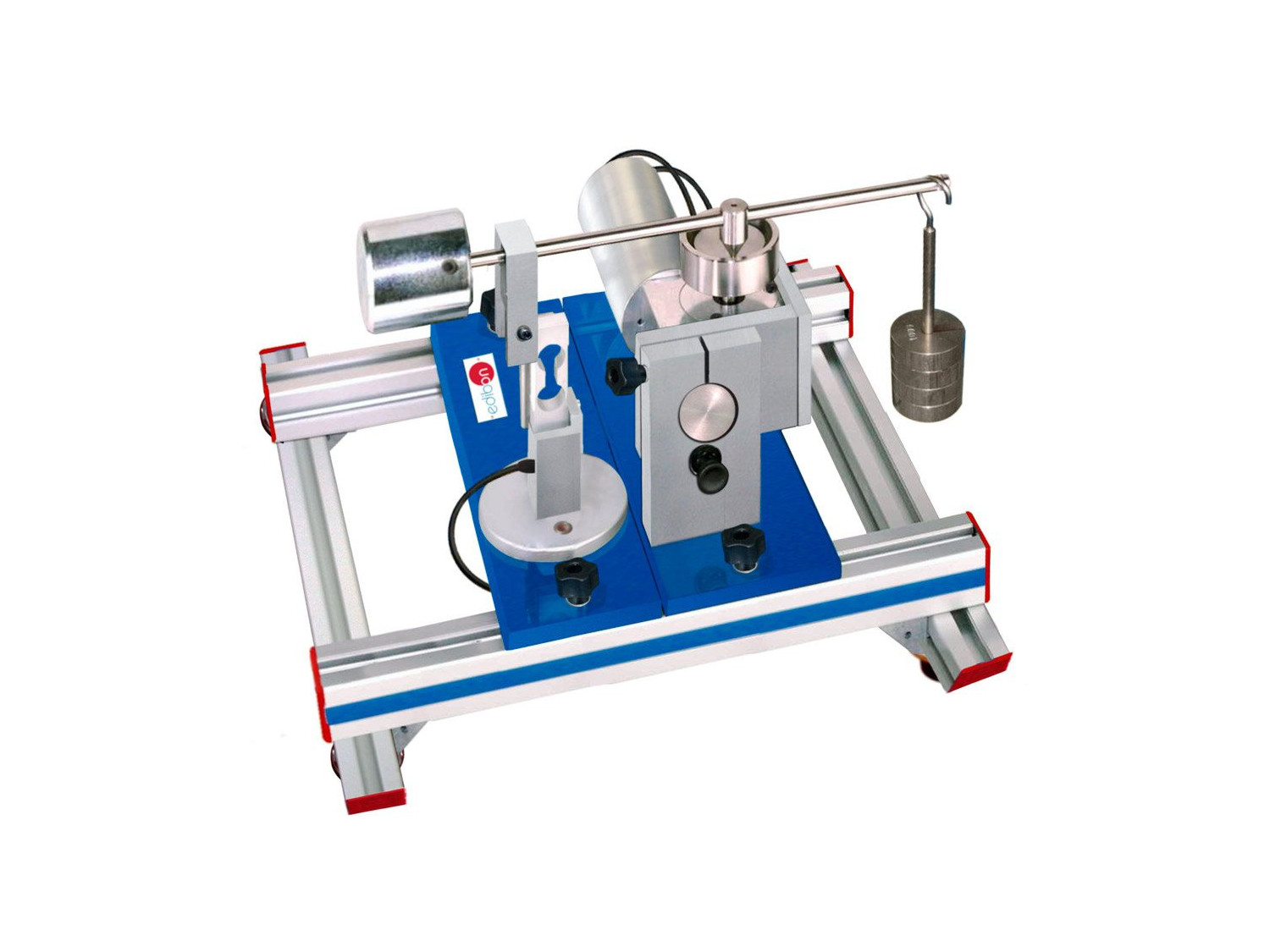

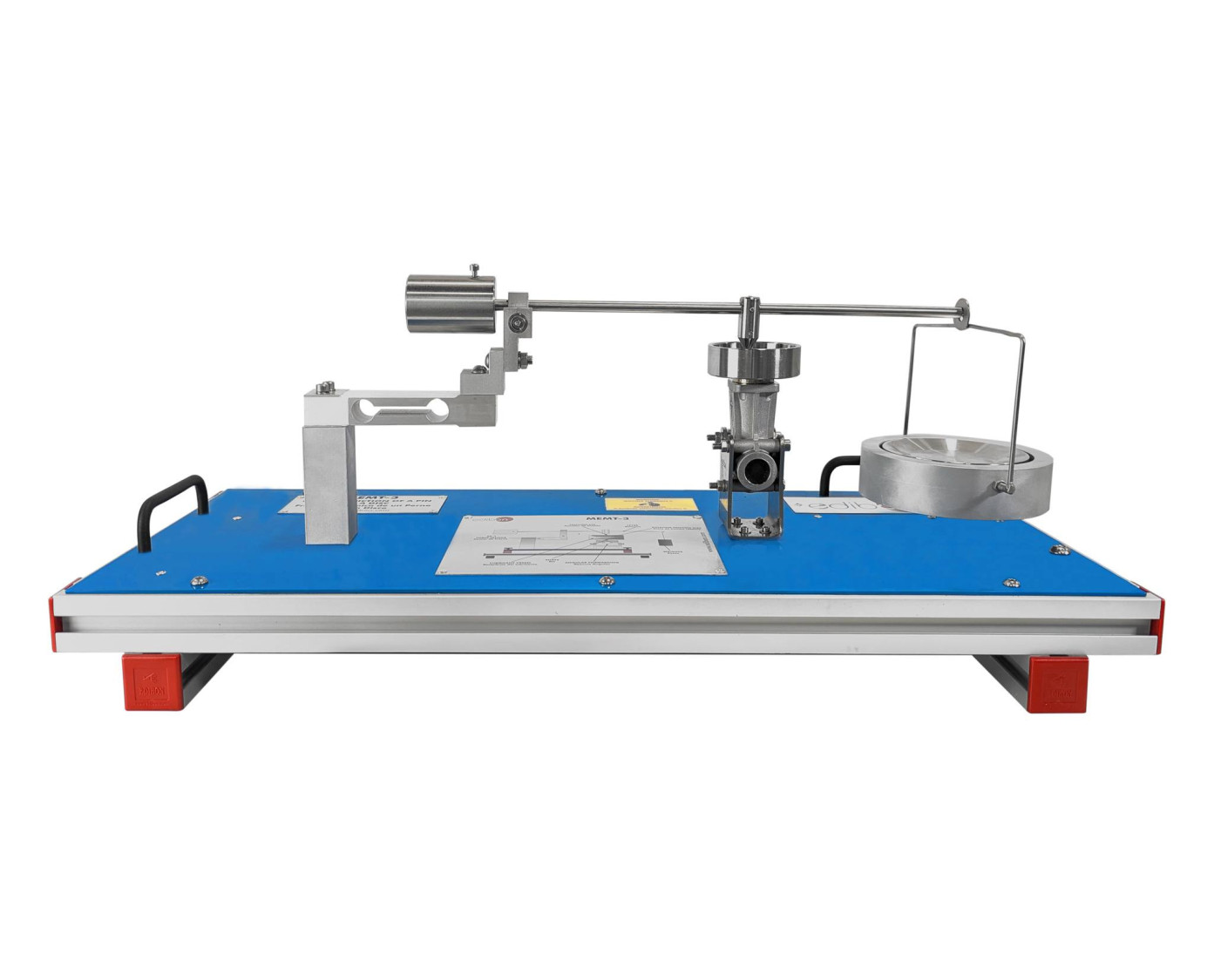

The end of each vertical pin is made of a different material and rubs against the rotating steel disc. The speed of the rotating disc can be adjusted. The contact pressure between the vertical pin and the rotating disc can be adjusted with a lever and a set of weights. The disc is enclosed in an open vessel that can be filled with different lubricants. A force sensor measures the friction forces as function of the pairs of friction materials, the speed of the rotating disc, the load and the lubrication conditions.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Effect of bolt material on the coefficient of friction.
  2. Effect of normal load on dynamic friction.
  3. Effect of sliding speed.
  4. Study of bolt wear due to relative motion.
  5. Investigation of friction forces with different lubricants.
