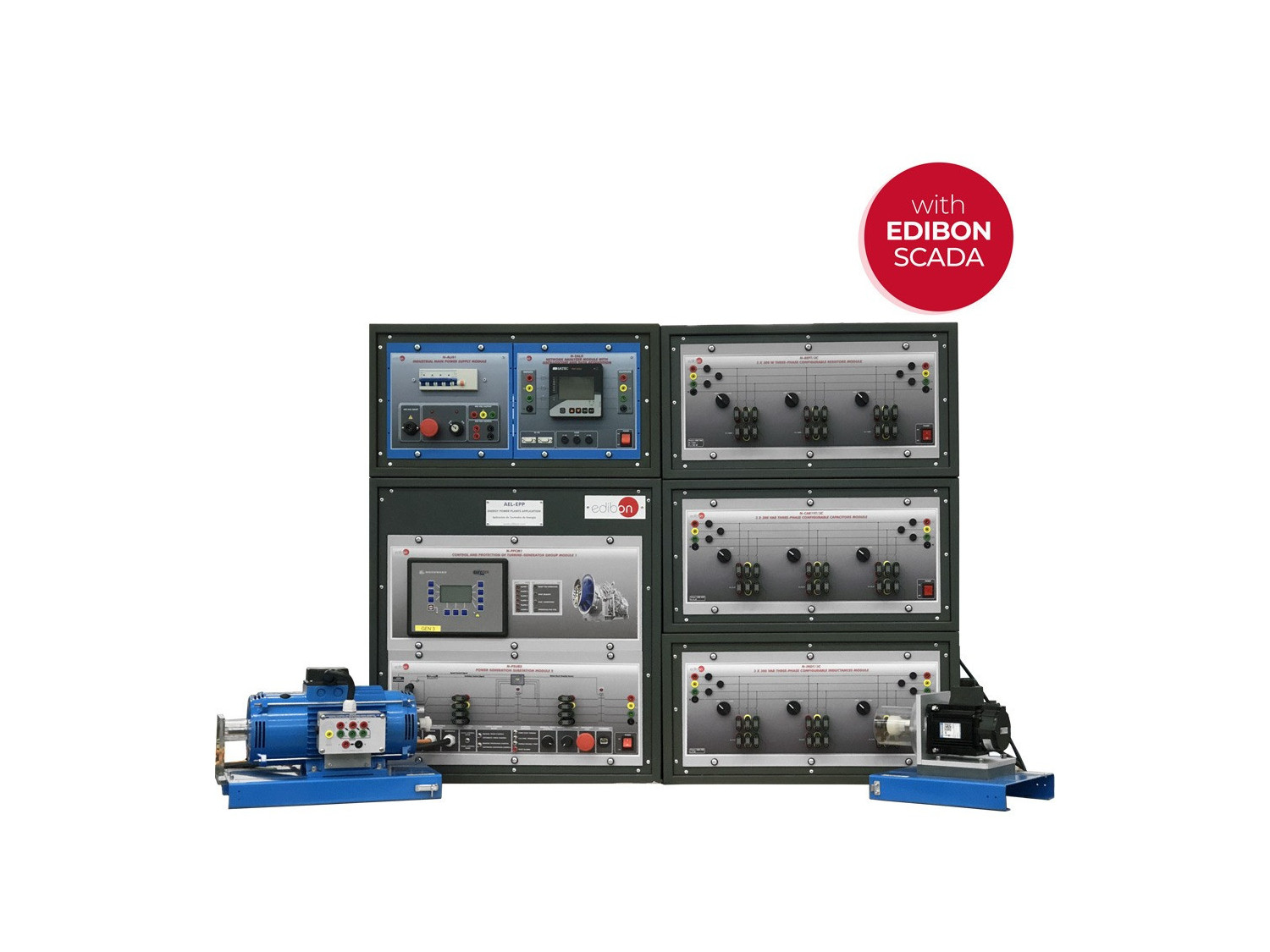

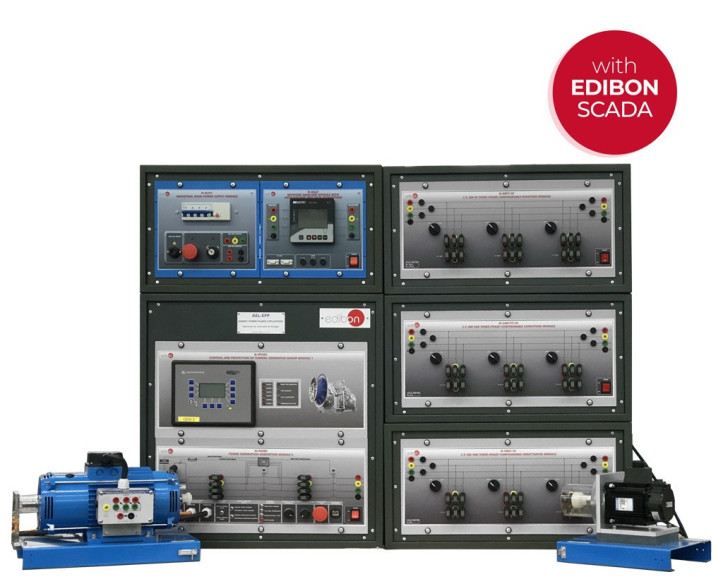

The Energy Power Plants Application, "AEL-EPP", has been designed by EDIBON for the study of the basic principles of operation of power plants as well as of the substations in charge of receiving the energy produced by them.

Allgemeine Beschreibung anzeigen

ÄHNLICHE NEUIGKEITEN

ALLGEMEINE BESCHREIBUNG

The Energy Power Plants Application, "AEL-EPP", has been designed by EDIBON for the study of the basic principles of operation of power plants as well as of the substations in charge of receiving the energy produced by them.

The "AEL-EPP" application offers different training levels that will provide the user with the essential knowledge and skills about the fundamental control, operation and functioning principles of power plants with their respective electricity generation systems. Some of the power plants simulators which are recommended with this application are, for example, the Biomass Energy Power Plant Simulator, the Wind Energy Power Plant Simulator and the Geothermal Energy Power Plant Simulator. These simulators are based on a series of mathematical models that will provide the student with the most important concepts about power plants. Moreover, for a better understanding, this application includes a series of modules, devices and electric machines that will react according to the functioning of each plant.

The "AEL-EPP" application includes a specific manual where the aspects regarding high voltage power systems are explained. Its theme covers fundamental aspects such as the synchronous generators control and regulation, the electrical supply quality, frequency regulation for the balance among energy generation and demand etc.

On the other hand, it is provided a series of modules and units for the implementation of all the theoretical concepts previously studied in the manual.

One of the main advantages of this application is its modular character and its flexibility to be expanded in the future. This allows fulfilling different configurations of real power systems.

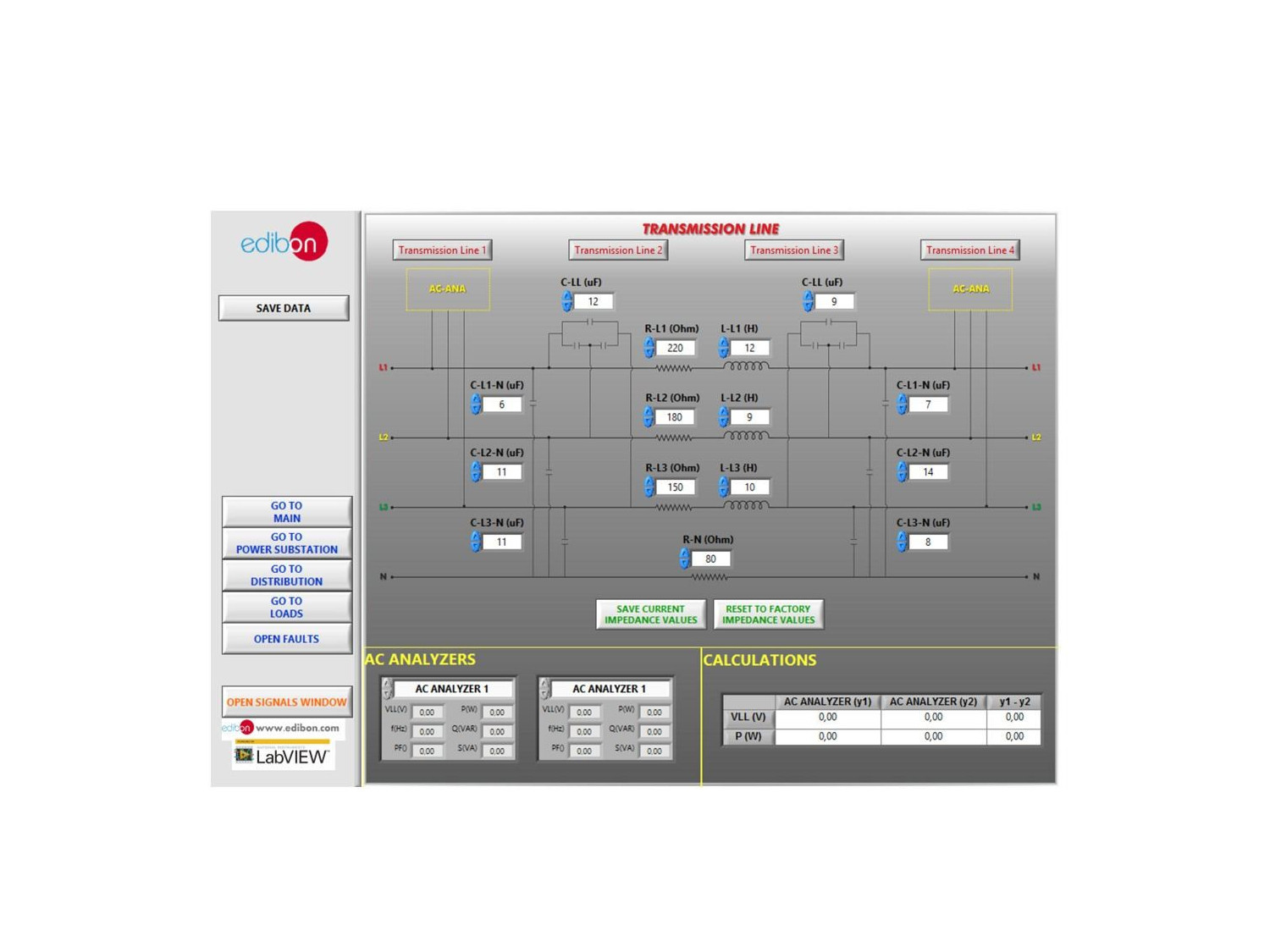

The "AEL-EPP" application includes a control and data acquisition software, SCADA, which will allow the user to remotely control the power system. The SCADA software allows performing the most significant operations carried out in real power systems, such as turbine and generator speed and voltage control, generator coupling maneuvers with the grid (synchronization), isolated operations with the synchronous generator, voltage and current measurements at different points of the power system, visualization of power curves, etc.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Operations with electrical generator and governor:

  1. Generator island grid operations.
  2. Generator parallel grid operations.
  3. Generator manual voltage regulation operations.
  4. Generator manual frequency regulation operations.
  5. Study of synchronous generator power factor regulation.
  6. Studying of turbine regulation (frequency control) in island mode.
  7. Study of turbine regulation (frequency control) in parallel grid mode.
  8. Study of excitation/voltage regulation in island mode.
  9. Study of excitation/voltage regulation in parallel grid mode.
  10. Analysis of generator active and reactive power control.
  11. Automatic control of active power.
  12. Automatic control of reactive power.

Particular practical exercises related to power plants:

  • Wind Powered Power Plants Simulator.
  1. Demonstration the working principles of mechanism of wind powered power plant simulator.
  2. Manual wind flow control.
  • Biomass Power Plants Simulator.
  1. Demonstration the working principles of mechanism of biomass power plant simulator.
  2. Manual biomass flow control.
  • Geothermal Power Plants Simulator.
  1. Demonstration the working principles of mechanism of geothermal power plant simulator.
  2. Manual water flow control.
  • Heliothermic Solar Power Plant Simulator.
  1. Demonstration the working principles of mechanism of heliothermic solar power plant simulator.
  2. Solar irradiation manual control.
  • Hydroelectric Power Plants Simulator.
  1. Demonstration of the operation principles of mechanism of hydroelectric power plants simulator.
  2. Manual control of the turbine components.
  • Gas Power Plants Simulator.
  1. Demonstration of the operation principles of gas power plants mechanisms.
  2. Manual control of the fuel mass flux in the combustion chamber.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Visualization of all the sensors values used in the AEL-EPP unit process.
  8. Several other exercises can be done and designed by the user.
