TIPLB Trocador de Calor de Placas para TICB

SISTEMAS INOVADORES

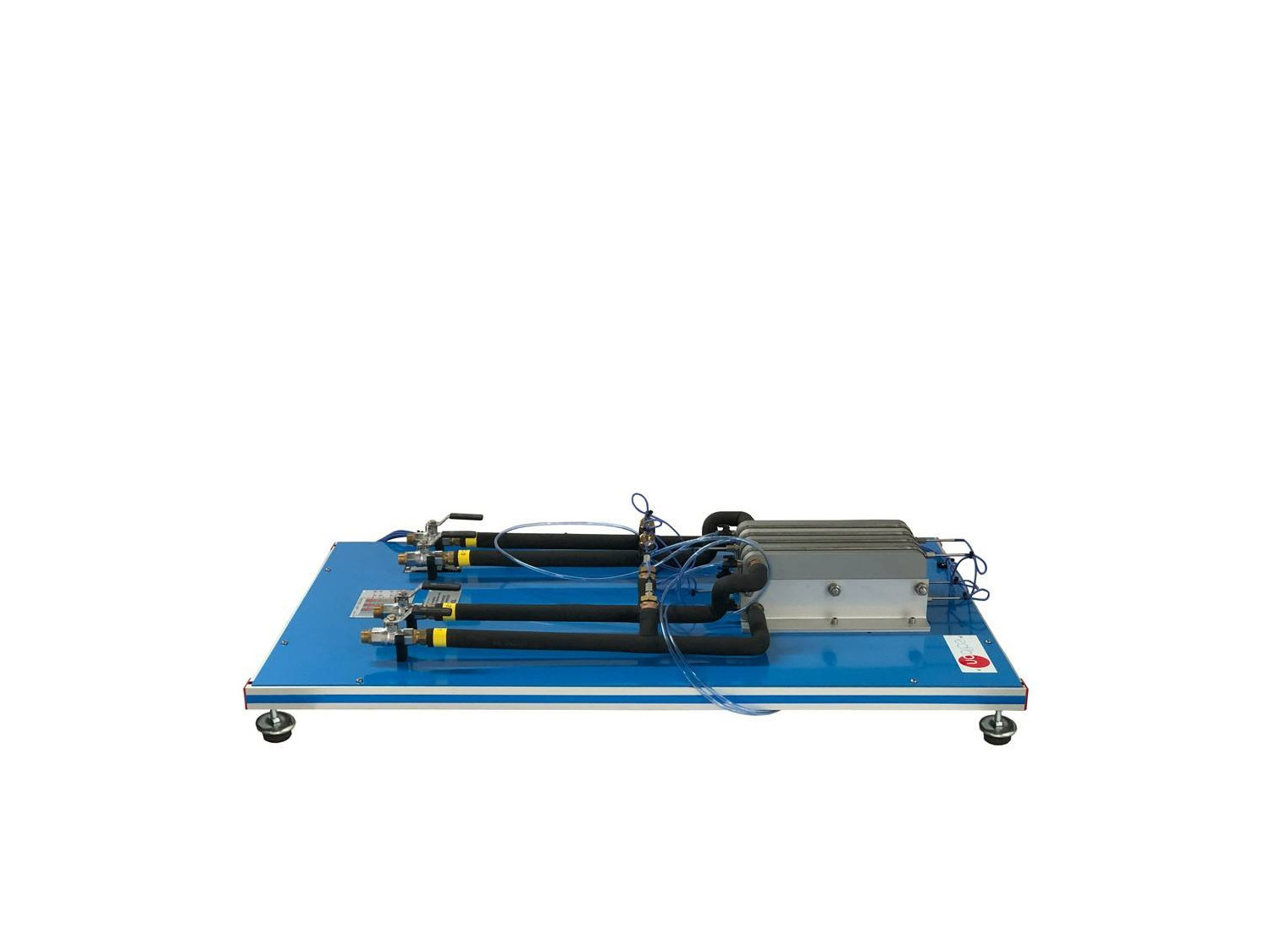

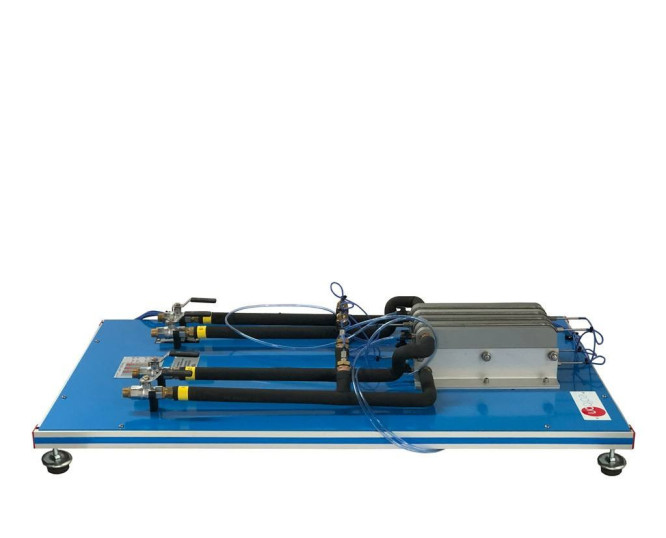

It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

Descrição Geral

It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Global energy balance in the heat exchanger and the study of losses.
Exchanger effectiveness determination. NTU Method.
Study of the heat transfer under counter-current and co-current flow conditions.
Flow influence on the heat transfer. Reynolds number calculation.
