TICTB Trocador de Calor de Casco e Tubo para TICB

SHELL & TUBE HEAT EXCHANGER FOR TICB - TICTB

SISTEMAS INOVADORES

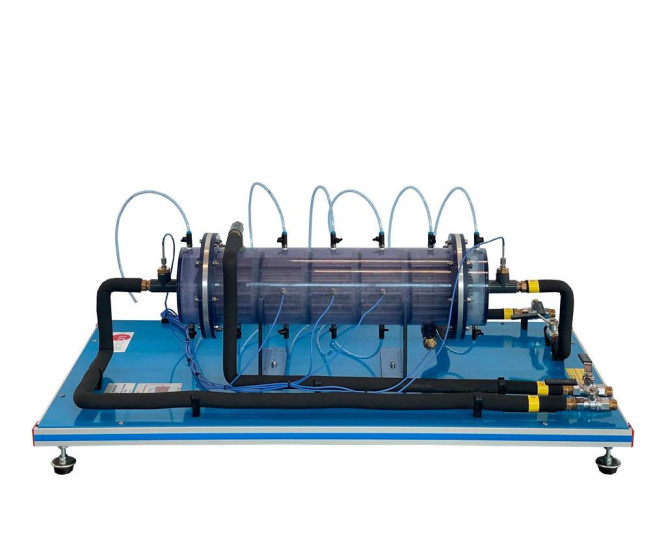

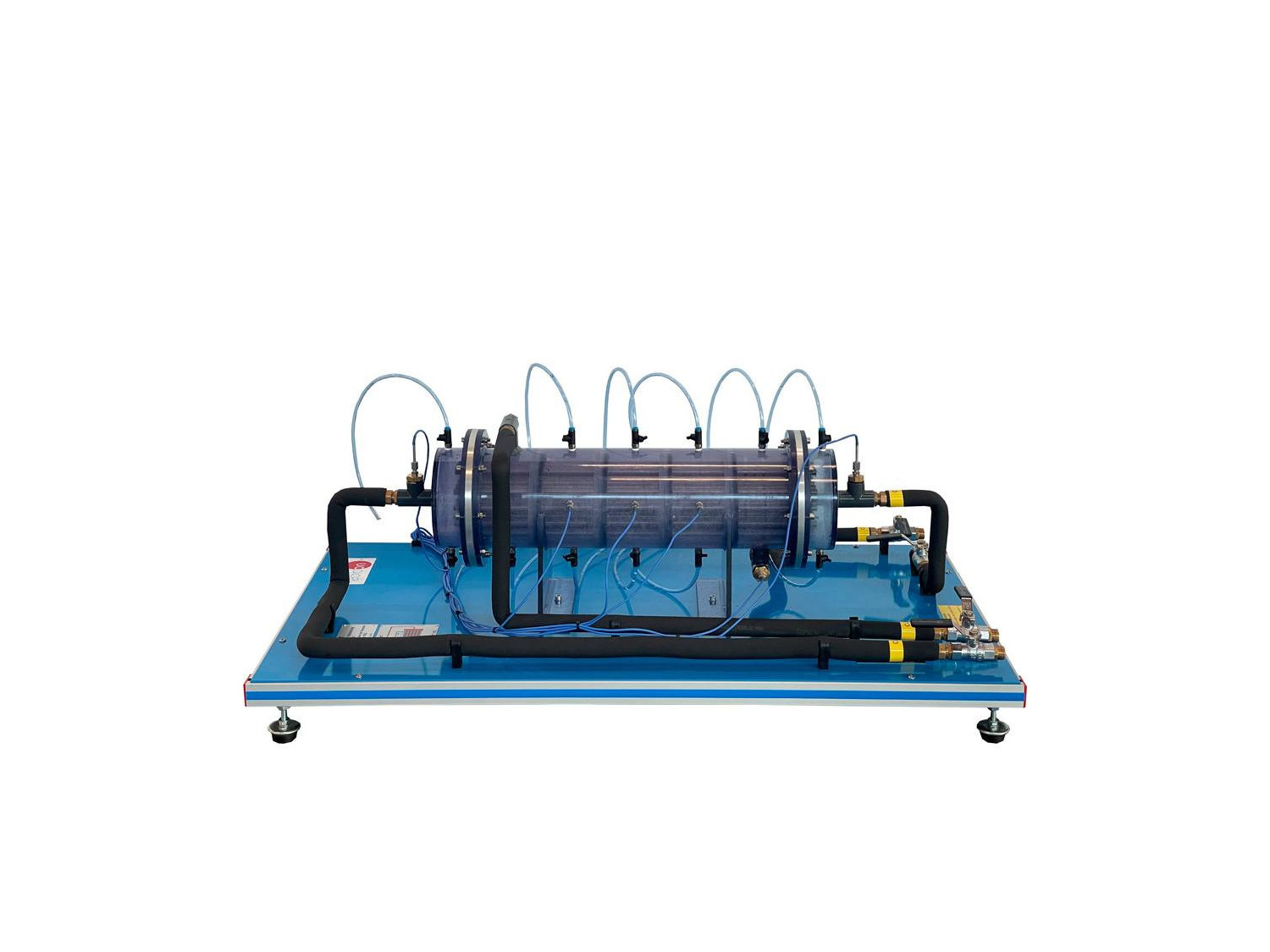

It consists of a series of tubes inside the heat exchanger where hot water flows. The cooling water flows through the space between the inner tubes and the shell.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

Descrição Geral

It consists of a series of tubes inside the heat exchanger where hot water flows. The cooling water flows through the space between the inner tubes and the shell.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Global energy balance in the heat exchanger and the study of losses.
Exchanger effectiveness determination. NTU Method.
Study of the heat transfer under counter-current and co-current flow conditions.
Flow influence on the heat transfer. Reynolds number calculation.
