8.1.8.- CONDUÇÕES HIDRÁULICAS

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...

The Energy Losses in Bends unit, "FME05", designed by EDIBON allows to measure and compare the head losses produced by different singular elements: bends, section changes and valves, as well as to study the influence of the flow rate on the value...

With the Energy Losses in Pipes, "FME07", designed by EDIBON, the user will be able to measure the head losses generated in a pipeline for different flow rates in both laminar and turbulent regimes.The unit consists of the following elements, used...

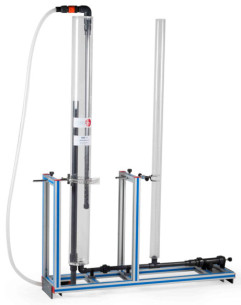

With the Water Hammer unit, "FME15", designed by EDIBON, we can demonstrate the effects of the instantaneous or gradual variation of the velocity of a fluid.The water hammer phenomenon, which appears as a consequence of a rapid change in the...

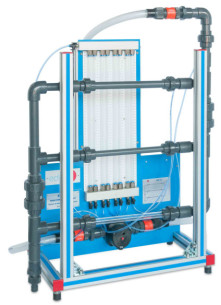

The Basic Pipe Network Unit, "FME23", designed by EDIBON, allows the study of pressures and flows created by interconnected pipes, i.e. in a network.The objective of this unit is to simulate the problems that could originate in pipe networks, with...

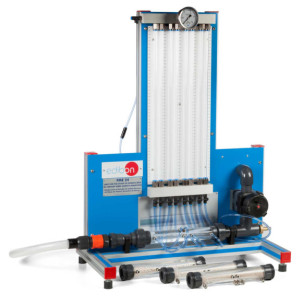

The Unit for the Study of Porous Beds in Venturi Tubes (Darcy´s Equation), "FME24", designed by EDIBON, for the study of porous beds in Venturi tubes (Darcy's Equation), allowing the complete and detailed understanding of this equation.The unit is...

BDAS is designed to monitor the measurements of each unit type "FME" from a computer (PC).This system can monitor any unit, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...
