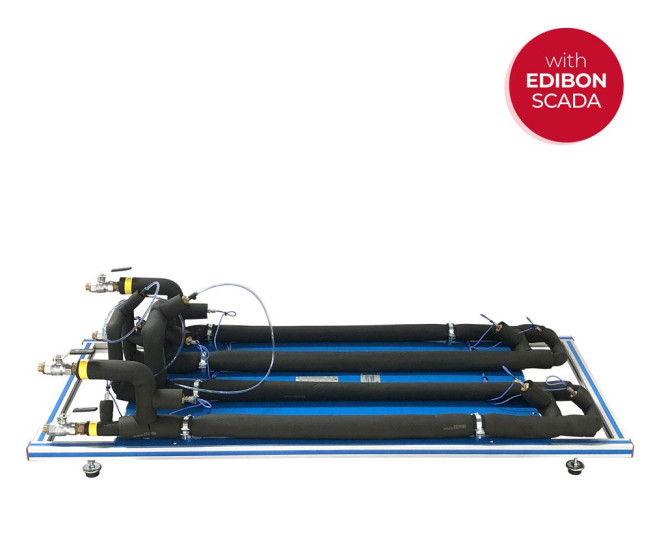

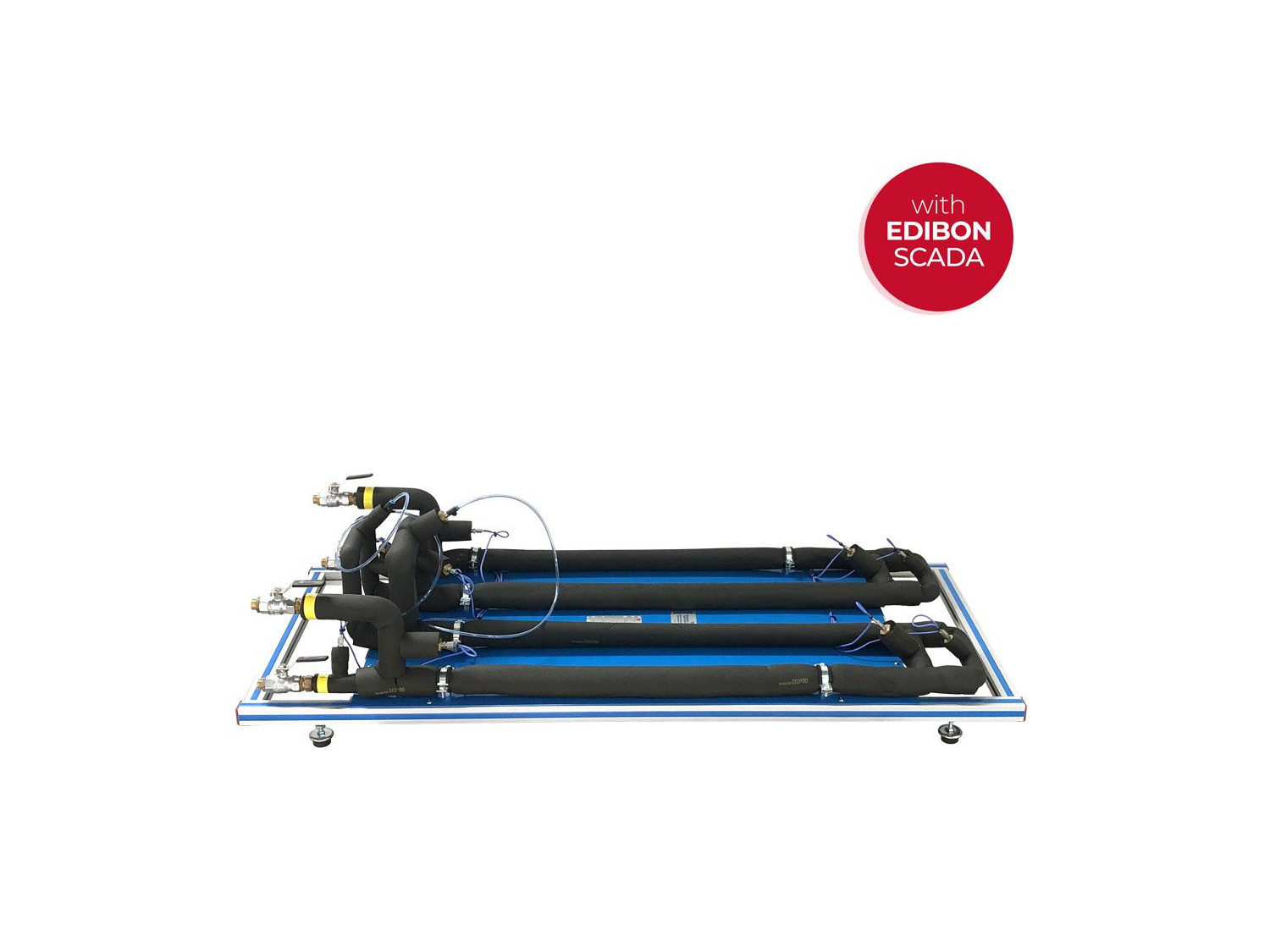

TITCA Trocador de Calor de Tubos Concêntricos Estendidos para TICC
SISTEMAS INOVADORES
Extended Concentric Tube Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water flowing through an internal tube and cold water flowing through the annular area between the internal and the external tubes.
NOTÍCIAS RELACIONADAS
Descrição Geral
Extended Concentric Tube Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water flowing through an internal tube and cold water flowing through the annular area between the internal and the external tubes.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Global energy balance in the heat exchanger and the study of losses.
- Exchanger effectiveness determination. NTU Method.
- Study of the heat transfer under counter-current and co-current flow conditions.
- Flow influence on the heat transfer. Reynolds number calculation.
- Control system: Temperature sensors calibration.
- Control system: Flow sensors calibration.
EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE
- Study of the hysteresis of the flow sensor.
EQUIPAMENTOS SIMILARES DISPONÍVEIS
9.7.- TROCADORES DE CALOR

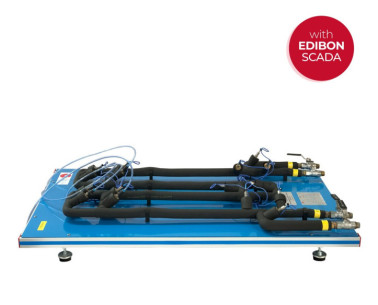

TIFT
Turbulent Flow Heat Exchanger for TICC: Let us study the heat transfer between hot water that circulates through an internal tube and cold water that flows through the annular zone between the internal and the external tube.
9.7.- TROCADORES DE CALOR

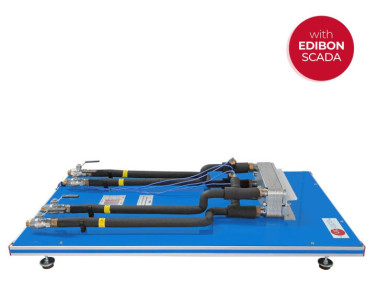

TIPL
Trocador de Calor de Placas para TICC
Plate Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.
9.7.- TROCADORES DE CALOR

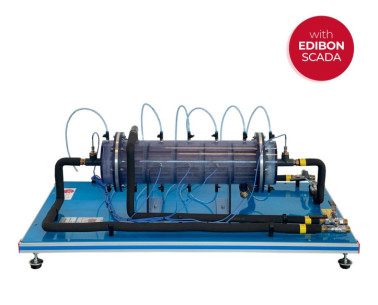

TICT
Trocador de Calor de Tubo e Carcaça para TICC
Shell and Tube Heat Exchanger for TICC: It consists of a series of tubes inside the heat exchanger where hot water flows. The cooling water flows through the space between the inner tubes and the shell.
9.7.- TROCADORES DE CALOR

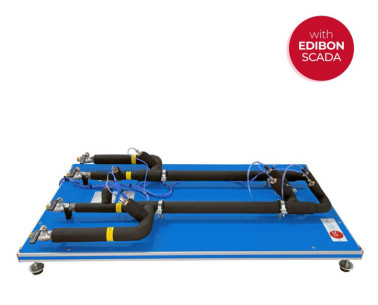

TITC
Trocador de Calor de Tubos Concêntricos para TICC
Concentric Tube Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water flowing through an internal tube and cold water flowing through the annular area between the internal and the external tubes.
9.7.- TROCADORES DE CALOR

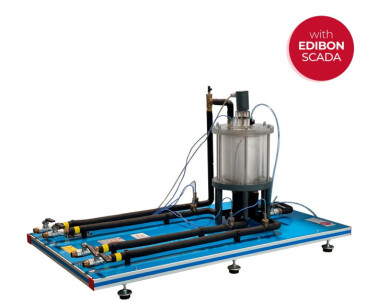

TIVE
Trocador de Calor Encamisado para TICC
Jacketed Vessel Heat Exchanger for TICC: Allows the study of heat transfer between hot water flowing through a jacket and thecold water contained in a vessel.
9.7.- TROCADORES DE CALOR
TIVS
Trocador de Calor por Serpentina para TICC
Coil Vessel Heat Exchanger for TICC: Allows the study of heat transfer between hot water flowing through a coil and cold water contained in the vessel.
9.7.- TROCADORES DE CALOR

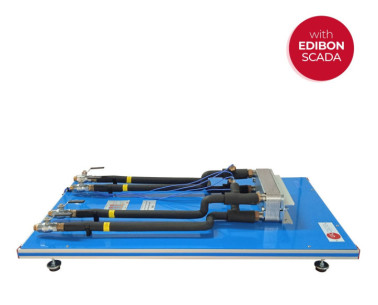

TIPLA
Trocador de Calor de Placas Estendido para TICC
Extended Plate Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.
9.7.- TROCADORES DE CALOR
TICF
Trocador de Calor de Fluxos Cruzados para TICC
Cross Flow Heat Exchanger for TICC: Designed to study heat transfer between two fluids in cross flow configuration. Hot water flow coming from the base unit enters and leaves a radiator perpendicular to an air current, which is generated by a fan.
EQUIPAMENTOS COMPLEMENTARES
9.7.- TROCADORES DE CALOR

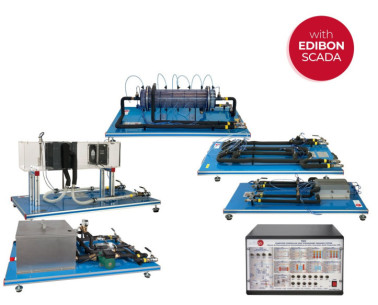

TICC
Sistema de Treinamento de Trocadores de Calor, Controlado por Computador (PC)
Heat exchangers are widely used in refrigeration, air conditioning, heating, energy generation, chemical processing, etc. They have many applications in engineering and, as a consequence, there are many models adapted to each application to obtain...
9.7.- TROCADORES DE CALOR

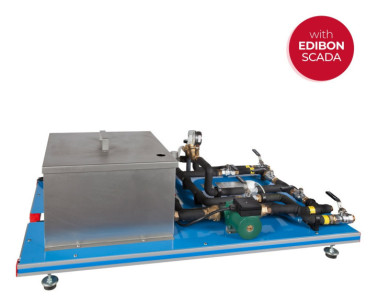

TIUS
