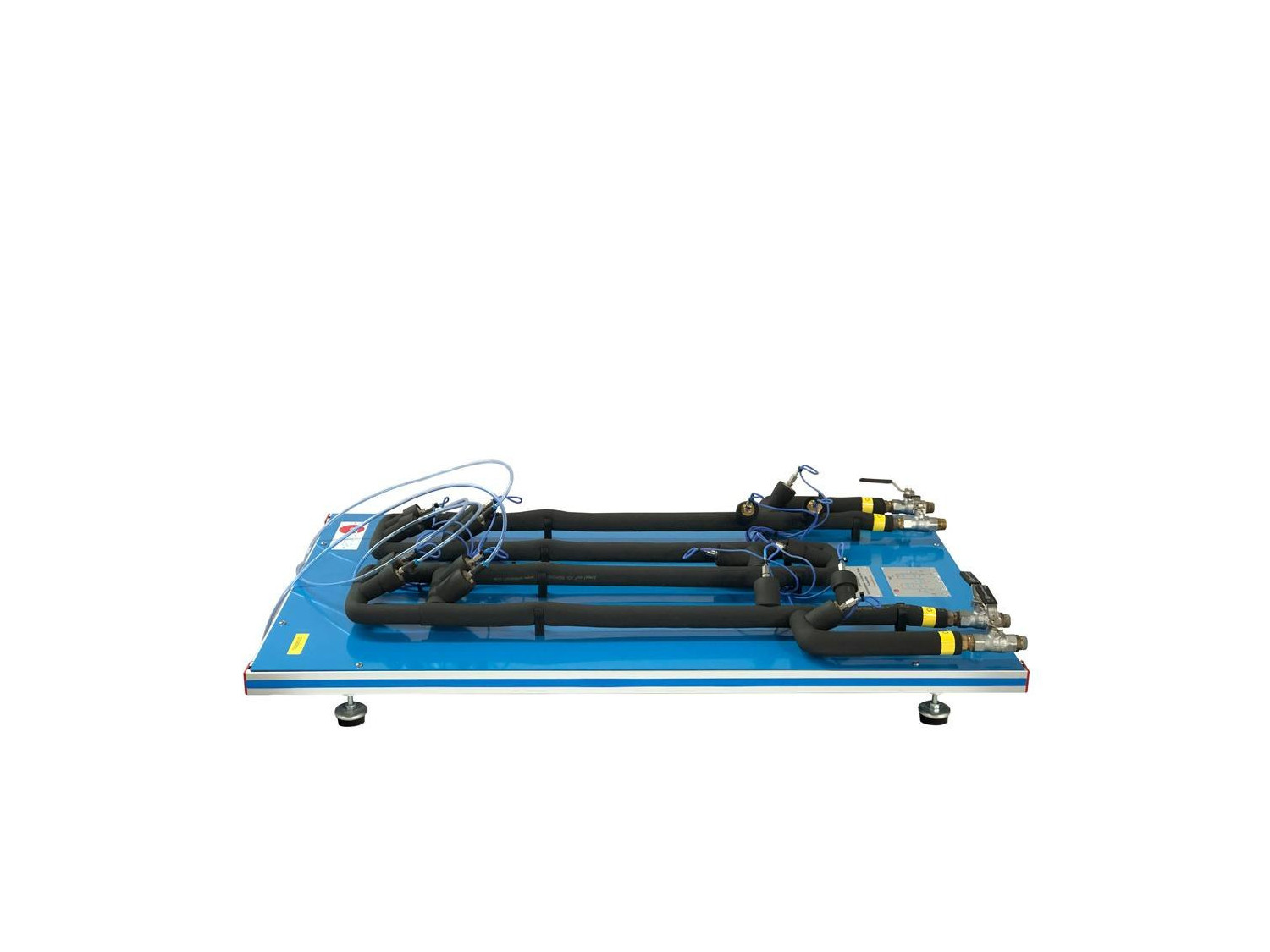

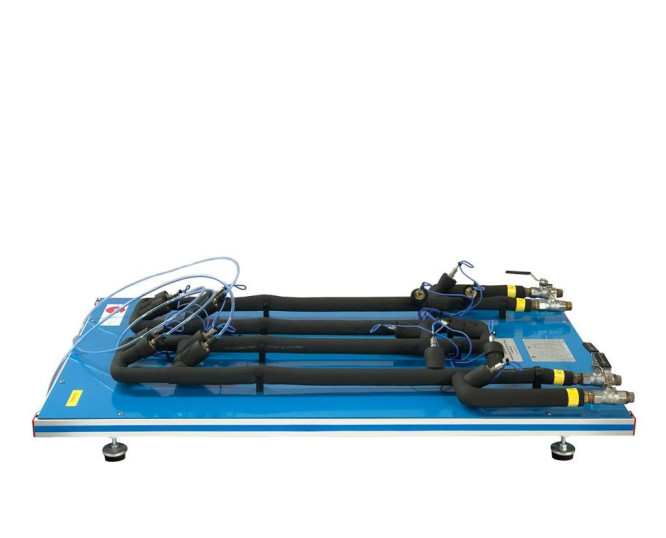

TIFTB Trocador de Calor de Fluxos Turbulentos para TICB

9.7.- TROCADORES DE CALOR
TURBULENT FLOW HEAT EXCHANGER FOR TICB - TIFTB

SISTEMAS INOVADORES

Let us study the heat transfer between hot water that circulates through an internal tube and cold water that flows through the annular zone between the internal and the external tube.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

Descrição Geral

Let us study the heat transfer between hot water that circulates through an internal tube and cold water that flows through the annular zone between the internal and the external tube.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Global energy balance in the heat exchanger and losses study.
  2. Determination of the exchanger effectiveness. NTU Method.
  3. Study of the heat transfer in counter-current and co-current flow conditions.
  4. Flow influence on heat transfer. Reynolds number calculation.
  5. Obtaining of the correlation that relates Nusselt number with Reynolds number and Prandtl number.
  6. Obtaining of the heat transfer coefficients by convection.
