TICFB Trocador de Calor de Fluxos Cruzados para TICB

CROSS FLOW HEAT EXCHANGER FOR TICB - TICFB

SISTEMAS INOVADORES

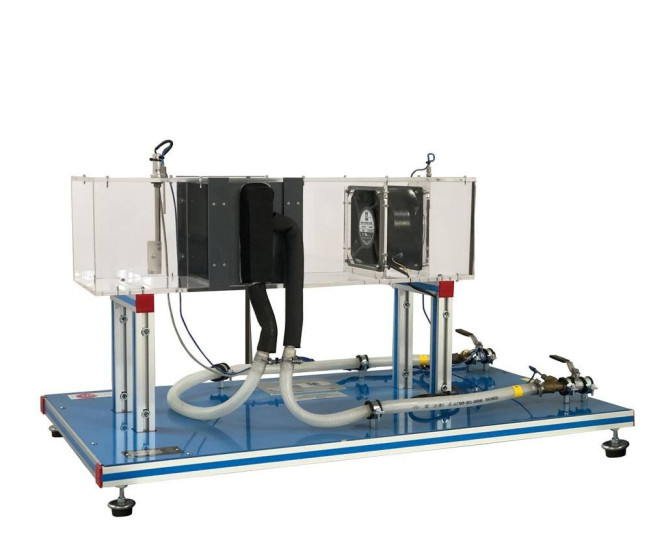

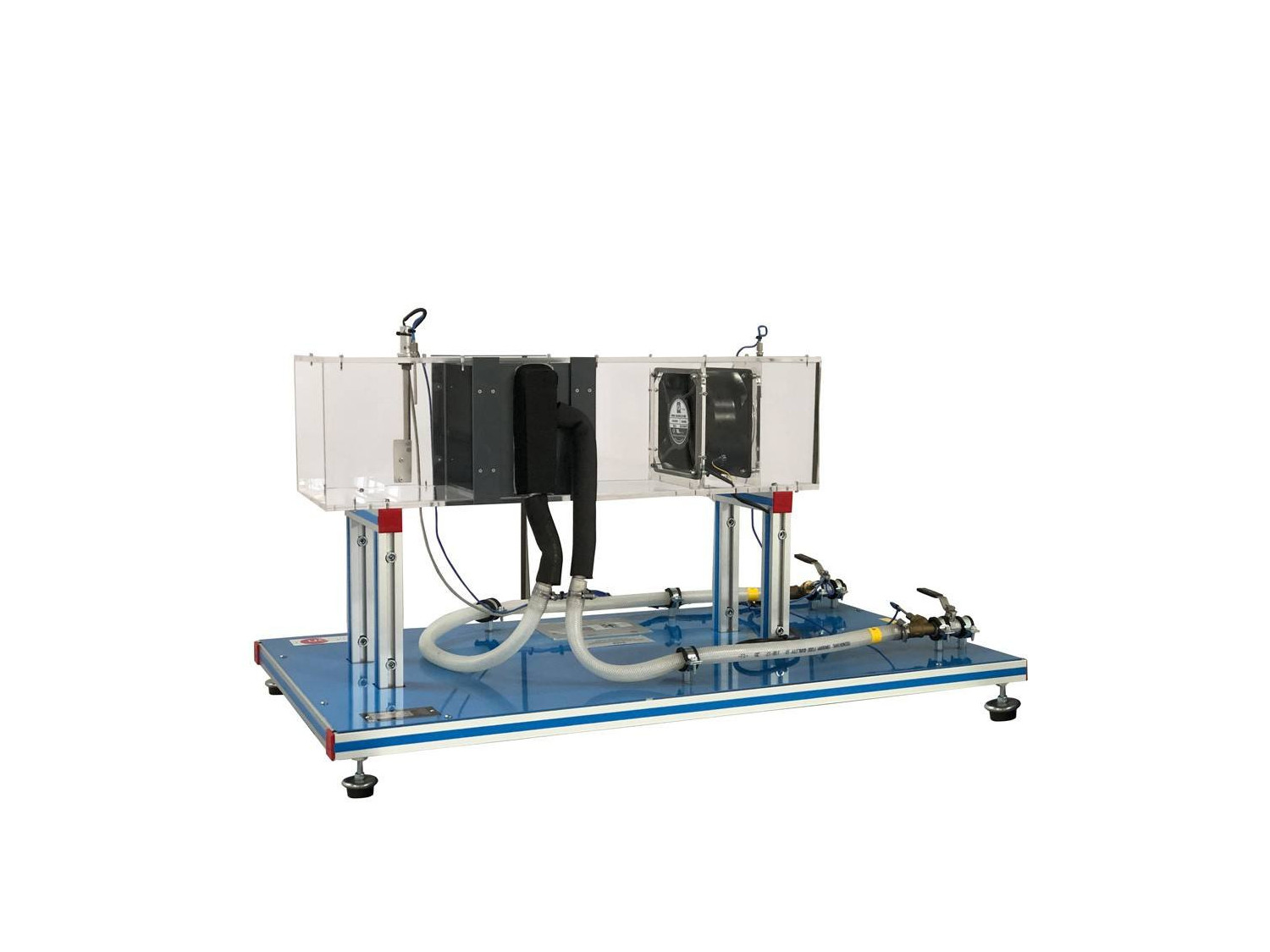

Designed to study heat transfer between two fluids in cross flow configuration. Hot water flow coming from the base unit enters and leaves a radiator perpendicular to an air current, which is generated by a fan.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Descrição Geral

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Introduction to the concept of psychometric properties.
Effect of temperature differential on the heat transfer coefficient.
Familiarization with cross flow heat exchanger.
Overall energy balance in the heat exchanger and study of losses.
Determination of the exchanger effectiveness (NTU method).
Influence of air and water flow on the heat transfer. Reynolds number calculation.
