FREE AND FORCED CONVECTION HEAT TRANSFER MODULE FOR TSTCB - TXC/FFB

SISTEMAS INOVADORES

The Free and Forced Convection Heat Transfer Unit for TSTCB, "TXC/FFB", enables the study of the performance of different heat exchangers by analyzing the heat transfer coefficients of each exchanger exposed to various air flow rates.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Ler mais

Descrição Geral

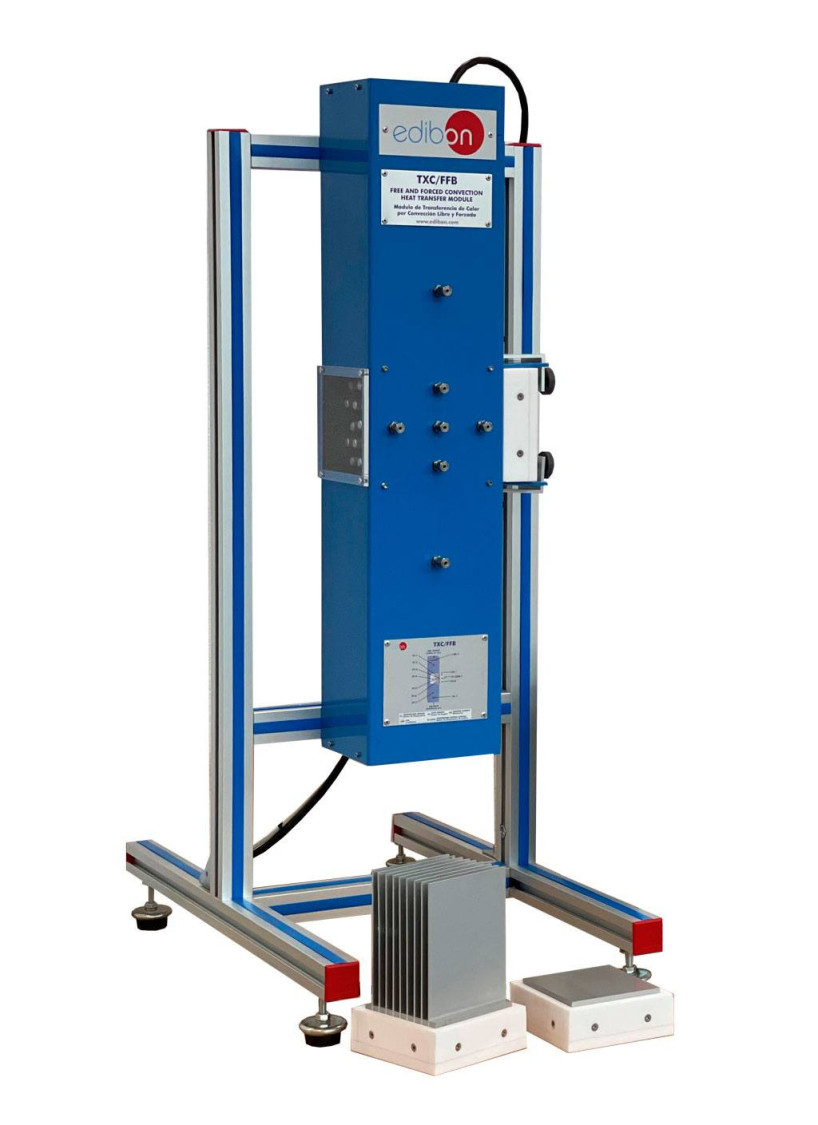

The Free and Forced Convection Heat Transfer Unit for TSTCB, "TXC/FFB", enables the study of the performance of different heat exchangers by analyzing the heat transfer coefficients of each exchanger exposed to various air flow rates.
